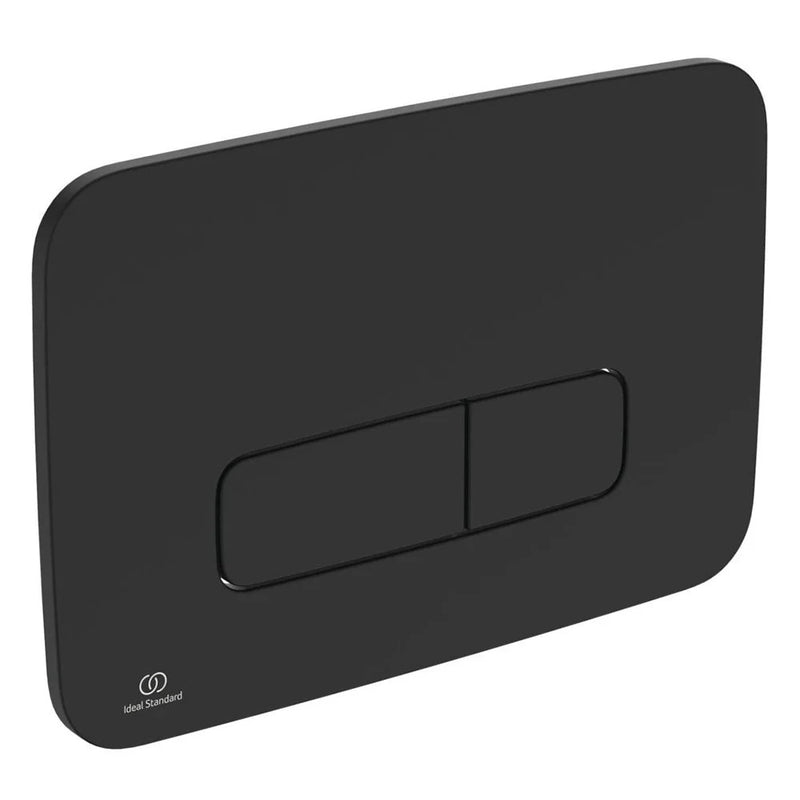

Ideal Standard Oleas M3 Matt Black Mechanical Dual Flush Plate

UK Stock
VAT Invoice
Trade Friendly
Genuine Brand
SKU: R0123A6
£71.29 £28.99 SAVE 59%
Add to Wishlist
Dispatch: Next working day
🎁

Loyalty Rewards

Earn points and redeem discounts

Sign up and earn 29 points with this purchase!

🎯 Earn 1.0 points per £1 spent
🎁 Redeem points for discounts
⭐ Unlock exclusive rewards
Join Loyalty Program

Already a member? Sign in here

Description

Ideal Standard Oleas M3 Mechanical Dual Flush Plate - Matt Black - R0123A6

Ideal Standard Oleas M3 Flush Plate - Matt Black Mechanical Dual Flush

A matt black dual flush plate from the Ideal Standard Oleas range designed by Studio Levien. Purely mechanical, 8.5mm deep and supplied with the mounting frame and rods needed to fit it to an Ideal Standard ProSys frame.

The Oleas M3 is the larger squared plate in the range, moulded in ABS and finished in A6 matt black with a true matt surface. It measures 241mm wide by 165mm high and mounts front or top. Two spring-loaded buttons give both flush volumes at under 20N of pressure. Because this is a mechanical dual flush plate with no electronics inside, Ideal Standard confirm it still operates in the event of a power failure.

Is the Oleas M3 the right flush plate for your installation?

Two things decide it before finish ever comes into the conversation: your frame and where the plate needs to sit.

1

Check the frame and actuation type

This plate connects to Ideal Standard ProSys frames and cisterns using mechanical actuation.

  • Fits ProSys frames with mechanical actuation
  • Will not fit pneumatic or electronic actuation
  • Will not fit another brand of frame
2

Decide front or top mounting

Both are supported. Front mounting is the usual choice. Top mounting suits a cistern boxed into a low furniture run where reaching a front plate would be awkward. Settle this before the boxing goes in, as the activation rods are set to suit.

Comparing the mechanical dual flush plates we stock

Oleas M3 Matt Black · ABS · 241 x 165mm · 8.5mm projection (this product)

Oleas M2 Brushed Chrome · smaller at 234 x 154mm · view the M2

Septa Pro M1 Metal plate for higher-traffic washrooms · view the Septa Pro

All three are mechanical, so all three flush normally in a power cut. The choice comes down to size, finish and how much wear the washroom sees.

Flush plates are not universal. A plate is matched to its frame and cistern, so confirm you have an Ideal Standard ProSys mechanical system before ordering. If you are not sure which frame is behind the wall, send us a photo and we will check it for you.

Technical Details

General Brand Ideal Standard
Range Oleas (M3)
Product code R0123A6
EAN 3391500580381
Designer Studio Levien
Material & finish Material ABS plastic
Colour A6 Matt Black
Surface finish effect Matt
Shape Squared / geometric
PVD coating No
Dimensions Height 165mm
Width 241mm
Projection 8.5mm
Net weight 0.36kg
Operation Type of actuation Mechanic
Operating method Push button, spring-loaded
Flushing options 2 volumes
Actuation force Under 20N
Works in a power failure Yes, mechanically operated
Adjustable flush volume No
Anti-vandal No
Installation Mounting method Front / Top
Fixing method Fixing set
Mounting frame included Yes
Activation rods included Yes
Connector rods included Yes
Tool-free service Yes
Compatibility Frame system Ideal Standard ProSys mechanical actuation WC frames and cisterns
Sectors Education, Healthcare, Hotel, Leisure, Office, Residential
Other finishes in this range Chrome (AA), White (AC), Brushed Chrome (JG)
Ideal Standard Oleas M3 matt black dual flush plate R0123A6

A matt black finish that is matt all the way through

Moulded ABS finished in Ideal Standard's A6 matt black with a genuine matt surface effect rather than a low-gloss lacquer. The plate is a clean squared geometric shape measuring 241mm wide by 165mm high. At 8.5mm projection it sits close to the tile face.

Two flush volumes and it still works in a power cut

Both buttons are spring-loaded and need under 20N to press. There is no battery, sensor or mains supply anywhere in the assembly, so the flush is mechanically operated in the event of a power failure. Ideal Standard confirm this behaviour for the R0123 plate.

Close view of the Oleas M3 dual flush buttons and the divider between them
Oleas M3 flush plate shown in profile

Everything needed to fit it is in the box

The mounting frame, activation rods and connector rods are all supplied and servicing afterwards is tool-free. Mount it front or top depending on how the cistern is boxed in. Designed by Studio Levien for the Oleas range.

Downloads

Installation Guide
Fitting to a ProSys frame, front and top mounting

Frequently asked questions

Will the Oleas M3 fit my concealed cistern?
It is made for Ideal Standard ProSys mechanical actuation WC frames and concealed cisterns. If your frame is ProSys and uses mechanical rather than pneumatic or electronic actuation, this plate is the right fit. On another manufacturer's frame it will not connect. Check the frame first, because flush plates and frames are matched systems rather than universal parts.
What is the difference between the Oleas M3 and the M2?
Both are mechanical dual flush plates from the same range, so they operate identically. The M3 here is the larger plate at 241 x 165mm in matt black. The Oleas M2 in Brushed Chrome is the smaller plate at 234 x 154mm in a metallic finish. Both project 8.5mm and both take the same ProSys frames, so the choice is size and finish.
Does a dual flush plate work during a power cut?
This one does. Ideal Standard list the R0123 as mechanically operated in the event of a power failure. Two spring-loaded buttons act on the cistern valve with no battery, sensor or mains supply involved. Flush behaviour in a power cut is exactly the same as on any other day.
How deep does the flush plate sit on the wall?
The projection is 8.5mm, so it stands just proud of the finished tile face. Height is 165mm and width 241mm. It is worth measuring against your tile layout if you want the plate to land inside a whole tile rather than across a grout line.
Can it be mounted at the top of the cistern rather than the front?
Yes. The mounting method is front or top, which helps where the cistern is boxed into a low run of furniture and a front-facing plate would be awkward to reach. Decide before the boxing goes in, as the activation rods are set to suit.
Is anything else needed to install it?
The mounting frame, activation rods and connector rods are all included, so for a straightforward ProSys installation there is nothing further to buy and servicing later is tool-free. You will still need the frame and cistern themselves if you are starting from scratch, plus a compatible pan such as the RAK Moon rimless wall hung WC pan.
Can the flush volumes be adjusted at the plate?
No. The flush volumes are not adjustable at the plate itself. The two volumes are set by the valve inside the cistern, so any adjustment is made there rather than on the front. This is normal for mechanical dual flush plates.
Is the matt black finish hard to keep clean?
Wipe it with a soft damp cloth and dry it off. Avoid abrasive creams, bleach and limescale removers. On a true matt surface these leave shiny patches that cannot be buffed out. In a hard water area, drying after cleaning is what keeps the finish even.
Is this suitable for a commercial washroom?
It is specified for education, healthcare, hotel, leisure, office and residential settings. It is not an anti-vandal plate, so for a school washroom or another high-abuse public location a metal plate such as the Armitage Shanks Septa Pro M1 is the more robust choice.
