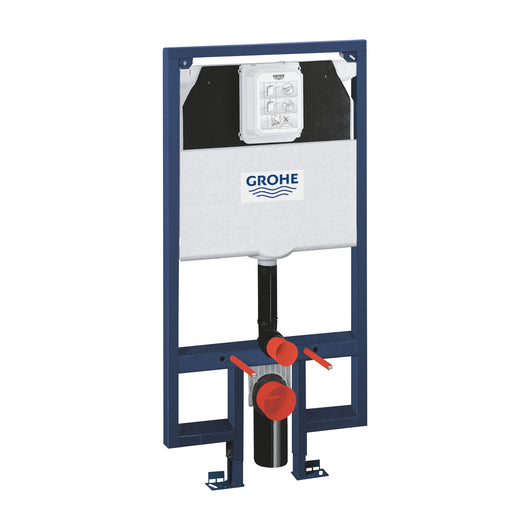

Grohe Rapid SL Installation Frame w/ 80mm Cistern - 38994000

Grohe Rapid SL Installation Frame w/ 80mm Cistern - 38994000

Product main features

• element width 0.62 m
• for small, narrow bathrooms
• for on-the-wall installations or studded walls
• powder coated steel frame, self-supporting
• with fixed connections
• TÜV approved
• 2 WC fixing bolts
• fixing device for ceramic
• distance of fixing bolts 180/230 mm
• PP outlet bend Ø 90 mm
• depth adjustable
• PP reducer Ø 90/110 mm
• inlet and outlet connecting set
• flushing cistern 80 mm, 6 - 9 l, containing following features:
• water supply from top or back
• water supply ½" and push fit flexible hose union
• including wall brackets 38 558 00M for on-the-wall installation
• for mounting of small flush plates please order revision shaft 40 949 000 (sold separately)
