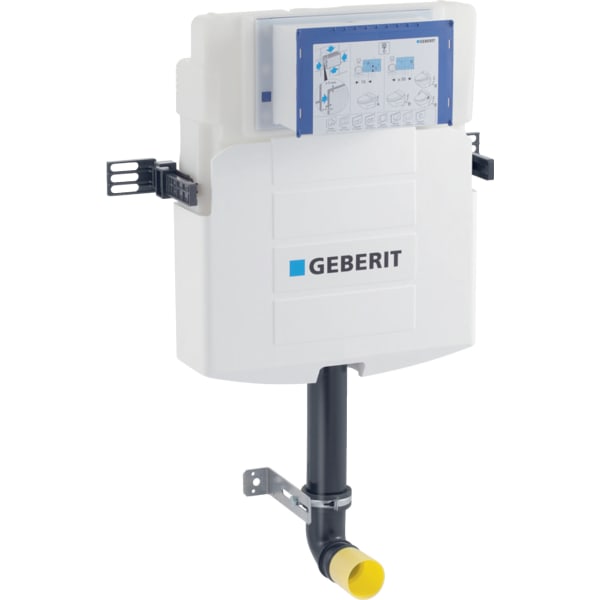

Geberit SIGMA Concealed Dual Flush Cistern 120mm - 109.309.00.5

Geberit SIGMA Concealed Dual Flush Cistern 120mm - 109.309.00.5

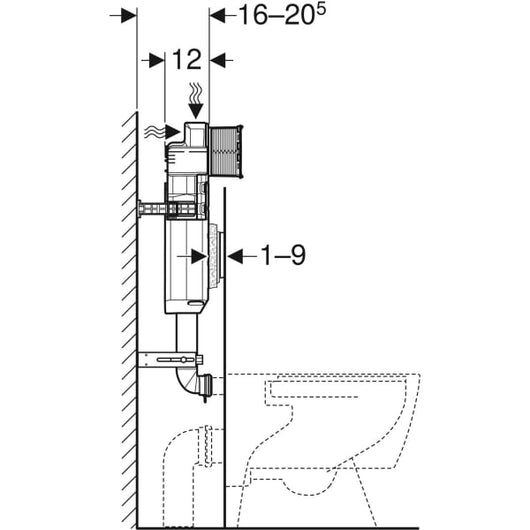

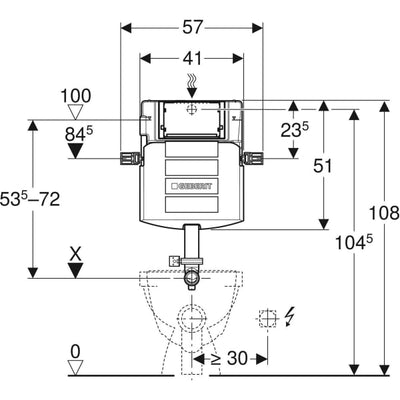

This Geberit Sigma Concealed Cistern 12cmD with a construction height of 108cm is suited for quick and easy installation in part-height or room-height prewalls or partition walls.

It is designed to work with BTW floor-standing toilet pans and has front actuation.

Geberit concealed cisterns are the classics of modern bathroom installations with over 60 million installed in bathrooms worldwide.

They are known for their reliability, as every cistern is leak-tested before it is delivered. The 50 year guaranteed spare parts availability provides long-term security.

This Cistern is compatible with over 120 Geberit Sigma Flush Plate finishes from the ranges below:

• Dual Flush: Sigma01, Sigma20, Sigma21, Sigma30, Sigma50, Sigma70 & Sigma80
• Single Flush: Sigma10 & Sigma30

Features:

• Fully insulated against condensation
• Flush bend fitted
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Flush volume, factory setting 5.8 and 3l
• Cistern can be mounted at a lower height (98cm) as the flush pipe can be cut down

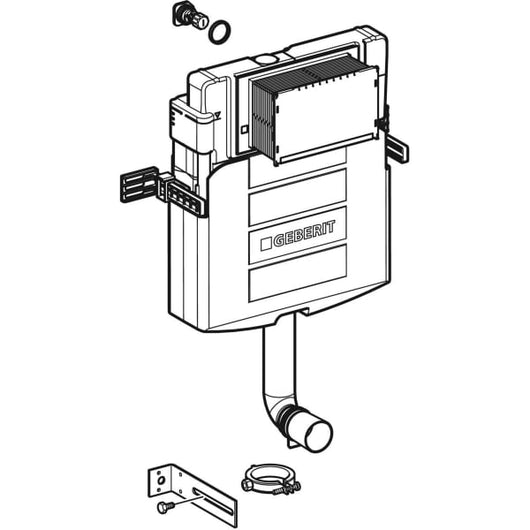

What’s Included:

• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend 90°
• Fastening for flush bend
• Protection plug
• 2 slotted flat irons
• 2 fixing brackets
• Fastening material
• Flush bend extension, ø 45mm
