Geberit Low Level Cistern - 6L Pneumatic Flush Actuation - 109.721.00.2

Geberit Low Level Cistern - 6L Pneumatic Flush Actuation - 109.721.00.2

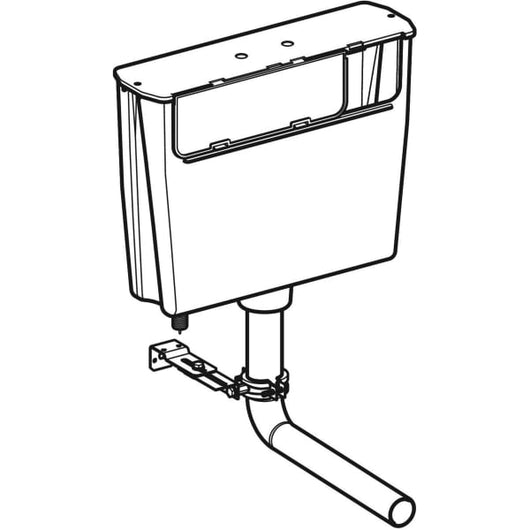

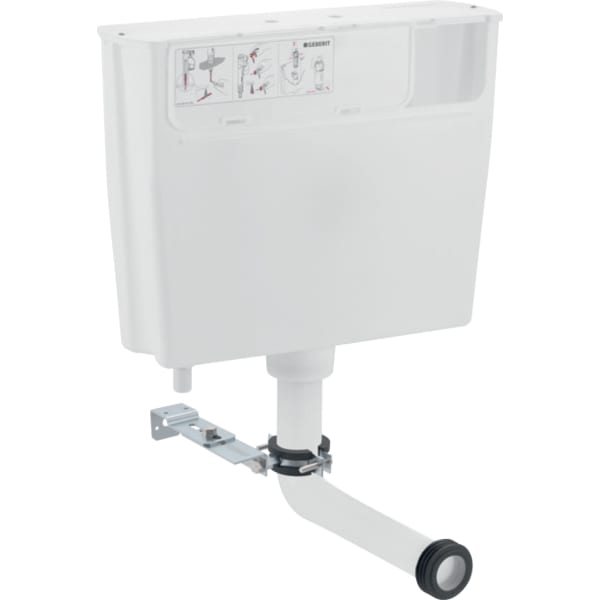

The Geberit Low-Height Furniture Cistern with Pneumatic Actuation is suitable for use with single flush 6-litre units and is designed for installation within a set-up of modern bathroom furniture and floor-standing WCs. Offering a water supply connection on the bottom left and a factory set flush volume of 5.8 litres, this product is compatible with all pneumatic actuators and comes with a 90-degree flush bend, and the fastening material required for both the bend and the original unit as well.

Key Features

• Comes with Pneumatic flush actuation
• Water supply connection on the bottom left
• Compatible with all pneumatic actuators
• Compatible flush button [Optional]
• For installation instruction, download PDF from technical tab
• For installation in bathroom furniture
• For floor-standing WCs
• Fastening for flush bend
• Fastening material

Specifications

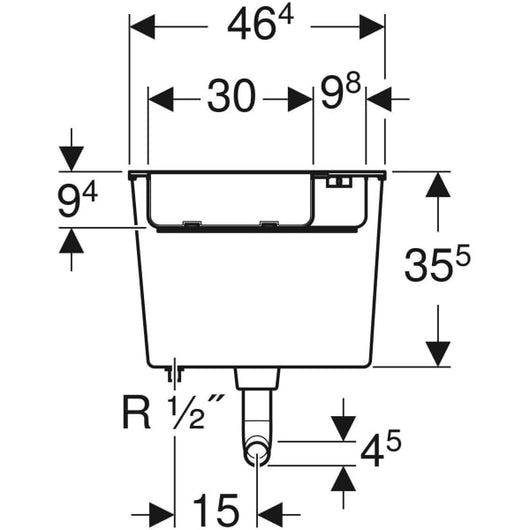

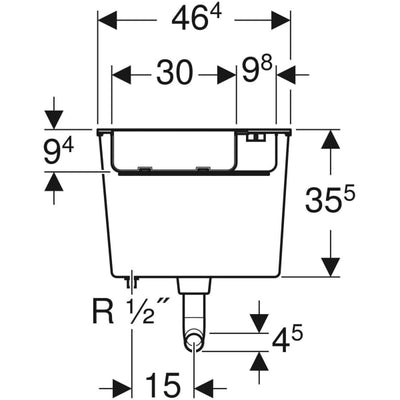

• Size 464 x 355mm [Width x Height]
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Flow pressure: 0.1–10 bar
• Maximum operating temperature water: 25°C
• Flush volume, factory setting: 5.8 l
• Suitable for single flush (6 litres) only

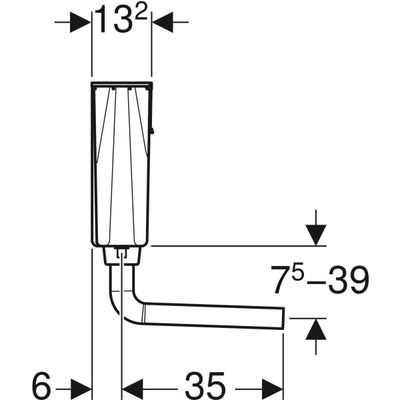

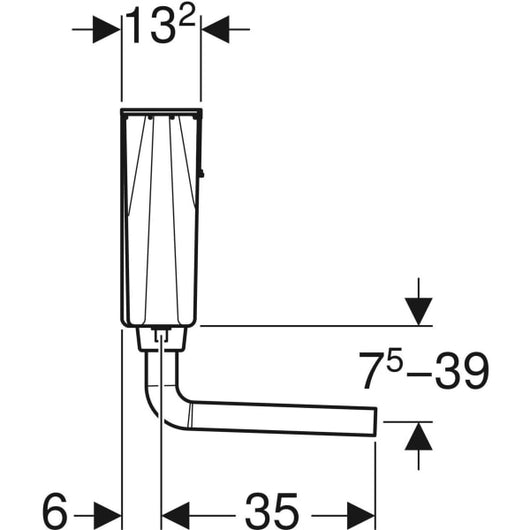

• Flush bend 90°

Please Note: This is the WC Cistern only. If you require a full toilet system, then you will need to purchase a WC Pan and Toilet Seat separately.
