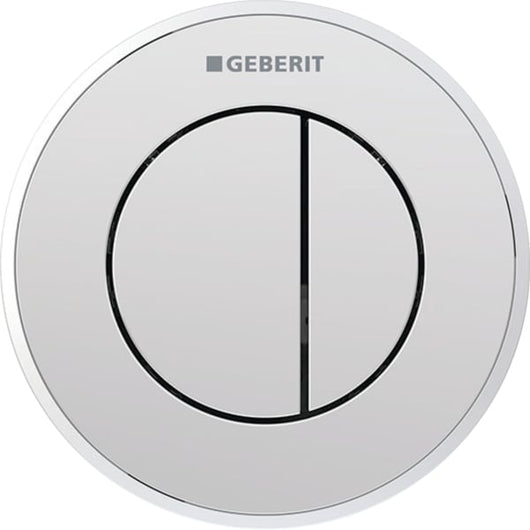

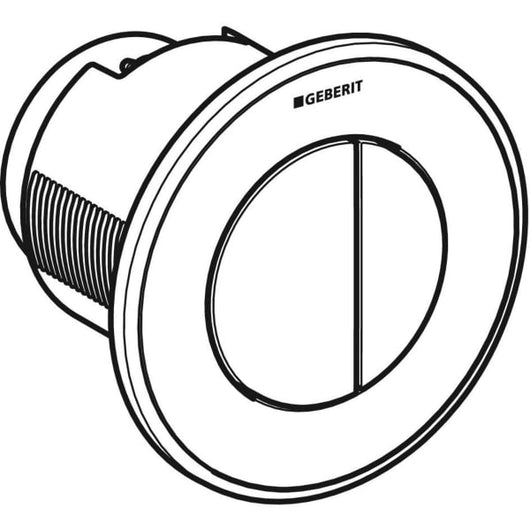

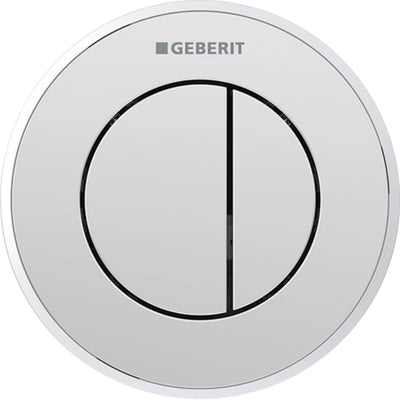

Geberit Flush Button Type10 8Cm WC Dual Flush Gloss & Matt Chrome - 116.056.KH.1

Geberit Flush Button Type10 8Cm WC Dual Flush Gloss & Matt Chrome - 116.056.KH.1

The Geberit Type10 Pneumatic Dual Flush Concealed Actuator is suitable for use with a concealed cistern and comes in 8cm, 12cm, and 15cm size options. Requiring an actuation force of 25N for proper functionality, this product is designed to be combined with a compatible Geberit flush plate for single flush and/or stop-and-go flush systems, or with Geberit cover plate in other installation situations. Available in 5 different finish options to choose from, this model also includes the fixing materials required for secure installation along with it upon purchase.

Key Features

• Material: Plastic
• Round design
• Can be combined with Geberit flush plates for single flush and stop-and-go flush or Geberit cover plate
• For pneumatic remote flush actuation of Geberit concealed cisterns
• For pneumatic remote flush actuation of Geberit exposed and concealed cisterns
• For releasing a dual flush
• For solid and drywall construction & concealed installation
• Actuator & Pneumatic flushing device
• Flush-mounting box with protection cover
• Fastening material.

Specifications

• Suitable for concealed cistern 8cm and 12, 15cm

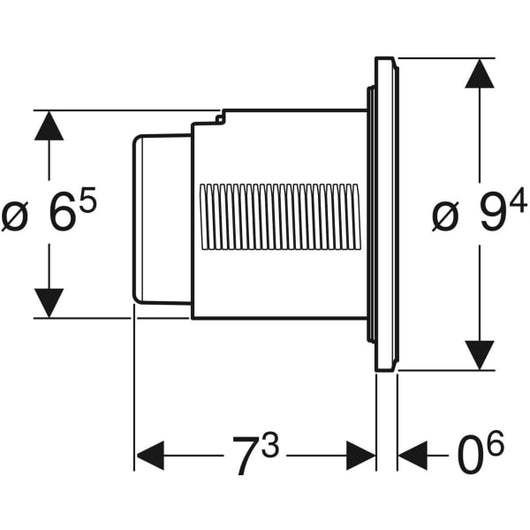

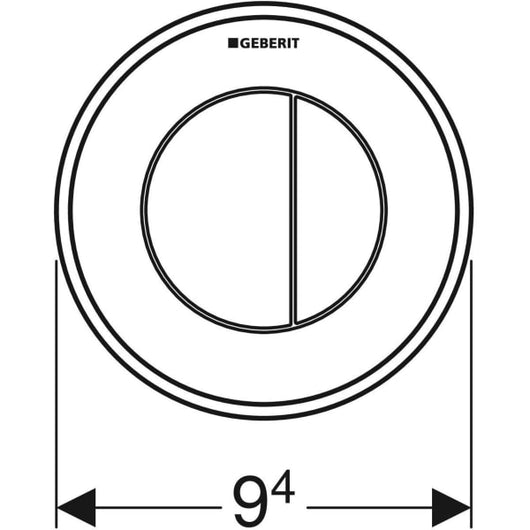

• Size: ⌀ 94mm
• Actuation force: < 25 N
• 74 mm hole required
• Application purposes for 8cm cisterns
• Pneumatic hose length 2 m
• Conduit pipe length 1.7 m
• For Geberit Delta, Sigma, Omega and Kappa concealed cisterns 15 cm
• For Geberit Sigma concealed cisterns 12 and 15cm
• Application purposes for cisterns 12 and 15cm

Tech Specs
