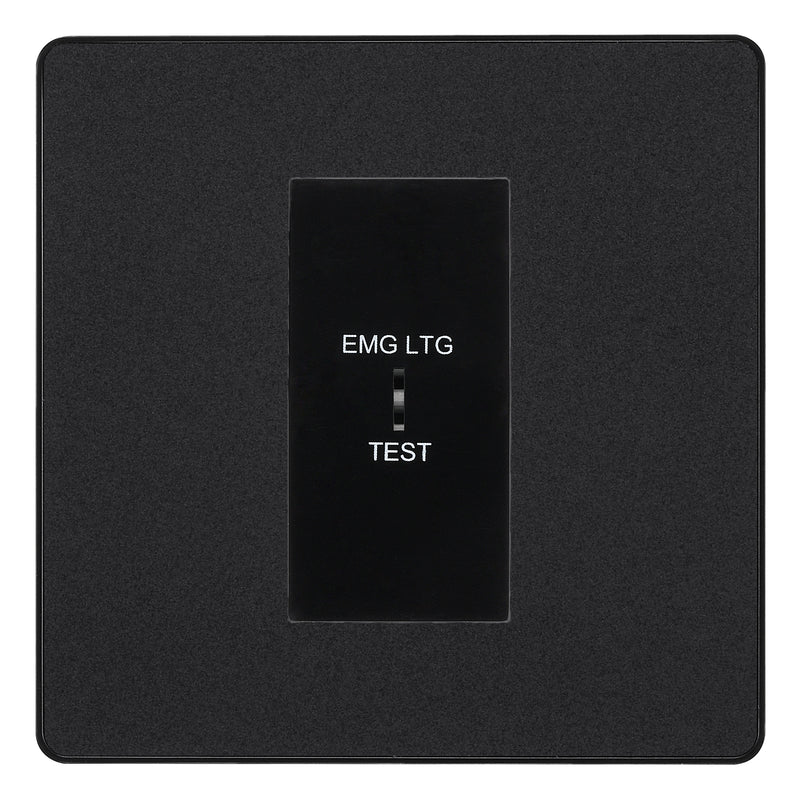

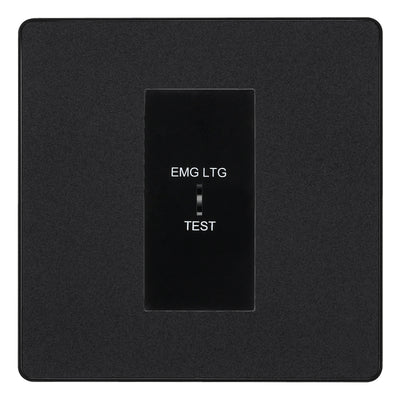

BG Evolve Matt Black 20AX 2 Way Emergency Lighting Test Key Switch - Key Included - Black Insert

BG Evolve Matt Black 20AX 2 Way Emergency Lighting Test Key Switch - Key Included - Black Insert

The Euro Module range from British General combines plates and interchangeable modules so you can configure your own bespoke switches and sockets. This Evolve matt black plate holds a 20AX 2 way key switch marked 'EMG LTG TEST', ideal for use in public places to prevent unauthorised people interacting with the switch - the standard way to key-protect the emergency lighting test circuit in offices, schools, retail units and communal areas. The Evolve plate has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.

THE PLATE CONSISTS OF THE FOLLOWING:

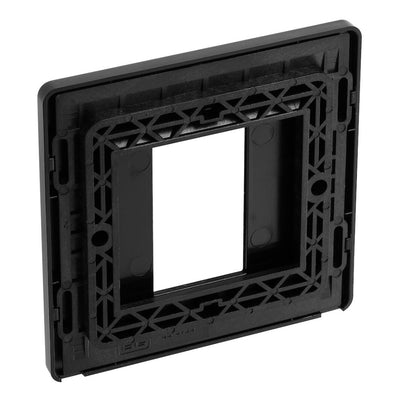

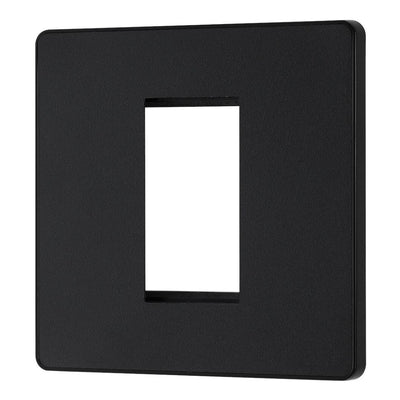

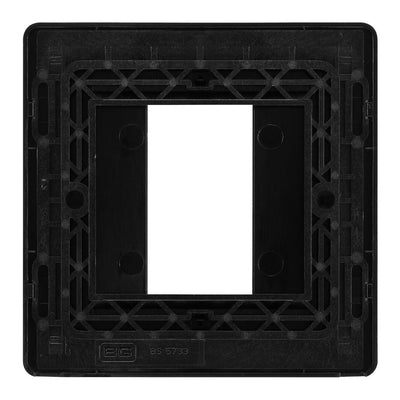

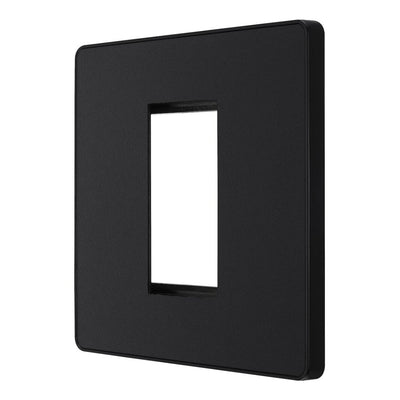

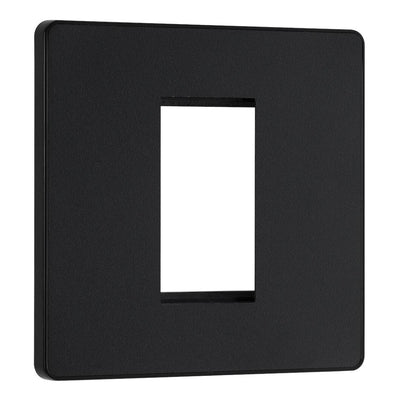

• 1x PCDMBEMS1B - Euro Module Front Plate

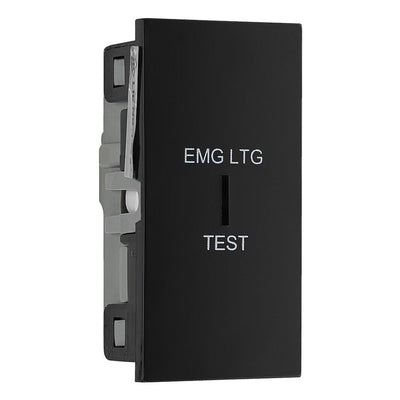

• 1x EMSW12ELB - 20AX 2 Way 'EMG LTG TEST' Key Switch (key included)

FEATURES

• 20AX rated, marked 'EMG LTG TEST'
• Module clips in to Euro Module front plate
• Module fits front plate aperture of 25x50mm
• Generally installed in public places to prevent unauthorised people interacting with the switch
• 2 way switching allows for a second switch position in a circuit
• Supplied with key, spare keys available
• Captive backed out terminal screws for fast installation and to prevent screw loss
• Low profile screwless front plate clips on and off easily
• Ideal for modern interiors
• Requires back box, minimum mounting box depth 25mm
• Certified to BS EN 60669-1 (switch) and BS5733 (plate)

For installation by a qualified electrician in accordance with BS 7671.
