Choose a ready-configured product when its finish, circuit functions and gang count exactly match the schedule: it reduces component-selection risk and gives one product line to check. Build from separate components when the required combination is not available complete, such as one trailing-edge dimmer beside a 2-way or intermediate switch. For a component build, record the visible plate family and finish, frame code, mechanism code, rocker code, circuit function, aperture count and back-box depth together. A similar-looking part or a shared Nexus Grid description is not enough evidence of mechanical compatibility.

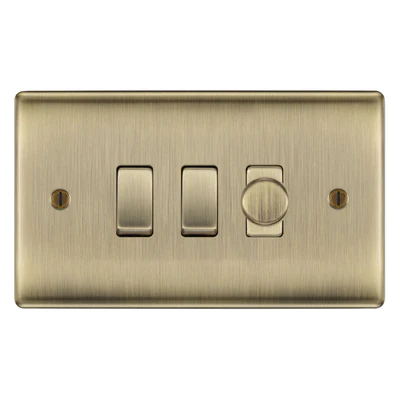

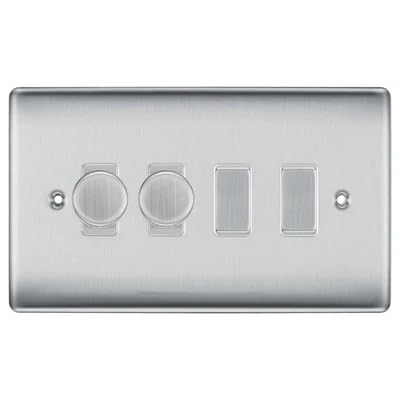

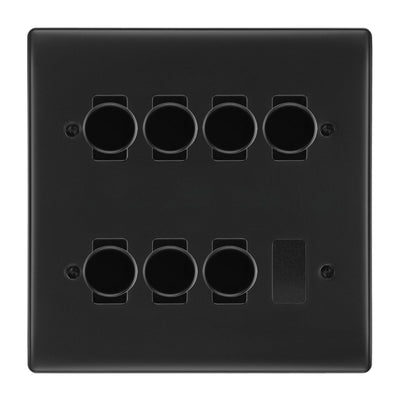

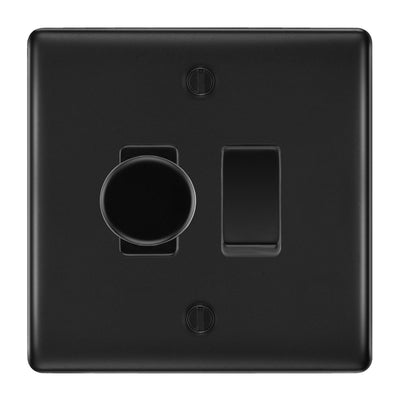

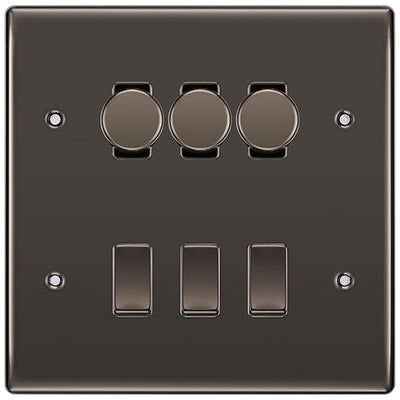

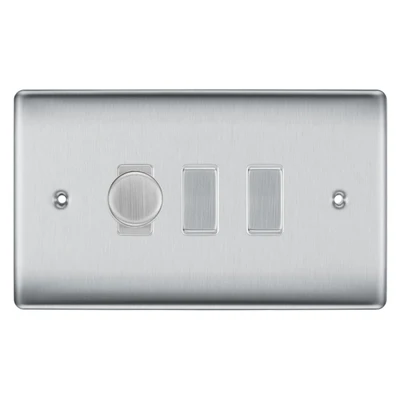

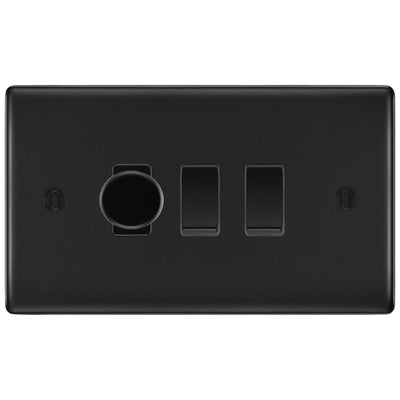

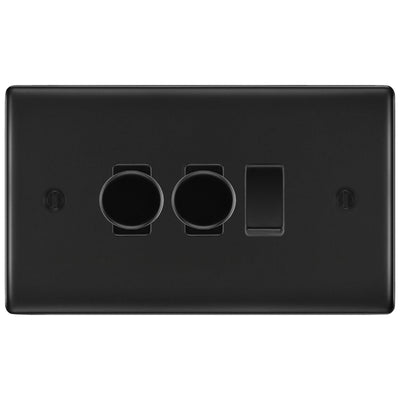

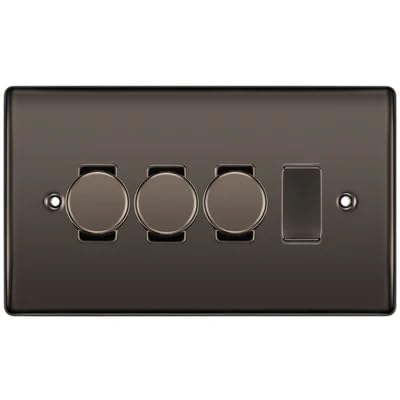

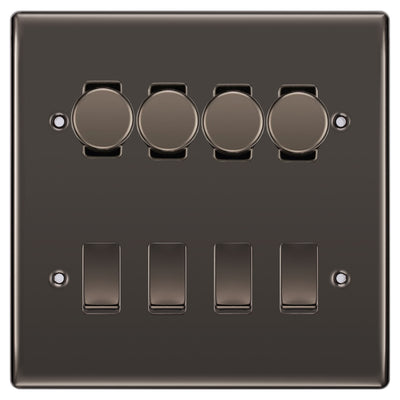

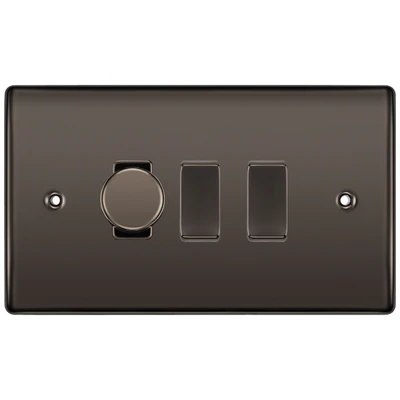

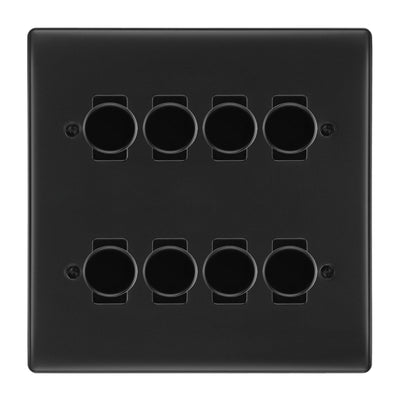

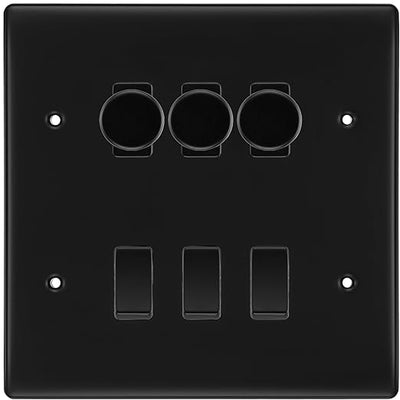

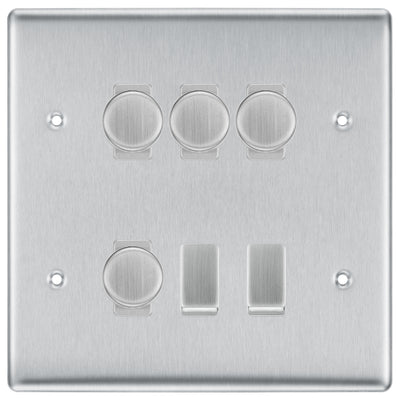

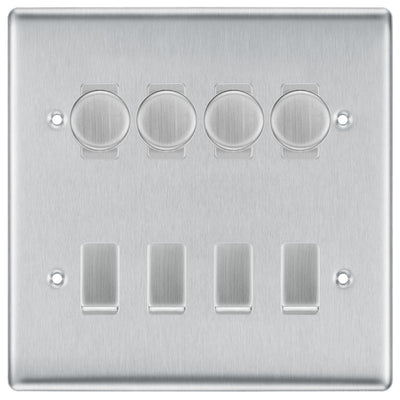

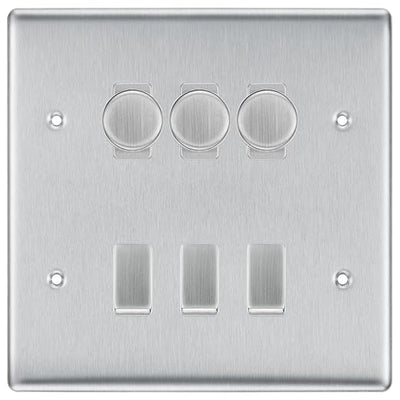

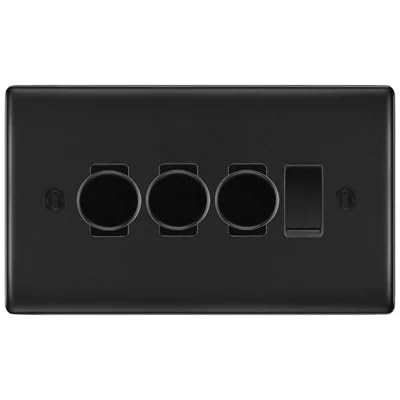

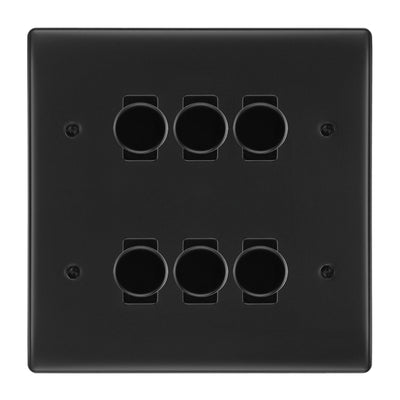

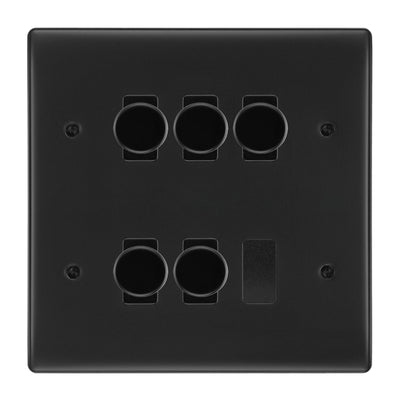

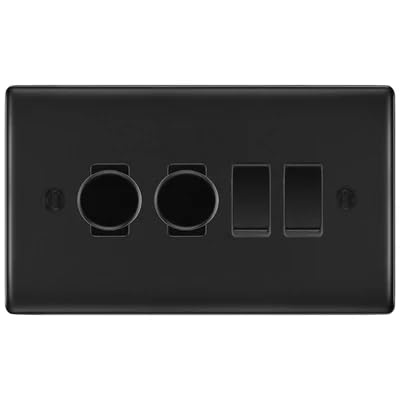

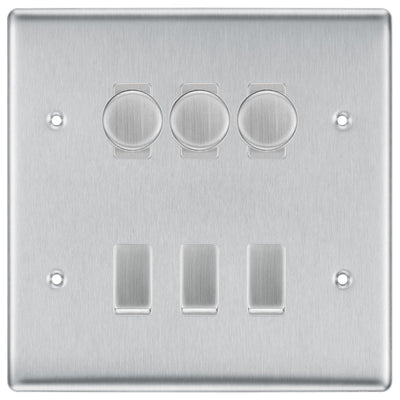

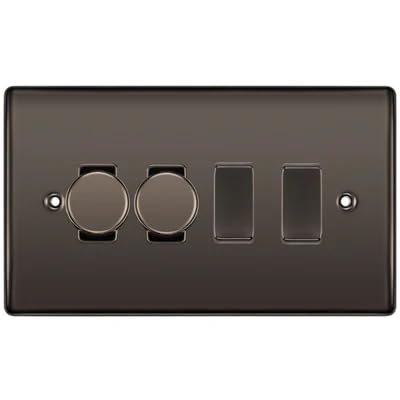

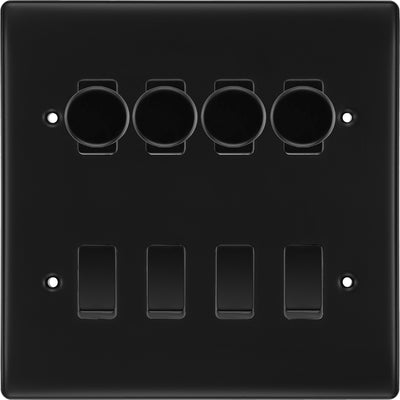

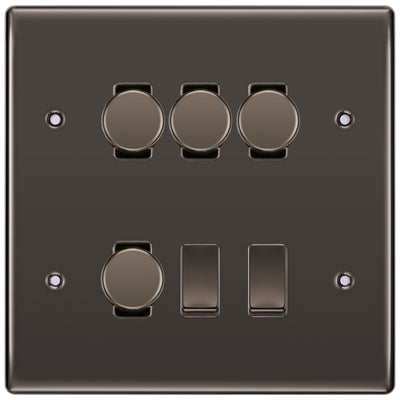

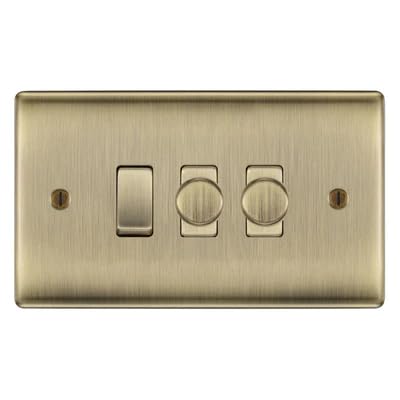

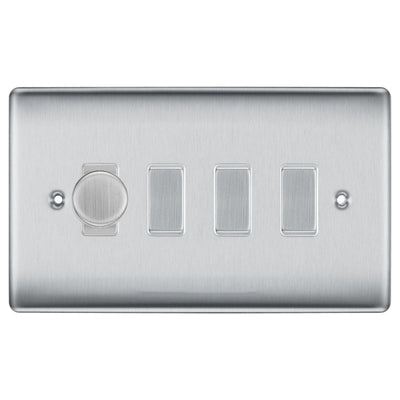

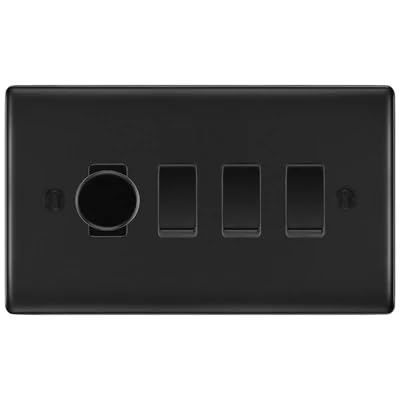

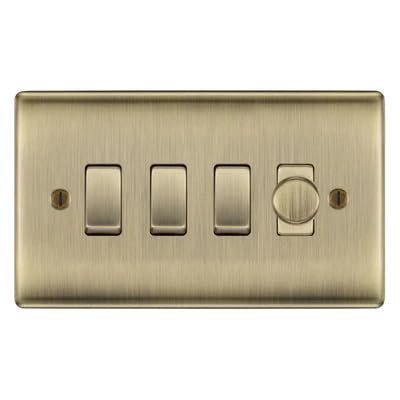

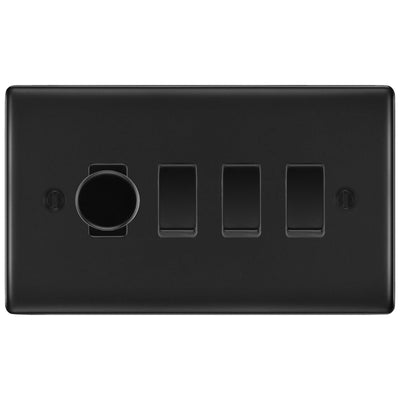

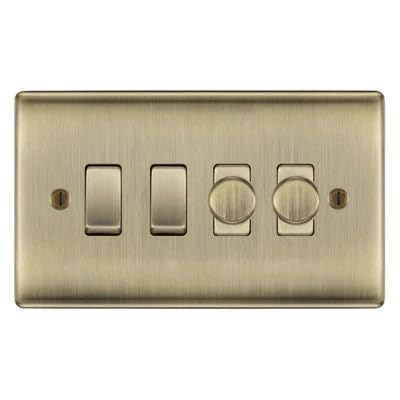

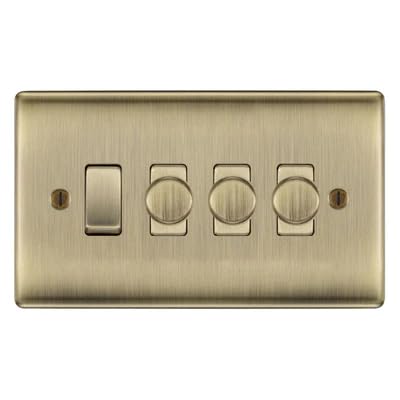

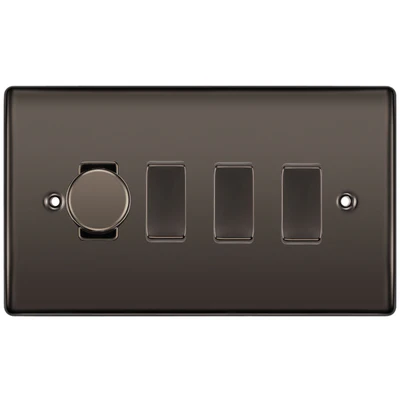

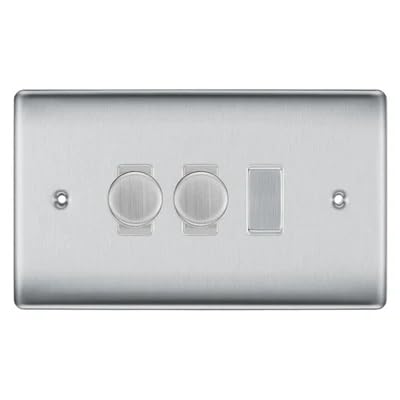

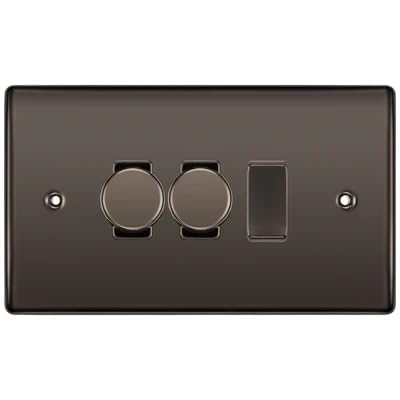

Yes, where the chosen Nexus Grid frame and plate have enough compatible apertures, a custom plate can combine different functions such as a trailing-edge dimmer, 2-way switch or intermediate switch. Each aperture controls its own specified circuit function; gang count is not the number of lamps. Confirm the exact module and rocker codes, the existing circuit arrangement and whether dimming is required at one position only. A qualified electrician should verify the conductors and wiring design before installation.

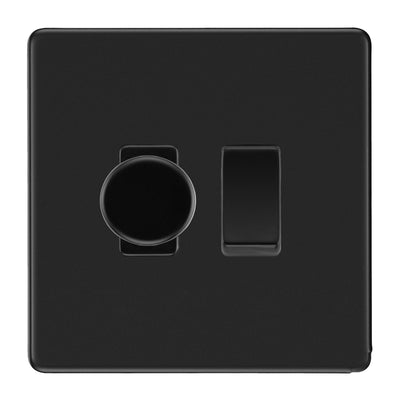

Some mechanisms and modules are shared across BG’s Nexus Grid platform, which includes visible families such as Nexus Metal, Nexus Screwless and Evolve. Universal interchangeability should not be assumed: front plates, mounting frames, rockers, apertures and finishes can be family-specific. Start with the visible plate, then use only the exact component codes BG lists as compatible with that plate family. If the product data does not state the match, ask Kent Traders or BG to confirm it before ordering.

Use only dimmable lamps and a dimmer whose stated technology, minimum load and maximum load cover the combined circuit load. Do not choose from the headline wattage alone, because lamp compatibility and minimum load affect flicker and low-level performance. Confirm the product’s required back-box depth and allow extra cable space where several modules share a plate; 35mm or 47mm boxes are often more practical than a shallow box, but the exact product instructions and wall construction decide the requirement.

Give every location a schedule line containing room, plate family, finish, frame code, aperture count, module and rocker codes, circuit function, lamp type and load, back-box depth and quantity. Keep an approved sample combination as the reference before ordering project quantities. Use the Kent Traders custom grid kit builder to keep the selected family together, then verify every generated component code against the current BG product data before installation.
