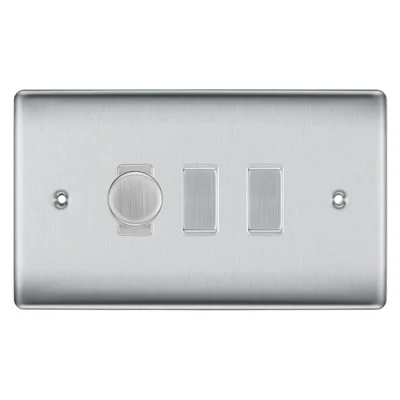

BG Nexus Brushed Steel 3 Gang Switch 1x Trailing Edge LED Dimmer 2x Intermediate Custom Grid
BG Nexus Brushed Steel 3 Gang Switch 1x Trailing Edge LED Dimmer 2x Intermediate Custom Grid
Please note that this switch will come in a grid format.
- RFR34 - 1x 3 & 4 Gang Grid Yoke Frame
- RNBS3 - 1x 3 Gang Cover Plate
- RBS13 – 2x Intermediate Switch
- RBSDLT – 1x Dimmer Switch
The dimmer switches are ONLY compatible with trailing edge LED bulbs (Not compatible with leading edge). Please check that the bulbs you are using are compatible with the dimmer before purchasing.
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
Dimmer Module Technical Specifications | |
Standard(s) |
BS EN 60669-2-1 |
Voltage |
200-250V AC |
|
Load Rating (Max/Min per module) Dimmable LED |
|
5-100W | |
Tungsten/Incandescent |
5-200W |
Halogen |
20-200W |
Dimmable Compact Flourescent (CFL) |
5-100W |
Type |
Trailing Edge |
Terminal Capacity |
4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
RoHS Directive |
Yes |
WEEE Directive |
Yes |
Mounting Box Depth (Min) |
25mm |
BG Nexus Brushed Steel 3 Gang Switch 1x Trailing Edge LED Dimmer 2x Intermediate Custom Grid
