Luceco EFTF5W40 FType Essence White IP65 5W 550lm 4000K 90mm Dimmable Fire-Rated LED Downlight
Luceco EFTF5W40 F-Type Essence 5W ECO Fire Rated IP65 Dimmable Downlight - 4000K
About Product:

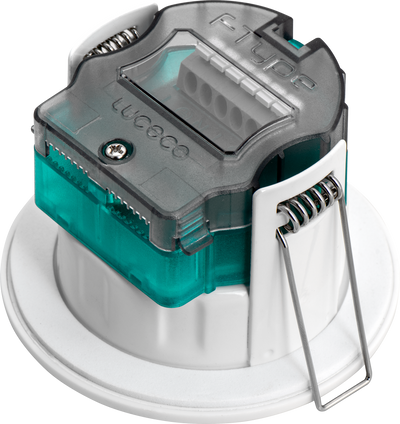

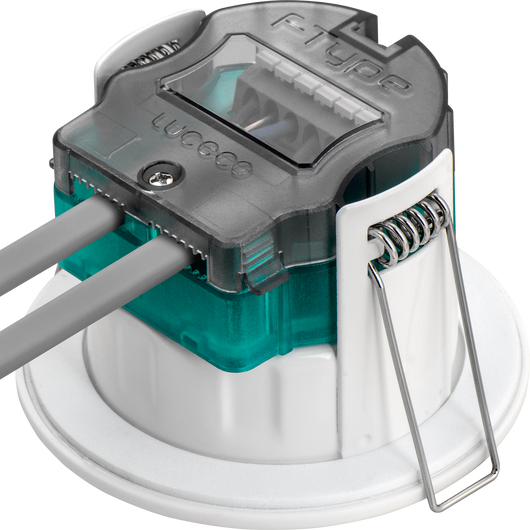

- Trade rated tooless SpeedFit connector - loop in/out piano key terminals for solid or stranded cable

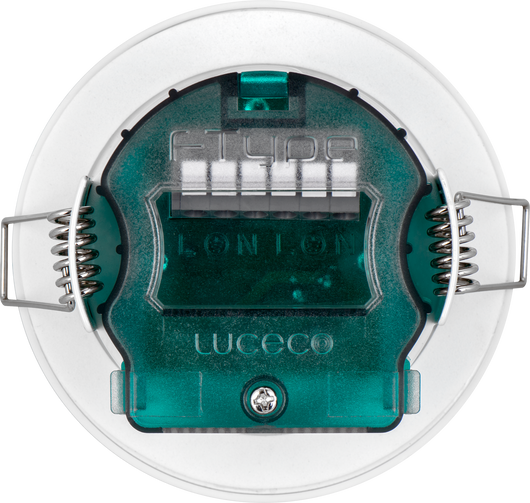

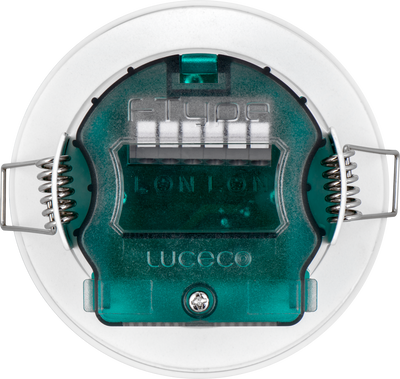

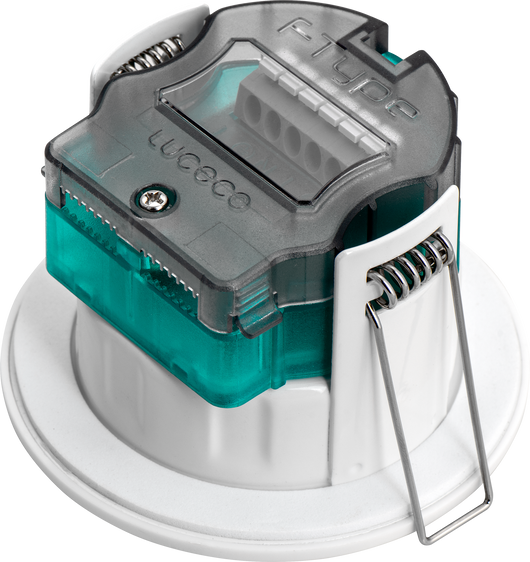

- QuickView Cable Window for ease of inspection - check wire connections to terminals after cables secured in place

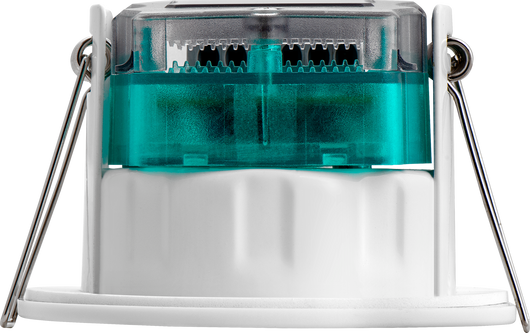

- Low profile design for shallow ceiling voids

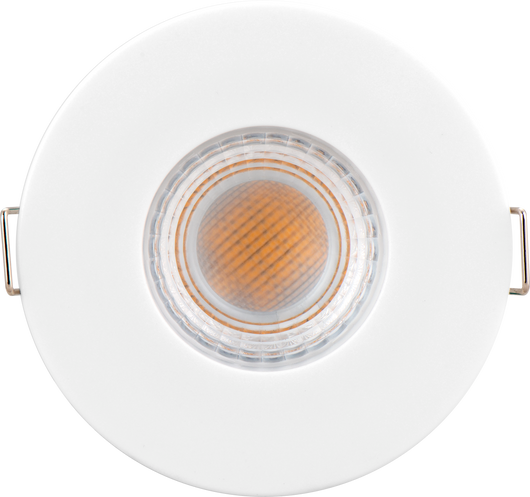

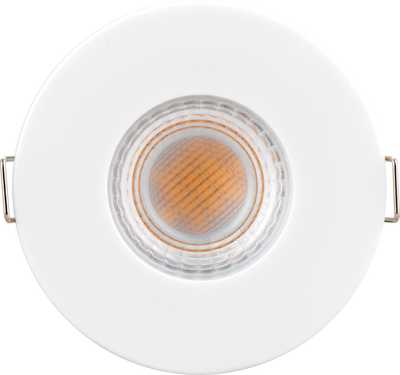

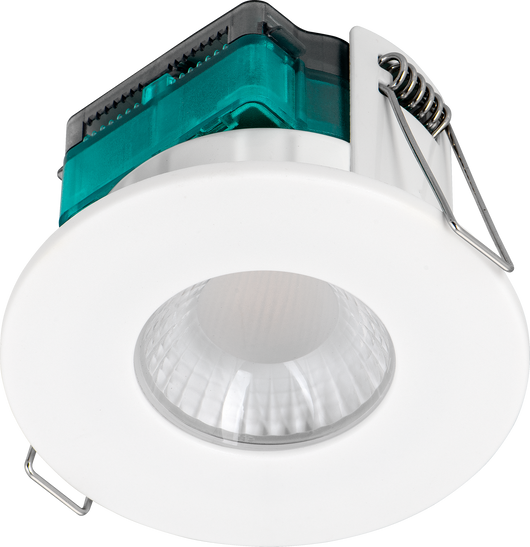

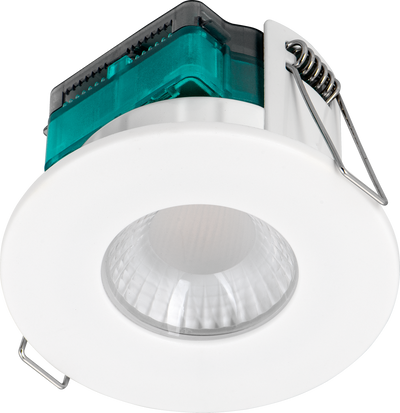

- Super slim bezel design for flawless unobtrusive finish
- IP65 – ideal for kitchen and bathroom locations
- Supplied with removable polycarbonate Matt White bezel -ideal for when decorating and painting ceilings
- Fire tested in 30, 60 and 90 minute solid timber joist, & 30 minute i-joists
- Acoustic and Air leakage rated
- Polished Chrome, Brushed Steel & Matt Black bezel accessory available
- 25,000 hours, 3 Year Warranty
FType Essence fire rate LED downlights are perfect if project budget is a priority. Focused on functionality, design and performance, Essence downlights look great while still incorporating the trade rated SpeedFit housing for easy installation.
The innovative QuickView windows helps ease of inspection to check cables are correctly wired to terminals after cables secured in place and utilises super efficient LED's and a wide 60º baffled back lens for lower glare that still maximises light output.
Designed to elegantly blend in, the super slim interchangeable bezel provides a flawless unobtrusive look while still providing the complete flexibility to remove when decorating. Available in either 3000K or 4000K light outputs in a range of bezel colours, the FType Essence range really delivers maximum performance, latest design and flawless functionality in a compact fitting - making then ideal for all application including bathrooms & shallow ceiling voids cost sensitive projects.
Product details:
Technical Data
| Code | EFTF5W40 |
| Driver Type | Phase Dimmable |
| Lumen Output (lm) | 550 |
| Max Wattage (W) | 5 |
| Efficacy (Lm/W) | 110 |
| Colour Temp (CCT) (K) | 4000 |
| Beam Angle (degrees) | 60 |
| CRI | >80 |
| Base Colour | White |
| Bezel Type | Flat |
Dimensions and Installation
| Cutout (mm) | 76 |
| Unpacked Depth (mm) | 56.5 |
| Unpacked Width (mm) | 90 |
| Unpacked Height (mm) | 90 |
| Unpacked Net Weight (kg) | 0.168 |
Performance & Safety
| Lifetime (h) | 25000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 25000 |
| Operating Temperature (C) | -25°C to +40°C |
| Power Factor | >0.9 |
| IK Rating | IK05 |
