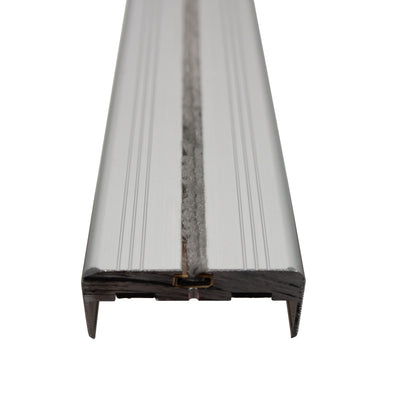

Intumescent Fire Rated Door Edge Guard - Satin Anodised Aluminium

Intumescent Fire Rated Door Edge Guard

Quick Overview

• Satin Anodised Aluminium (SAA) or any RAL colours to match décor.
• Fire tested to BS476 Part: 20 & 22 for 30 minutes and EN 1634 to 30 mins. **Note: To be fitted as per the global assessment. If you wish to receive a copy of this document please contact our sales team.

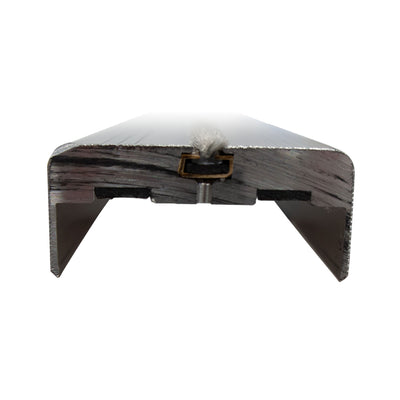

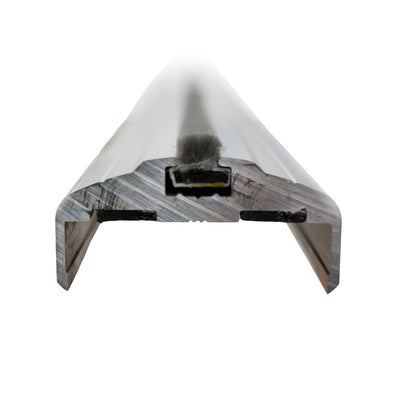

• Available with a flat or rounded edge and in various widths to suit any door edge.
• New build or refurbishment.
• Ideal for use in Healthcare, Retail, Schools and Commercial/Public areas.
• Length 2100mm or 2500mm.
• Single or double door configuration. Rounded 45mm & 46mm

Doors in hospitals suffer more than most from wear and tear resulting from high traffic levels and impact damage yet any door in a commercial or industrial building is likely to suffer from this loss of integrity.

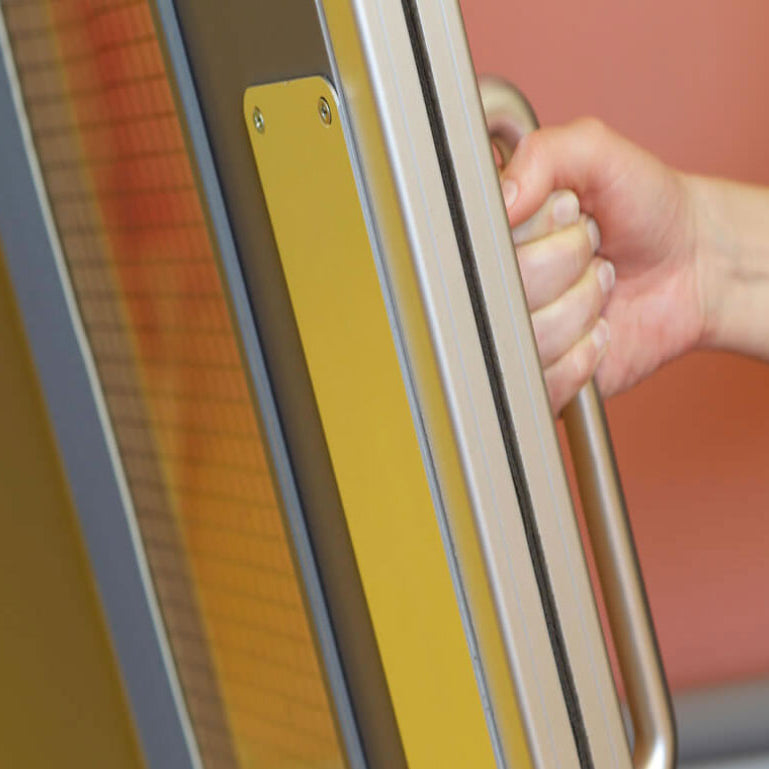

With constant trolley and wheelchair traffic it is the leading edge of the door that suffers most from 'porter damage' which not only results in general damage to the door but also possible loss of the fire integrity of the door.

Astroflame have overcome this problem with their range of Fire rated Door Edge Guards which are available in various sizes from 44 - 46mm width and lengths up to 2500mm.

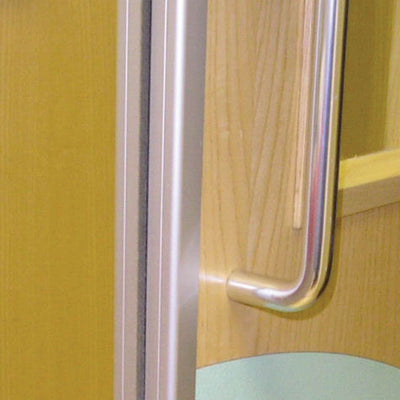

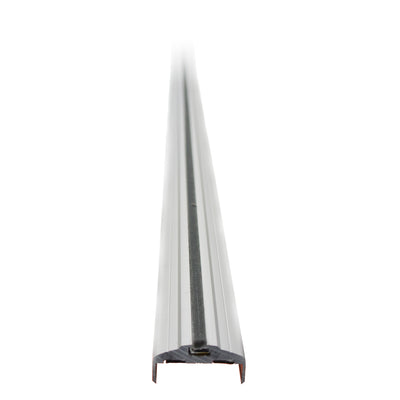

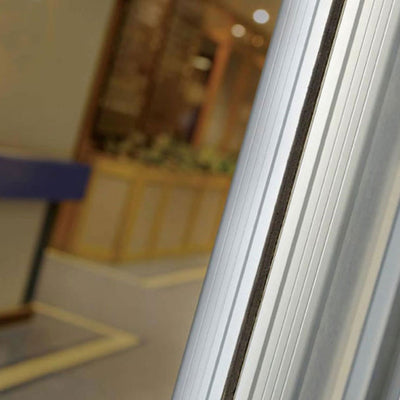

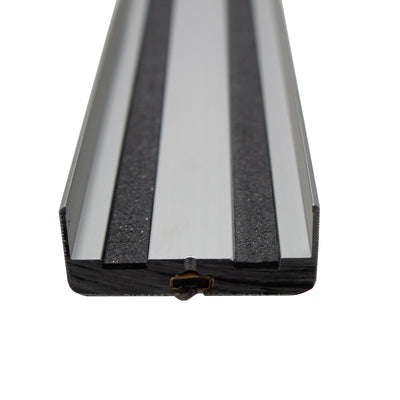

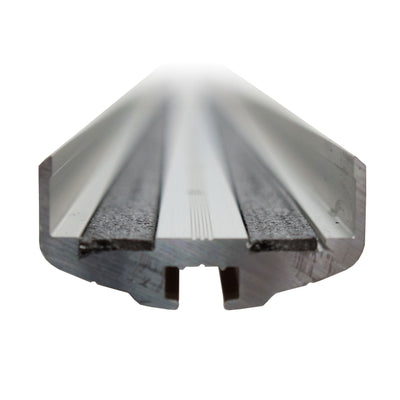

Fitted with intumescent fire and smoke seals which are vandal-resistant yet easy to replace, these aluminium door edge guards are ideal for maintaining fire integrity and can be used on the front and back edges of fire resisting door sets.

Available in aluminium or RAL Colours up to 2500mm long & Widely specified throughout the UK healthcare market.

Product Availability

• Length: Standard Length 2100mm - Longer lengths to order up to 2500mm.
• Colours: Standard Satin Aluminium (SAA) colour or any RAL colour to order (Please specify RAL code).
