Exidor Mechanical Code Lock Outside Access Device

Exidor Mechanical Code Lock Outside Access Device

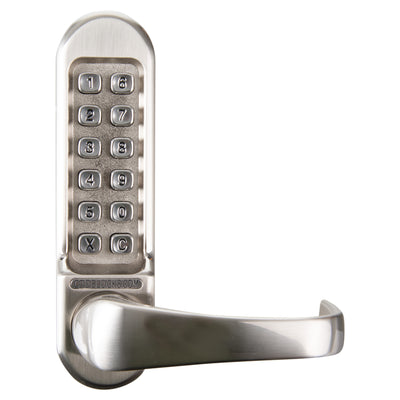

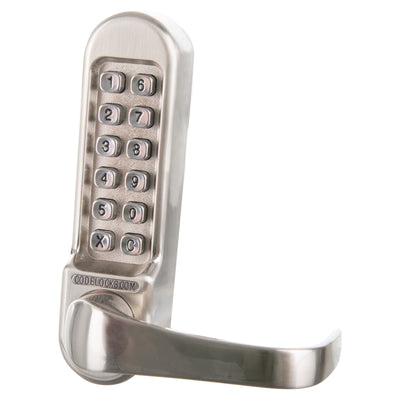

Exidor's CL1 and CL2 mechanical codelock outside access devices enable secure and restricted access into buildings from the outside through final exit doors where needed. These products are compatible with latch operated panic hardware - specifically the Exidor 296 and Exidor 297 systems. Both the CL1 and the CL2 offer a potential 1,584 different lock combinations, and are supplied non-handed to ensure compatibility with doors opening in either direction. The CL1 is classed as the standard option, whereas the CL2 version offers a 'passage function', meaning the door can be set to allow free passage without needing to enter the code. These devices are surface mounted, using concealed screws for security, and are supplied with spindles suitable for doors from 35mm to 60mm thick.

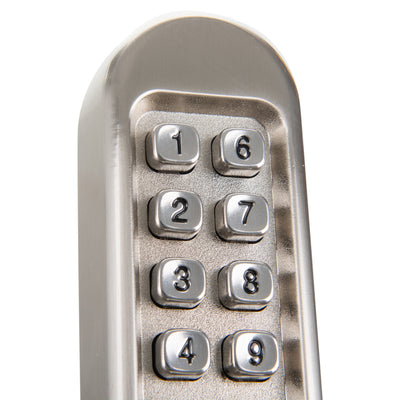

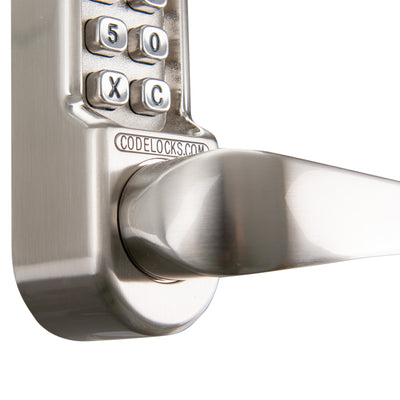

• Push button code lock with lever handle
• For use with Exidor 296 or Exidor 297 hardware
• Allows authorised access through escape doors
• 10 year manufacturer's warranty
• Zinc alloy construction with a stainless steel finish
• Supplied non-handed for ease of installation

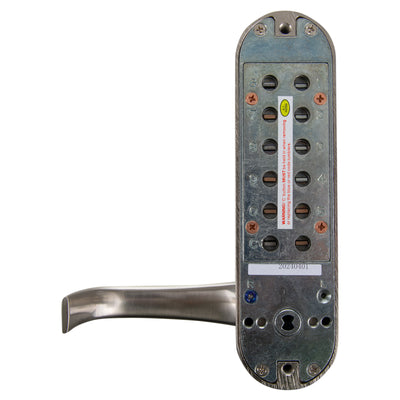

• Surface mounted using concealed screws

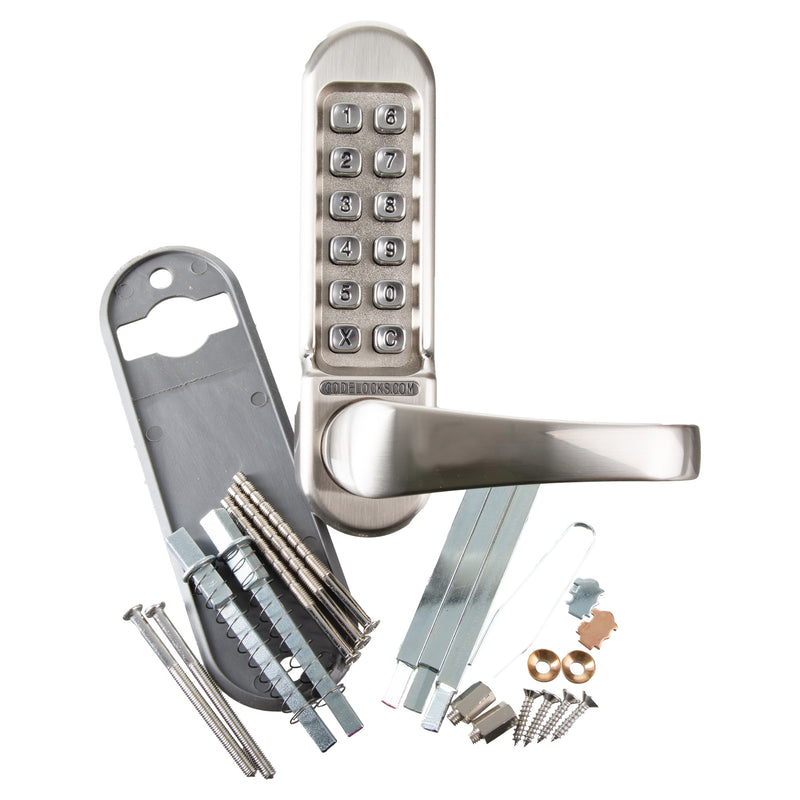

• Suitable for doors 35mm - 60mm thick
• PVD weather resistant finish as standard

How it Works

It is crucial that outside access devices do not compromise the performance of escape hardware when fitted. All Exidor external access devices are carefully designed to ensure that the door functions as an entrance when needed, but as an emergency exit at all times.

Standard Function (EXDCL1 & EXDCL2):

To open the door from the outside, the C button should be pressed to reset the lock and the code typed in on the numerical pad. When the full code has been typed the handle can be turned, allowing the door to be opened and the user to pass through. When the handle is released, the code lock will re-engage.

Passage Function (EXDCL2 Only):

When the passage function is activated the device is left unlocked, allowing free passage through the door. Simply press the dot button after entering the code to enable the passage function, and press it again to disable the function. Pressing the clear / cancel button will not disable the passage function.

Please note: When the passage function is enabled, the lever remains engaged/active until the door is re-locked.

Technical Data

Product Code	Standard: EXDCL1 With Passage Function: EXDCL2
Brand	Exidor
Code Storage	Single non-sequential 4 digit code
Dimension (HxW)	177x48mm (Not Including Handle)
Door Thickness	Suitable for 35mm - 65mm thick doors
Warranty	10 years
Weight	EXDCL1: 1.75kg EXDCL2: 1.7kg
Product Datasheets	Exidor 200 & 300 Series Brochure
