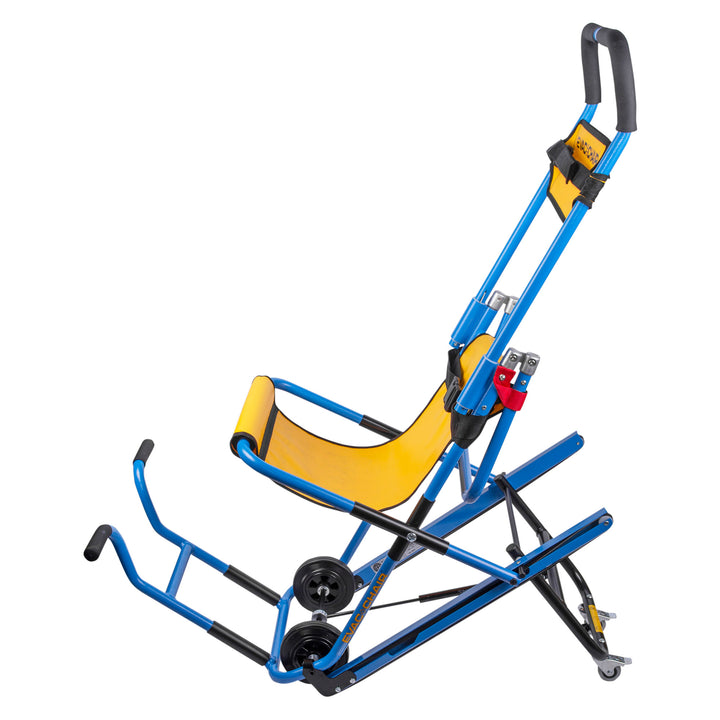

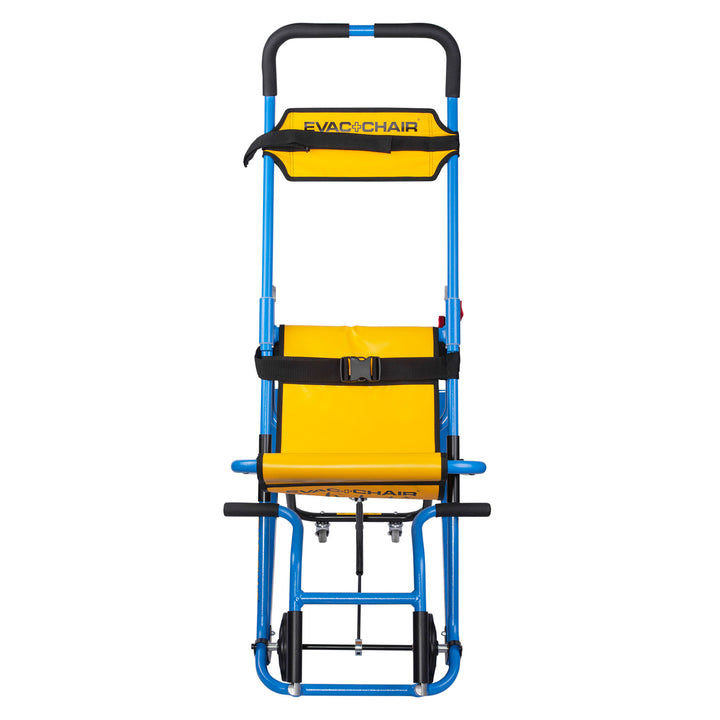

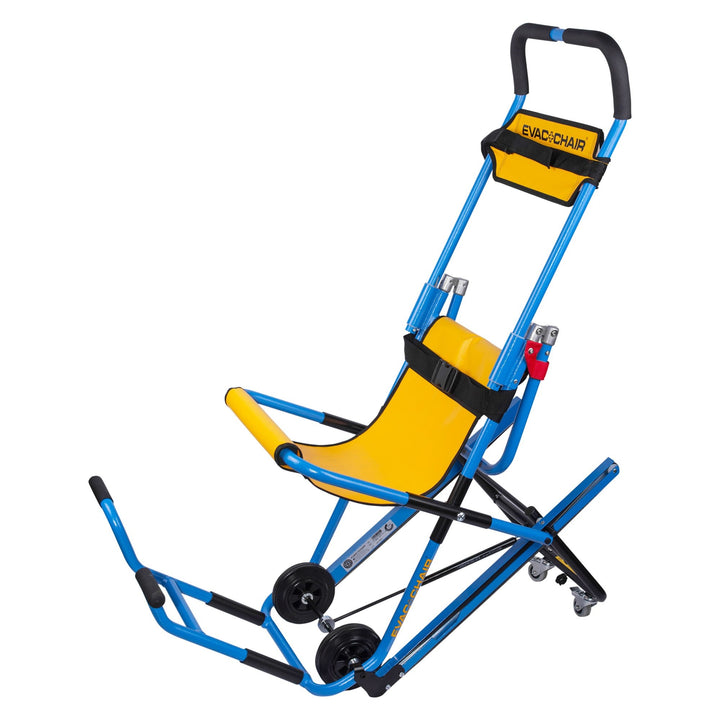

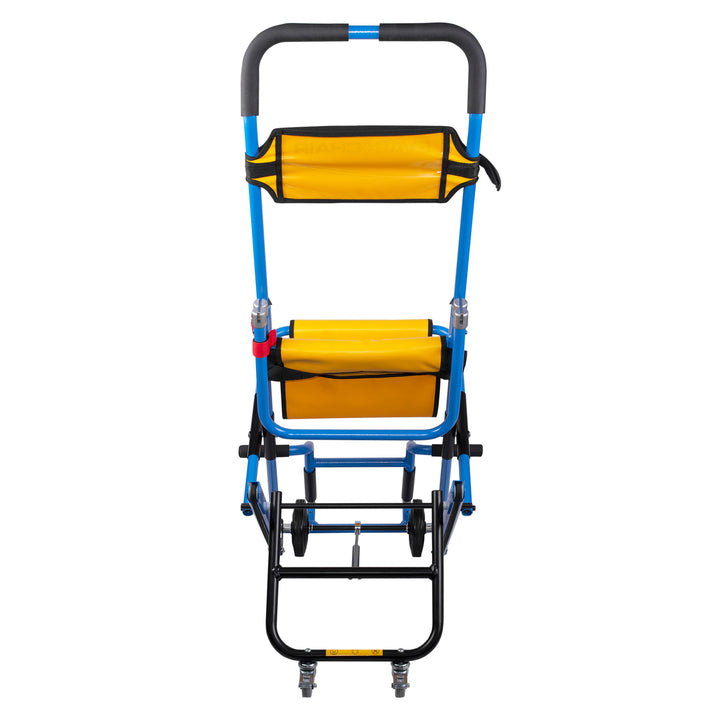

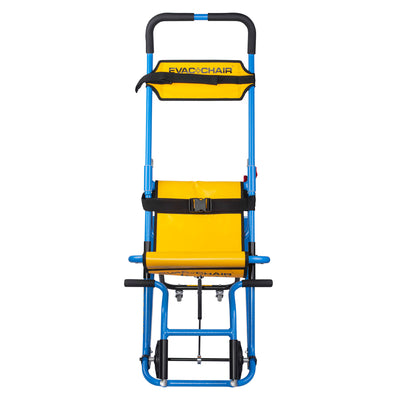

EVAC+CHAIR 600H MK5 Evacuation Chair Only

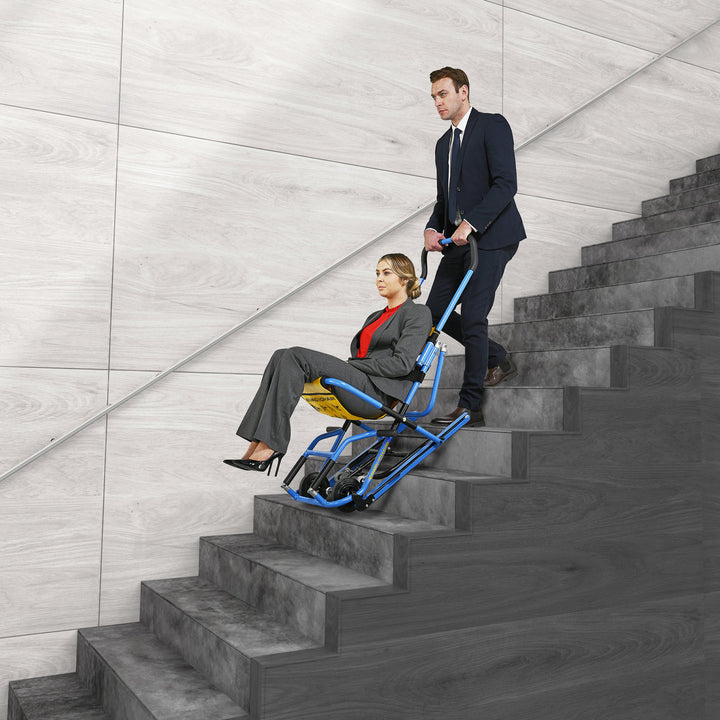

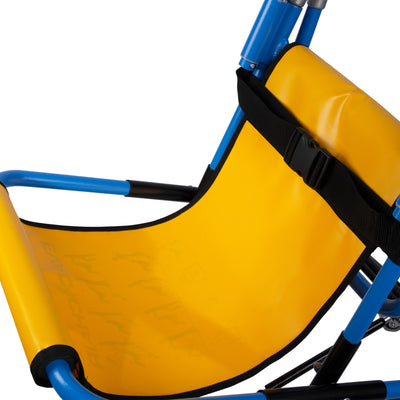

The Evac+Chair 600H Emergency Evacuation Chair is ideal for use in locations with difficult access, such as staircases with small half landings, or where it is necessary to ascend (rather than descend) stairs e.g. from a basement. Featuring front and rear foldable grab handles, the 600H can be used with up to 4 operators in the event of an emergency, allowing for the ability to ascend stairs or traverse obstacles. For descending stairs, the specially designed friction belts provide a smooth non-slip descent via a self-braking system which prevents the chair from accelerating too quickly. The redesigned sling style seat provides greater passenger comfort, and also ensures the passenger cannot be tipped forward when the safety belt is secured.

• Ideal for locations with difficult access where it is necessary to ascend over stairs or obstacles

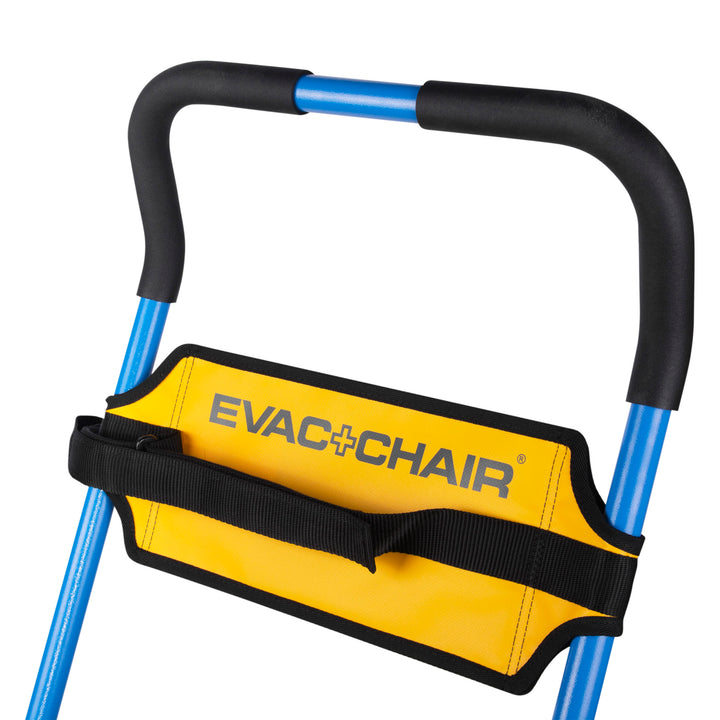

• Single person operation (for descent) with double handed grip to provide improved stability
• Can be used to go up stairs as well as down (2 to 4 operators required to ascend stairs)
• For use on standard stairs (28° - 40°) with a maximum passenger load of 400lbs / 182kg

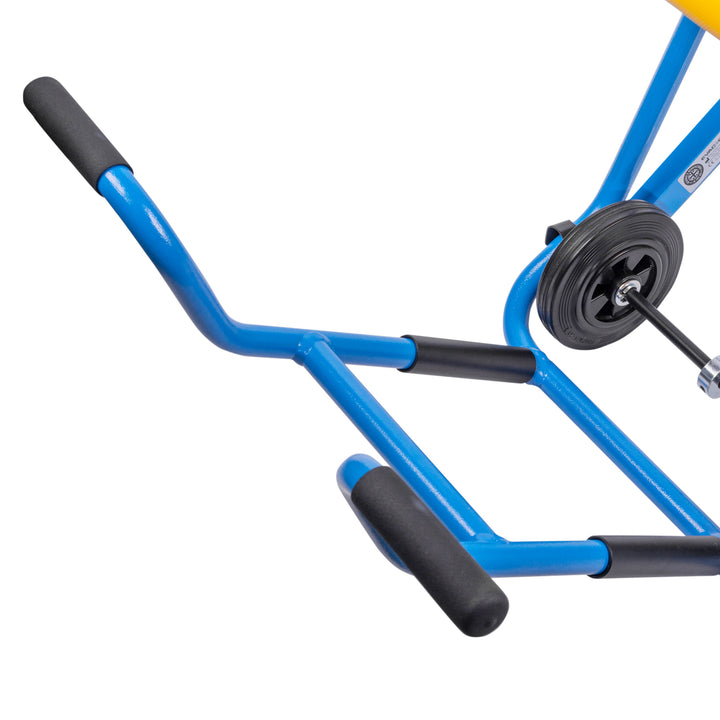

• Foldable front and rear grab handles to assist with ascension when used with multiple operators

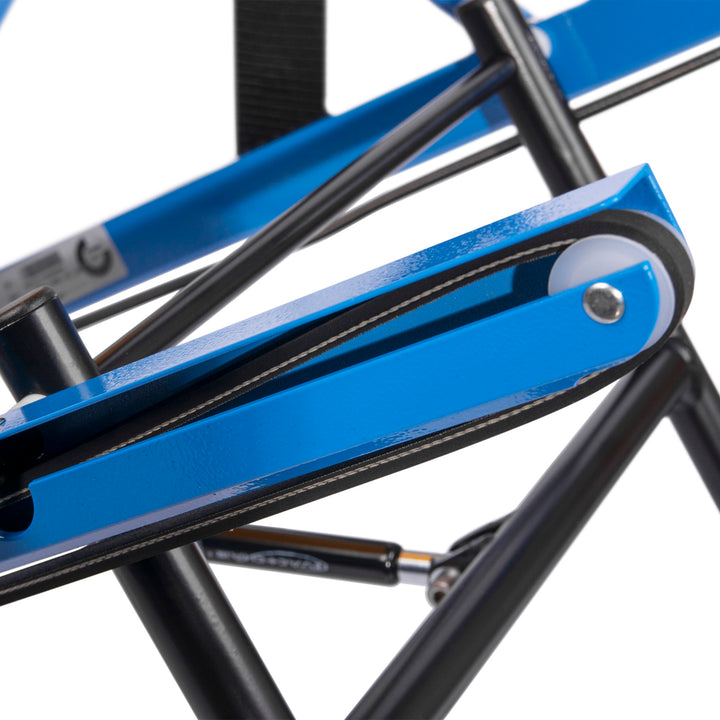

• Unique friction belt system with self-braking track ensures a smooth and comfortable non-slip descent
• Supplied with photoluminescent signs, hooks for wall mounting, and dust cover for protection when not in use
• Includes simplified graphical instructions and user guide
• 5 Year Warranty (based on service and maintenance)
• CE marked and TÜV Certified
• DDA compliant product and manufactured in the UK by Evac+Chair
• Class I Medical Device and regulated under PUWER
• Initial siting and installation available
• Annual EVAC+CHAIR servicing available

Legislation Requirements

Equal opportunity and health and safety requirements are guided by a number of current legislations. The 600H chair provides a solution to the evacuation needs of those who are less able, in both commercial and residential applications. Legislation requirements to be met by building operators and employers include:

• Regulatory Reform (Fire Safety) Order 2005 - Means of escape
• Building Regulations Parts B and M - Building use and access
• BS5588-8:1999 - Providing disabled people with measures to be assisted in an emergency
• Equality Act 2009 - Ensuring that disabled people are not at a disadvantage compared to those that are not disabled
• DDA (Disability Discrimination Act) - Providing adequate access and facilities for any disabled person who may enter a building

Evac+Chairs are Class I Medical Devices with their installation and use regulated under the Provision and Use of Work Equipment Regulations 1998 (PUWER). Employers, self-employed people, and those employed to supervise or manage equipment are responsible for ensuring that a reasonable amount of staff are adequately trained to use Evac+Chairs safely, that the chairs are annually serviced by a qualified engineer, and that they are regularly inspected by a competent worker.
