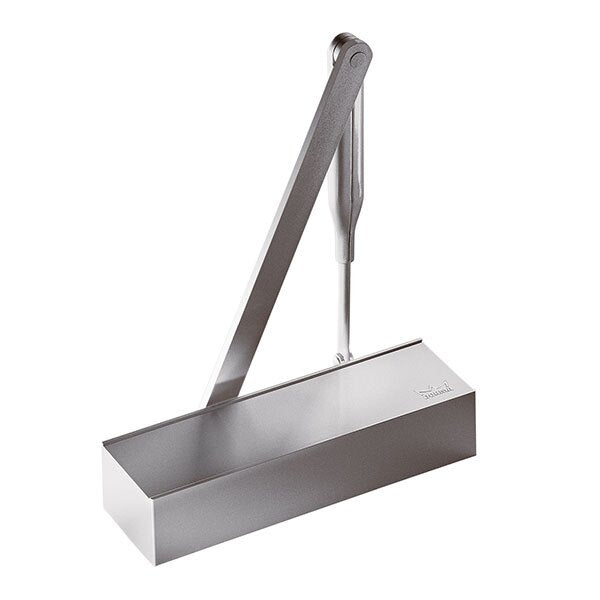

Dorma TS71 Silver Overhead Door Closer - Power Size 3/4

Dorma TS71 Silver Overhead Door Closer - Power Size 3/4

When fitted with the Dorma TS71 overhead closer, the door closing speed and latching action can be easily adjusted using valves located on the closer body and arm. Suitable for doors with a maximum width of 1100mm, the Dorma TS71 has been tested and approved to EN 1154 and has a 120 minute fire rating. This economy closer is easy to install and is suitable for both left and right handed doors.

• Suitable for:
  • Single action doors
  • Doors up to 1100mm wide and weighing up to 80kg - EN size 3-4
  • Installation in Fig 1, 61, and 66 configurations
  • Non-handed - suitable for left and right handed doors
• Kitemarked to EN 1154
• CE marked
• Certifire approved for use on FD120 fire rated doors - CF 268 Certificate
• Adjustable features to suit your premises
  • Closing speed controls how quickly the door closes
  • Latching action governs the speed of the door in the last 15° of the cycle
• Easy to install and adjust the power size
• High quality silver finish as standard
• 5 year warranty
• Full classification:
  • Fig 1/61 installation: 4 | 8 | 4-3 | 1 | 1 | 2
  • Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 2

Technical Data

Product Code	DMTS71SE
Brand	Dorma
Adjustable Closing Speed	Yes
Adjustable Latching Action	Yes
Classification	Fig 1/61: 4 | 8 | 4-3 | 1 | 1 | 2 Fig 6: 4 | 8 | 3 | 1 | 1 | 2
Dimensions (HxWxD)	68x232x245mm
EN Size	3-4
Weight	1.20kg
Product Datasheets	Dorma -TS71-Declaration-of-Performance TS71-datasheet
