Description

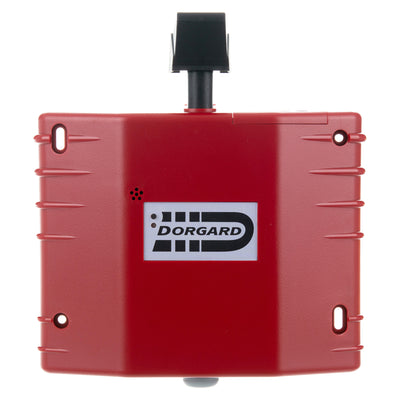

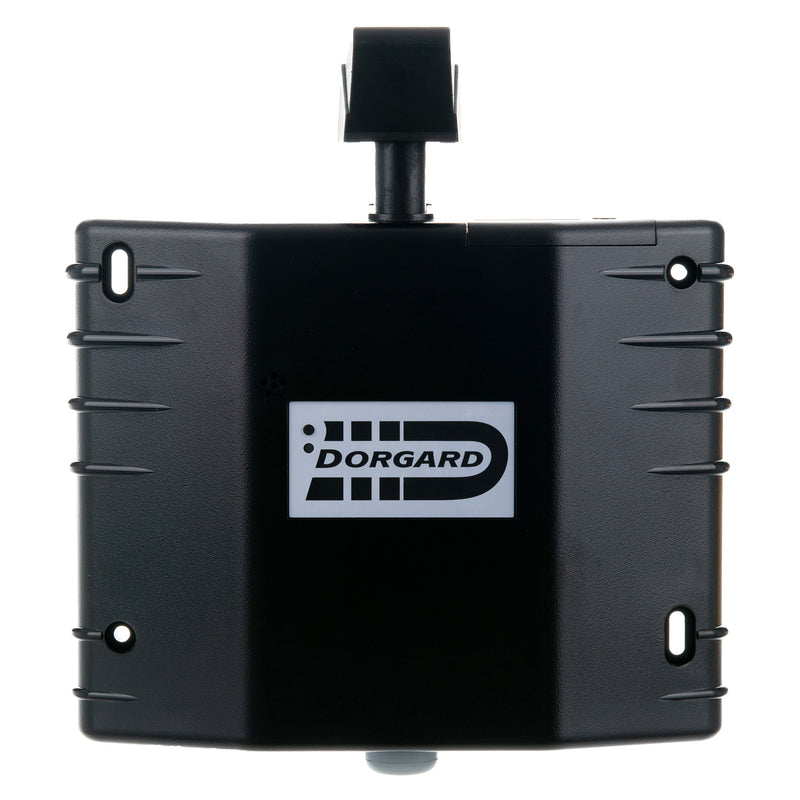

Dorgard Fire Door Retainers
The Dorgard is a reliable solution that allows you to hold your fire doors open at any angle for improved ventilation, access, and convenience. In the event of a fire, the device will automatically release enabling the fire door to close by responding to the sound of a fire alarm. When the alarm sounds at 65db or more (as per BS 5859-1) for 14 continuous seconds, the Dorgard will release allowing the fire door to close normally. This fire door retainer by Fireco uses an easy foot-operated setting and release system.
- Exclusive 5-year warranty
- Available without FREE floor plate and fixing screws
- Tested and certified to BS EN 1155:1997 & BS EN 1634 and conforms to BS 7273-4 "Standard" category
- Suitable for fire doors up to FD120, and up to EN power size 7
- Fully wireless installation and operation – no cabling needed for power or fire alarm connection
- Designed to be fitted to fire doors, capable of keeping the door open at any angle
- Battery operated - 2 x C size alkaline batteries included
- Plunger, with rubber ferrule, grips onto floor (or optional floor plate) to hold door open
- Automatic night-time release feature and automatic fail-safe release on low battery
- Manufactured in the UK, CE and UKCA marked
- Improves access throughout buildings – in line with the Equalities Act 2010
Technical Data
| Product Code |

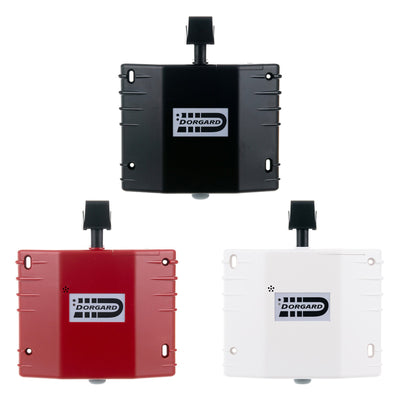

Black, Without Floor Plate: FCDG01BK White, Without Floor Plate: FCDG01WH Red, Without Floor Plate: FCDG01RD |
|---|---|
| Brand | Fireco |
| Battery Life Expectancy | +12 Months |
| Battery Type | 2 x 1.5V C-Size Alkaline Batteries |
| BS7273-4 Category | Normal (Category B) |
| Case Material | ABS Plastic |
| Dimensions |
Overall Height: 205mm Main Casing Height x Width x Depth: 150 x 195 x 45mm Plunger / Stopper Travel: 20mm |
| Max. Door Size | Power Size 7 (Max. Door Weight 160kg, 1600mm Width) |
| Warranty | Safelincs Exclusive 5 Year Warranty |
| Weight |
Dorgard (excl. Batteries): 550g Dorgard (incl. Batteries): 680g Packaged / Boxed: 945g |
