Briton Double Door Panic Bar Set with 2 Bolts

Briton Double Door Panic Bar Set with 2 Bolts

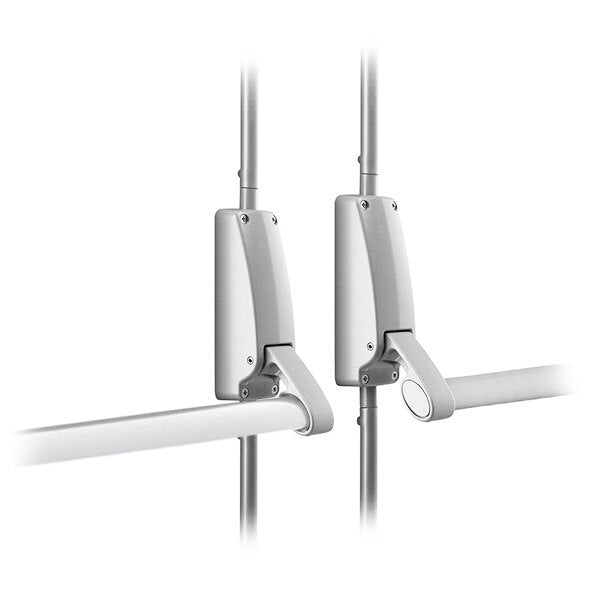

The Briton double door panic bar set consists of two push bars with adjustable vertical bolts, suitable for use on non-rebated double doors. Its simple push bar action to retract the bolts and release the door makes the panic hardware ideal for final exit doors accessible to those with minimal or no previous training i.e. public use buildings. Briton panic bars have been fire tested for use on timber or steel doors and carry a 5 year manufacturer's warranty.

• Double door panic hardware set with two vertical bolts
• Suitable for use on non-rebated double doors
• Available with the following optional outside access device options:
  • Briton 1413/KE Outside Access Device With Knob
  • Briton 1413/LE Outside Access Device With Lever

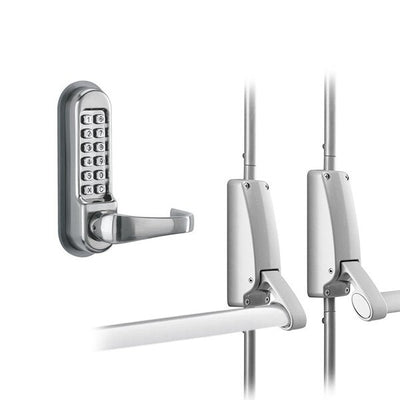

  • Briton 9260 Mechanical Code Lock
• Adjustable top and bottom shoots
• 5 year manufacturer's warranty
• Fire tested to EN 1634 & BS 486 Part 22
• CE marked and complies with EN 1125
• Designed for doors accessible to the public and non-trained personnel
• Suitable for door leaves up to 2500mm high x 1300mm wide
• Each bolt features two point locking for additional security
• Fire rated for use on timber and steel doors (strike plates for metal doors available separately)
• Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
• Supplied in silver finish as standard
• Achieved Grade 3 high corrosion resistance - Building Corrosion Requirements tested

Technical Data

Product Code	Push Bar Set Only: BRDPBB Push Bar Set with Knob Operated Outside Access Device: BRDPBB1413/KE Push Bar Set with Lever Operated Outside Access Device: BRDPBB1413/LE Push Bar Set with Code Lock Outside Access Device: BRDPBB9260
Brand	Briton
Dimensions (HxWxD)	165x55x99mm (each end of the bar)
Door Suitability	Type: Non-rebated double doors Max. Door Dimensions: 2500mm (H) x 1300mm (W) each door
Warranty	5 years
Weight	8.60kg
Product Datasheets	Briton 372 Datasheet Briton 372 Installation Instructions
