BG Screwless Flatplate Matt Black 6 Gang 2 Way Trailing Edge Dimmer LED Compatible Custom Grid Switch

£116.85
Add to Wishlist
Description

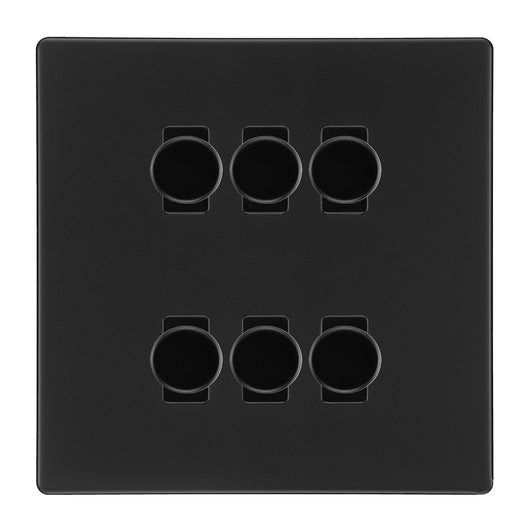

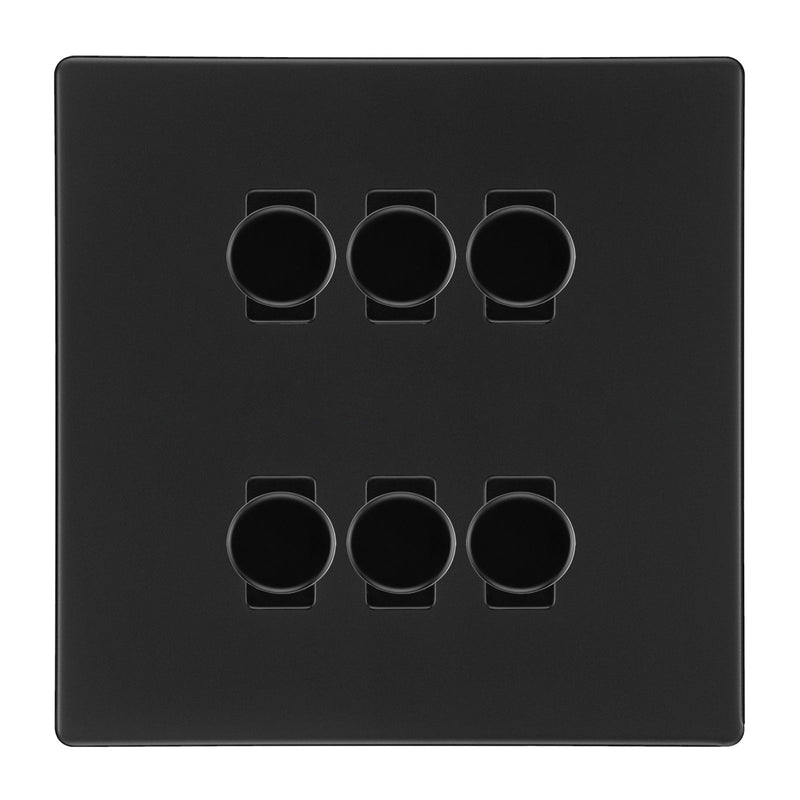

BG Screwless Matt Black 6 Gang 2 Way Trailing Edge Dimmer LED Custom Grid Switch

The dimmer switches are ONLY compatible with trailing edge LED bulbs (Not compatible with leading edge). Please check that the bulbs you are using are compatible with the dimmer before purchasing.

Please note that this switch will come in a grid format.

You will be sent the following parts all supplied by BG;

  • RFR68FP - 1x 6 & 8 Gang Mounting Frame
  • RFFB6 - 1x 6 Gang Face Plate
  • RFBDTR - 6x Dimmer Switch
  • MC503 - 1x Flush Mounting Metal Back Box

Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.

Dimmer Module Technical Specifications

Standard(s)

BS EN 60669-2-1

Voltage

200-250V AC

Load Rating (Max/Min per module)

Dimmable LED



5-100W

Tungsten/Incandescent

5-200W

Halogen

20-200W

Dimmable Compact Flourescent (CFL)

5-100W

Type

Trailing Edge

Terminal Capacity

4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm²

RoHS Directive

Yes

WEEE Directive

Yes

Mounting Box Depth (Min)

25mm
