BG RPCDWDTR Evolve Grid White 200W 2 Way Intelligent Trailing-Edge LED Push Rotary Dimmer Module

Save £1.30 Save £1.30
Original price £10.51
Original price £10.51 - Original price £10.51
Original price £10.51
Current price £9.21
£9.21 - £9.21
Current price £9.21

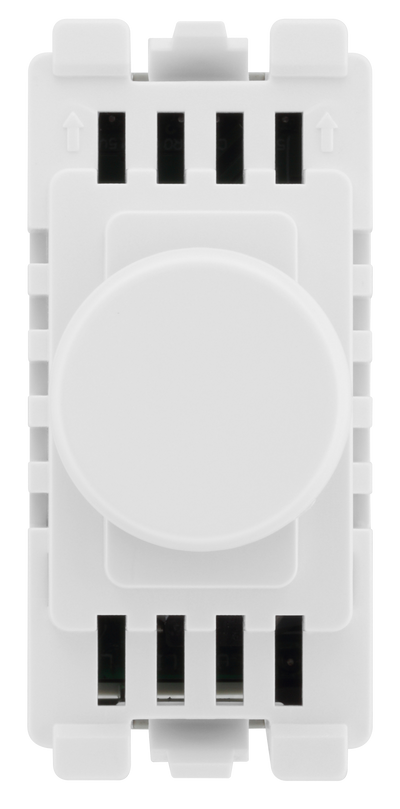

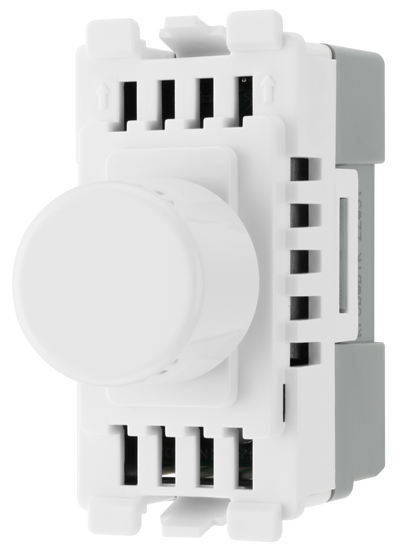

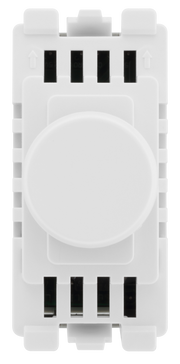

Evolve Grid White 200W 2 Way Intelligent Trailing-Edge LED Push Rotary Dimmer Module

About Product:

  • 5-200W load rating for LED and CFL (5-200W for incandescent, 20-200W for halogen)
  • Intelligent trailing-edge dimmer module
  • Features soft start dimming to lengthen lamp lifespan
  • White module - black module available
  • 2 way push on/off configuration with rotary control
  • Overload protection
  • Clearly marked terminals with backed out captive screws for easy installation
  • Requires 25mm minimum depth mounting box
  • Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²

The Grid module range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This trailing edge single dimmer module allows you to control your light levels and set the mood.
The intelligent electronic circuit monitors the connected load and provides a soft-start with protection against thermal, current and voltage overload, and is suitable for dimming LED, dimmable CFL's and traditional lighting.
The white finish matches the white frames on the BG Evolve brushed steel and pearlescent white Grid frontplates.
