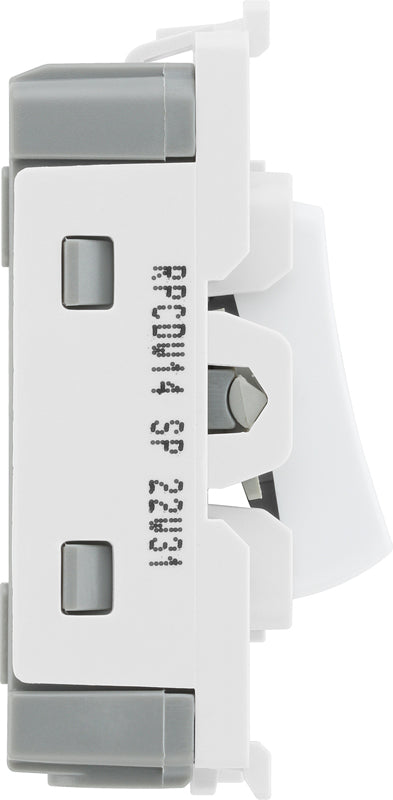

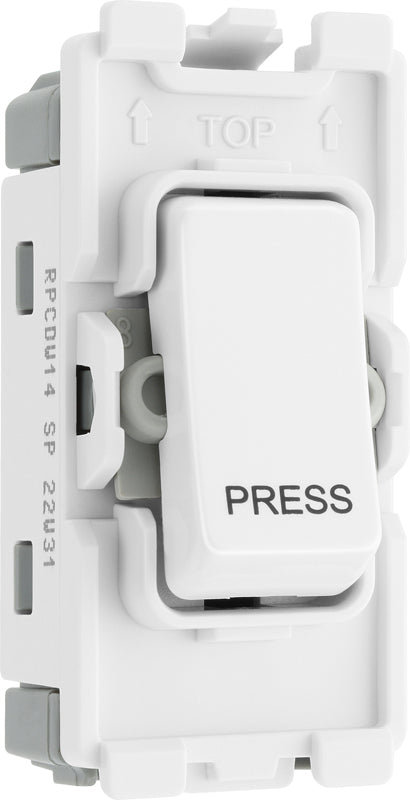

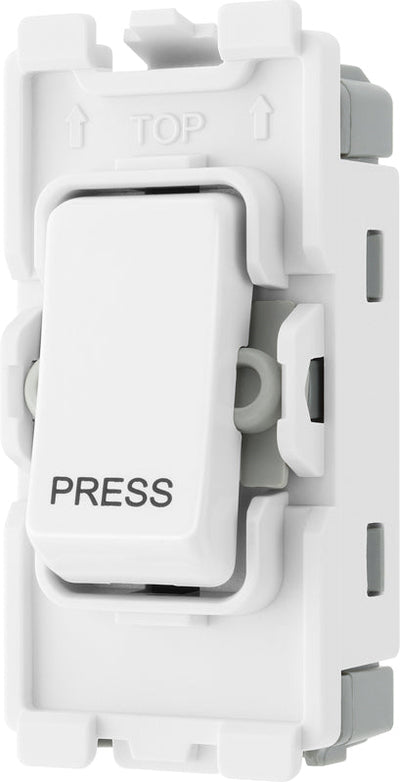

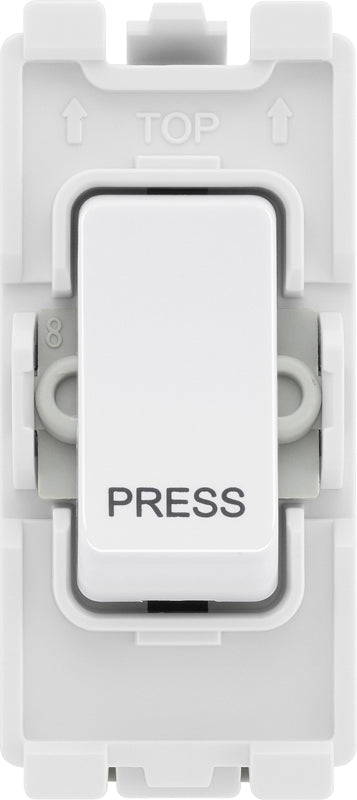

BG RPCDW14 Evolve Grid White 20A 20AX 1 Way 1 Pole PRESS Retractive Switch Module

£5.45 £2.88 SAVE 47%
Add to Wishlist
Description

Evolve Grid White 20A 20AX 1 Way 1 Pole PRESS Retractive Switch Module

About Product:

  • 20A rating - no derating for inductive
  • 1 way, retractive switch configuration
  • Single pole
  • Clips securely to frame - see below
  • White marked with PRESS rocker - black finish available

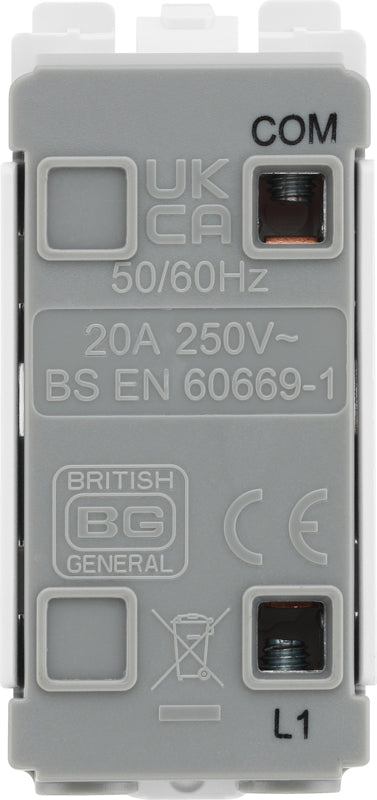

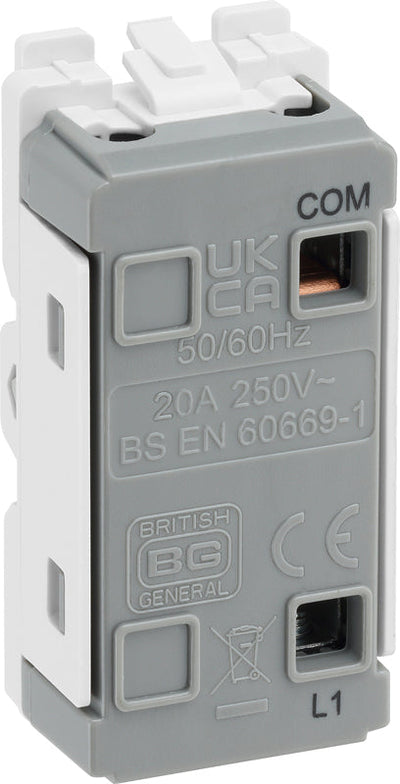

  • Clearly marked terminals with backed out captive screws for easy installation
  • Requires 25mm minimum depth mounting box
  • Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²

The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This retractive switch will return back to its original state once it has been pressed, and can be wired to be normally opened or normally closed, ideal for door exit and bell circuits.
The white finish matches the white frames on the BG Evolve brushed steel and pearlescent white Grid frontplates.
