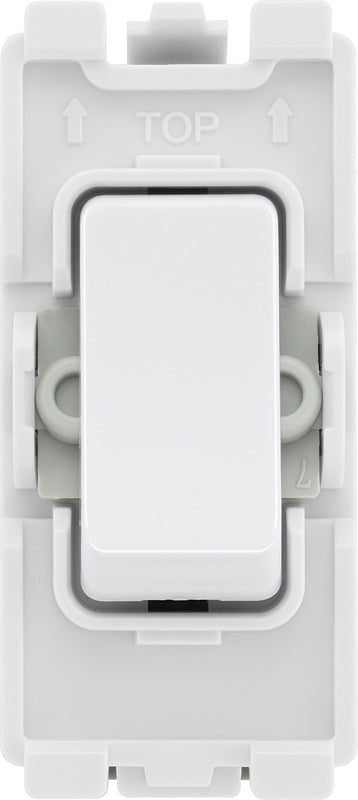

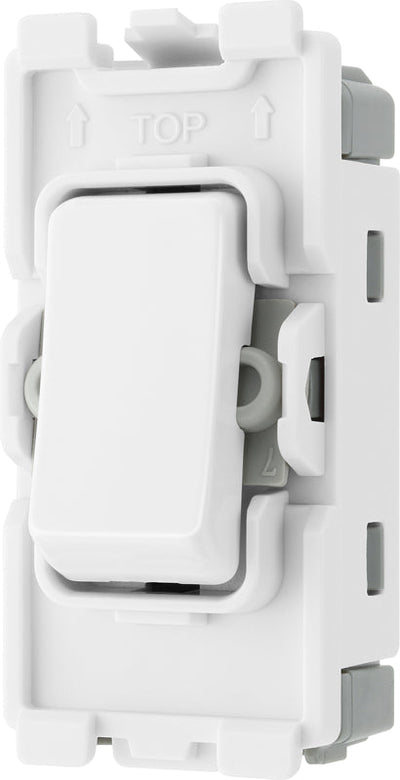

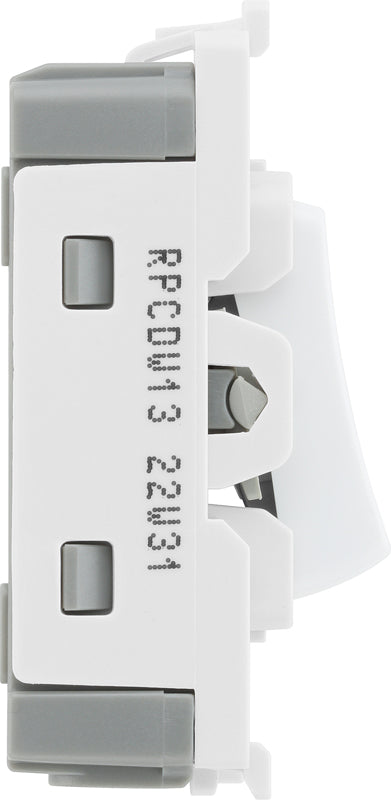

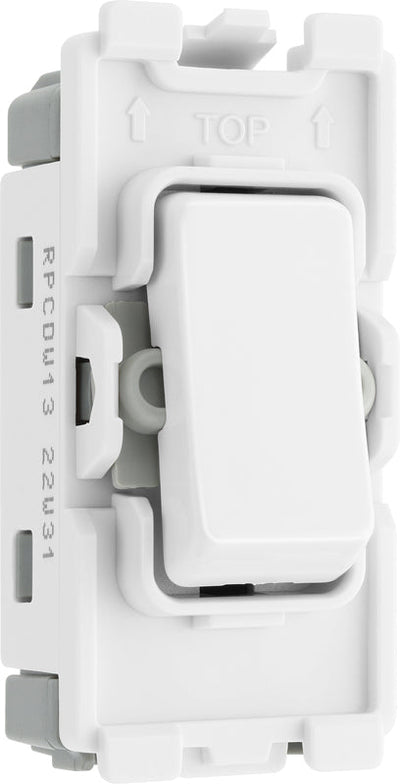

BG RPCDW13 Evolve Grid White 20A 20AX Intermediate 1 Pole Switch Module
Evolve Grid White 20A 20AX Intermediate 1 Pole Switch Module
- 20A rating - no derating for inductive
- Intermediate switch configuration
- Single pole
- Clips securely to frame - see below
- White rocker - black finish available

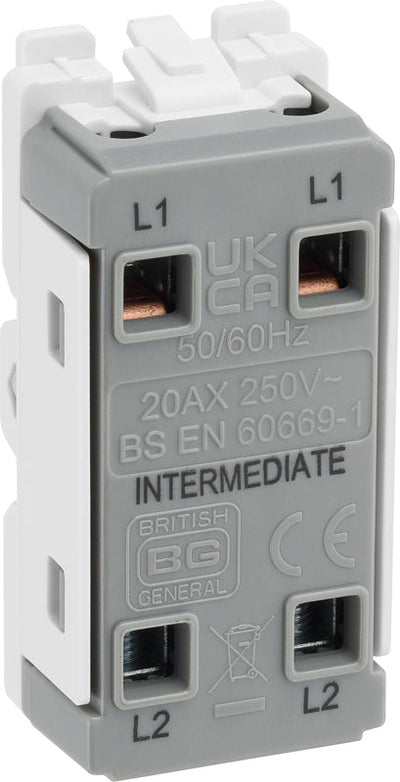

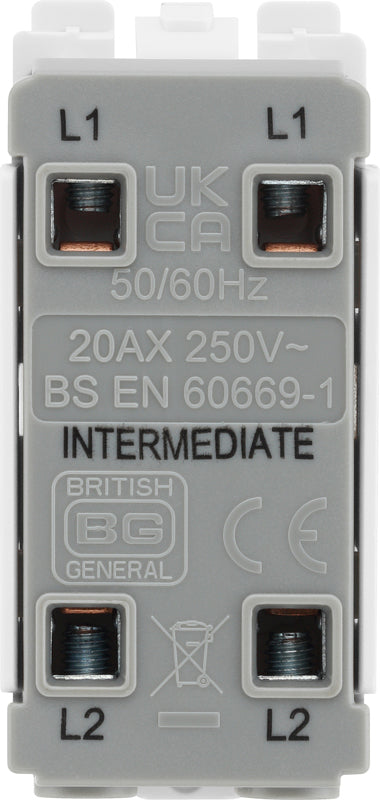

- Clearly marked terminals with backed out captive screws for easy installation
- Requires 25mm minimum depth mounting box
- Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This white 20A intermediate light switch module should be used as the middle switch when you need to operate one light from 3 different locations , such as at the top and bottom of the stairs and at the end of a hallway or landing. The white finish matches the white frames on the BG Evolve brushed steel and pearlescent white Grid frontplates.
