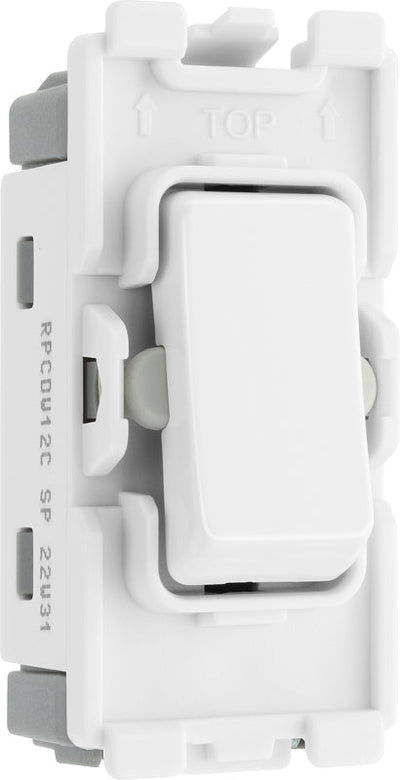

RPCDW12C Front - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

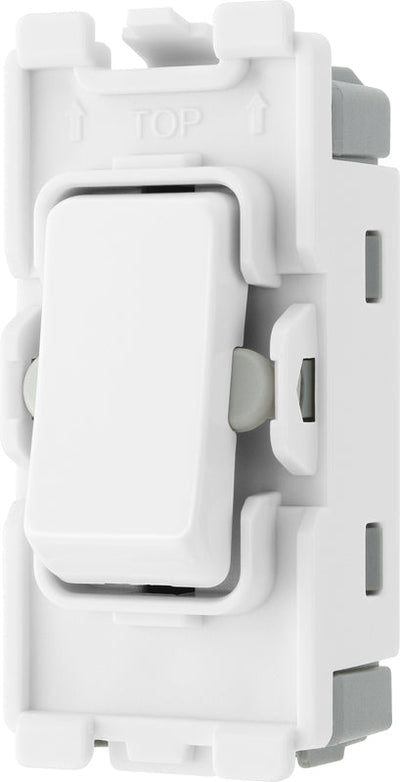

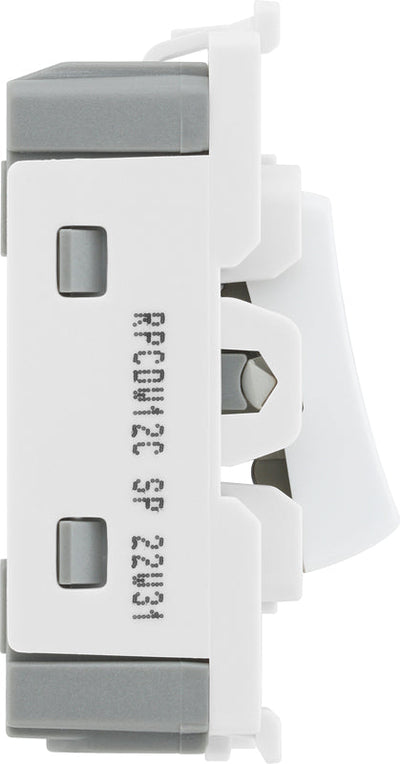

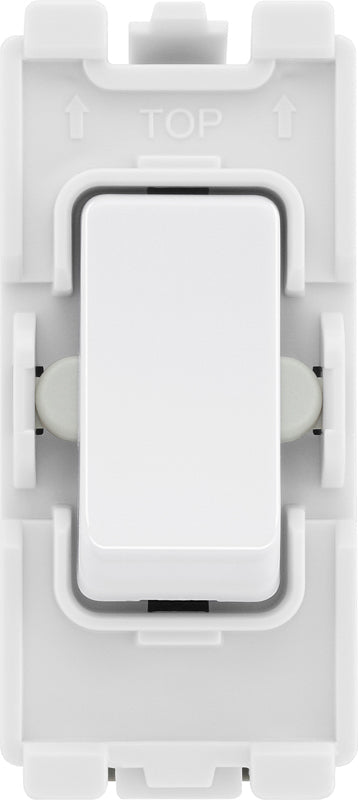

BG RPCDW12C Evolve Grid White 20A 20AX 2 Way 1 Pole Centre-Off Switch Module

by British General
Save £2.41 Save £2.41
£4.89
£4.89 - £4.89
£4.89
£2.48
£2.48 - £2.48
£2.48

Evolve Grid White 20A 20AX 2 Way 1 Pole Centre-Off Switch Module

About Product:

  • 20A rating - no derating for inductive
  • 2 way, centre-off switch configuration
  • Single pole
  • Clips securely to frame - see below
  • White rocker - black finish available

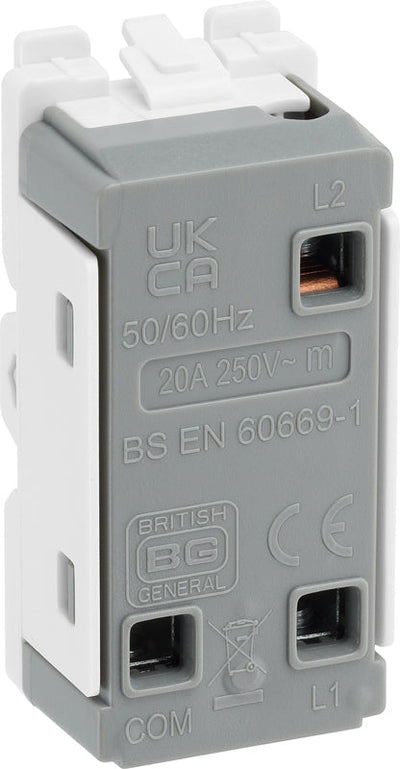

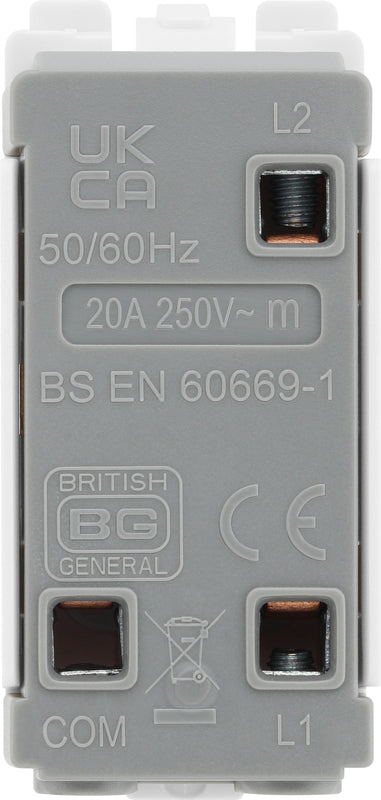

  • Clearly marked terminals with backed out captive screws for easy installation
  • Requires 25mm minimum depth mounting box
  • Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²

The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This 20A two way single pole switch module has a centre off position for dual circuit control.
The white finish matches the white frames on the BG Evolve brushed steel and pearlescent white Grid frontplates.
