BG RPCDTR Nexus Grid Polished Chrome 2 Way 200W Trailing Edge Dimmer Module

Nexus Grid Polished Chrome 2 Way 200W Trailing Edge Dimmer Module

About Product:

• Dimmable LED load: 5-100W
• Tungsten/Incandescent load: 5-200W
• Halogen load: 20-200W
• Dimmable compact flourescent (CFL) load: 5-100W
• Minimum mounting box depth: 25mm
• Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• Polished Chrome finish

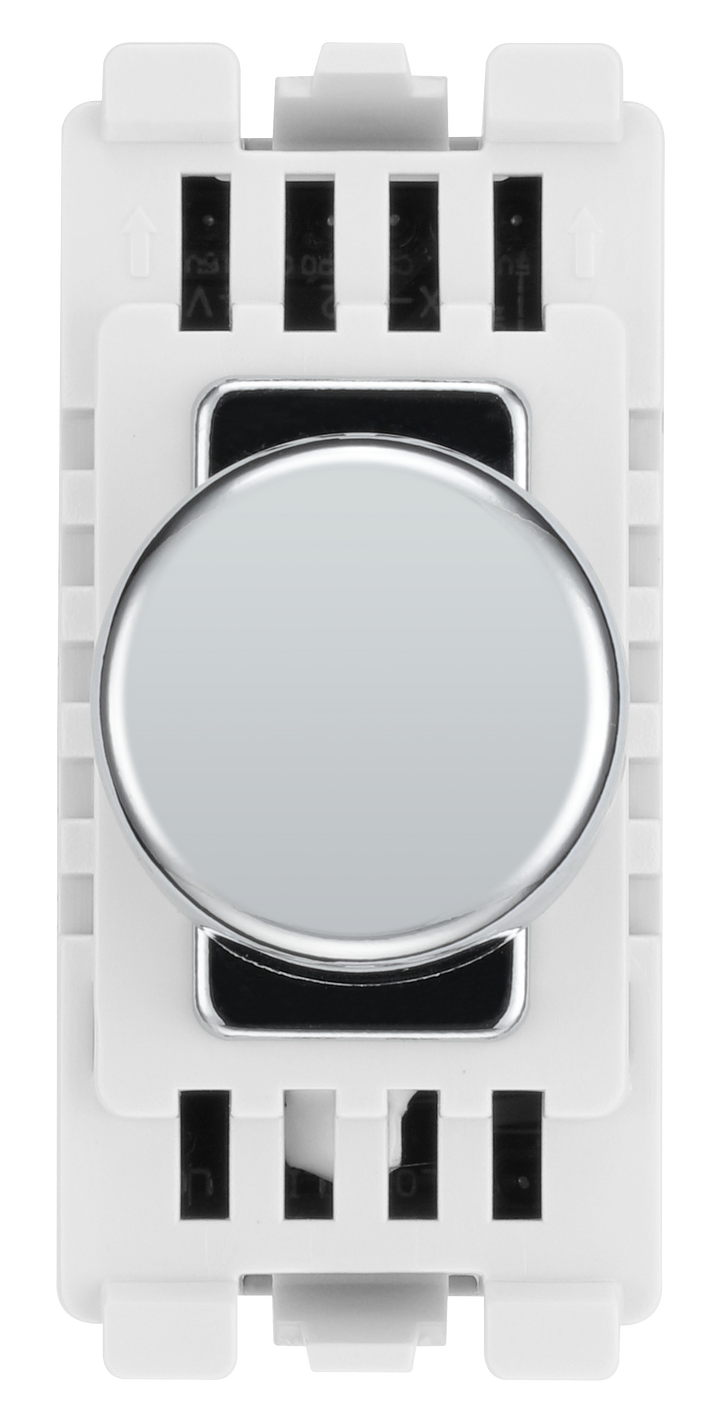

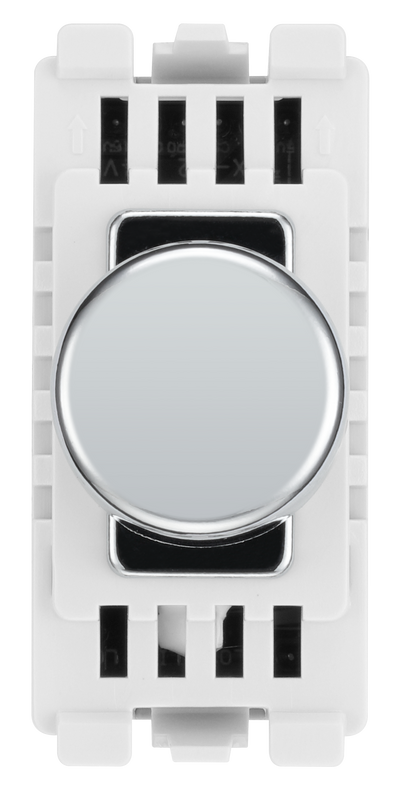

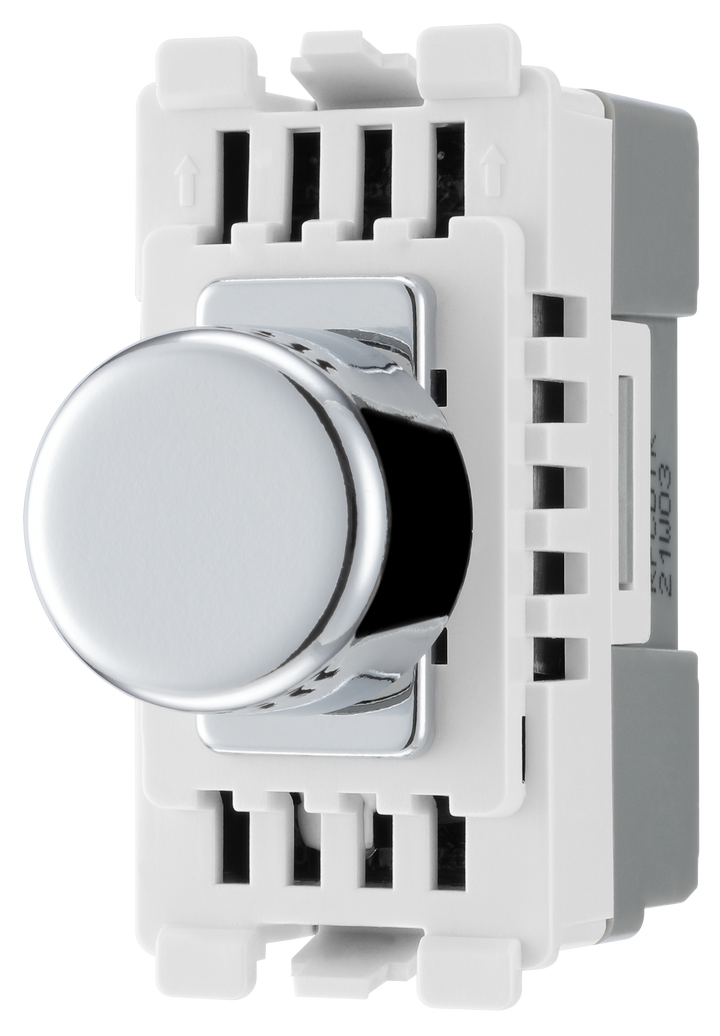

The BG Electrical Nexus Grid RPCDTR is a polished chrome 2-way trailing edge dimmer module, rated at 200W (100W for LED and CFL).

A trailing-edge dimmer module, the RPCDTR is suitable for a huge range of modern dimming solutions, whether LED, halogen, CFL or incandescent. Like all BG trailing edge modules, it has a raft of features; a soft-start to extend the life of lamps, silent operation, in-built overload protection and lower-wattage support to prevent flicker.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.

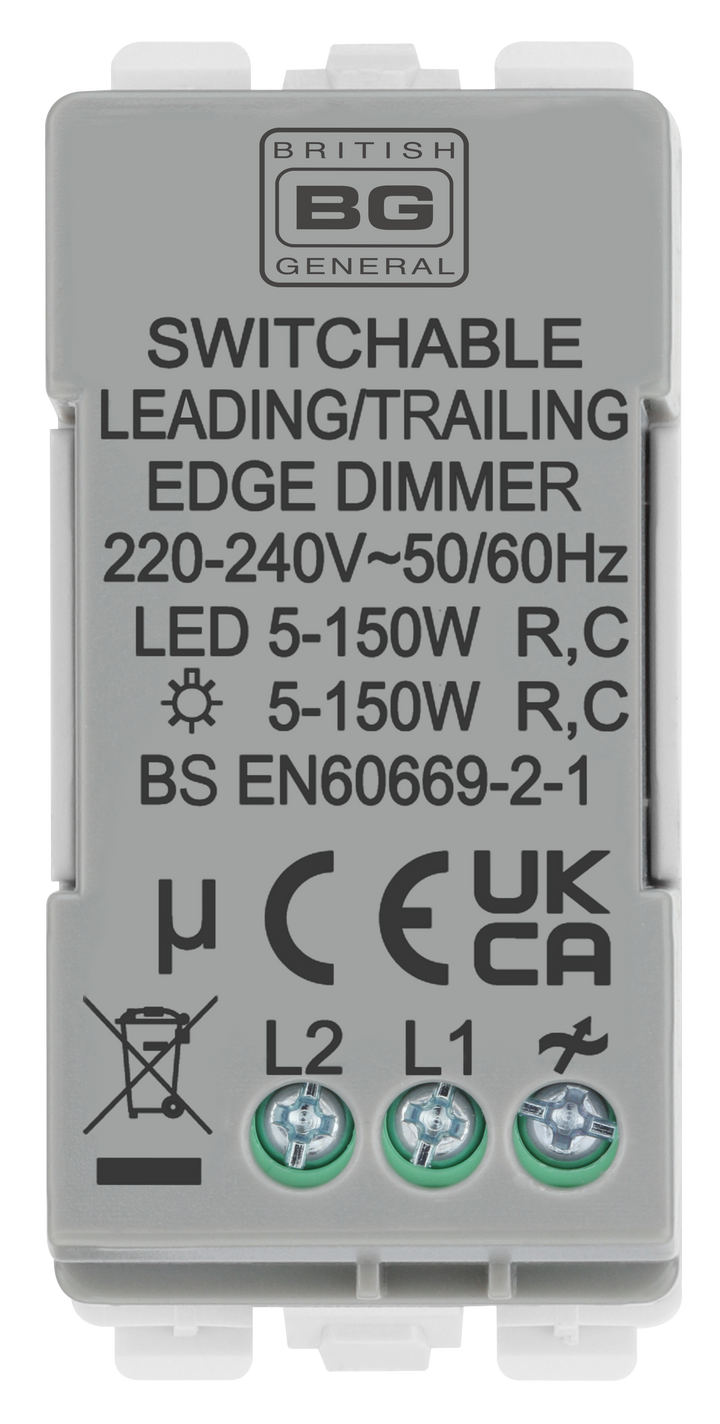

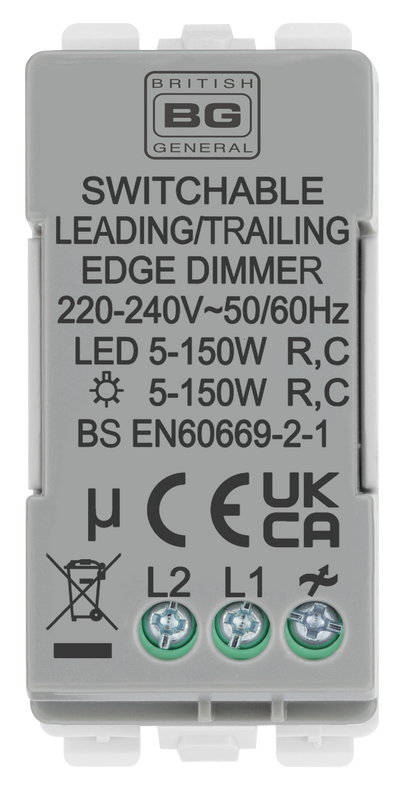

To aid installation, the RPCDTR comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
