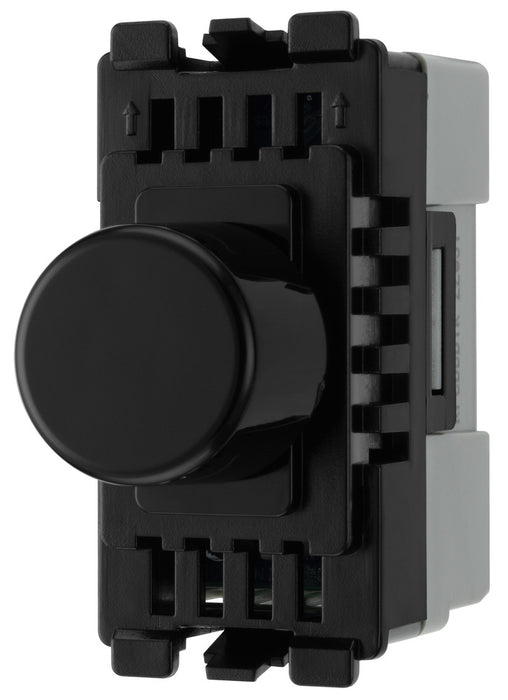

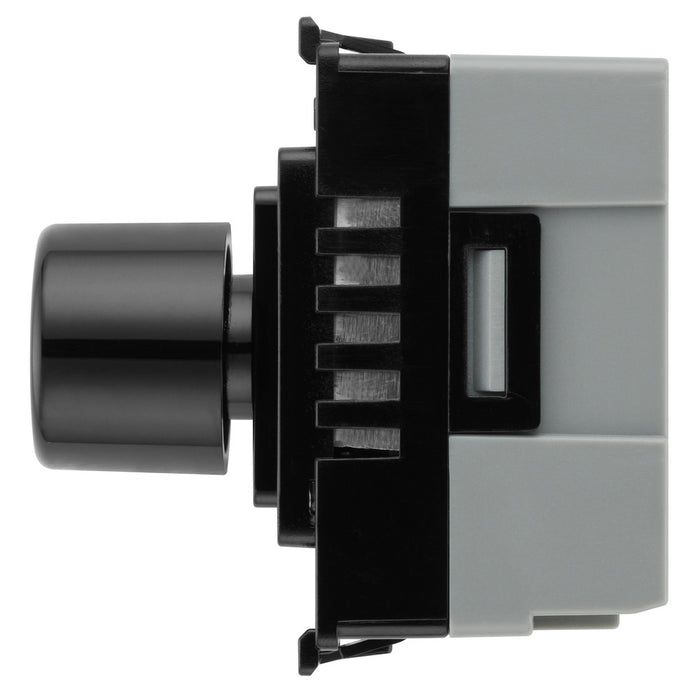

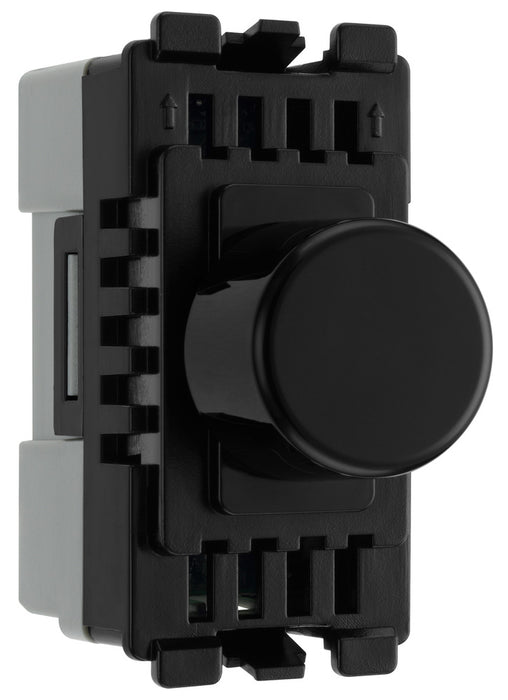

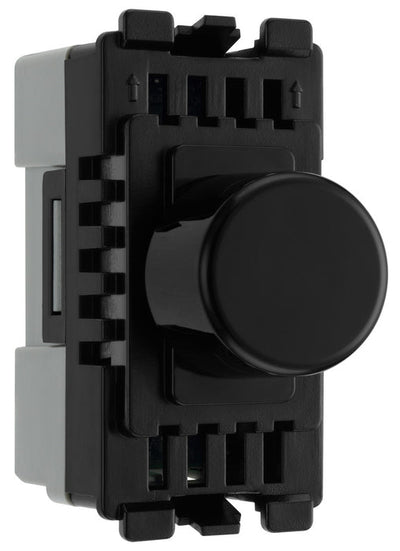

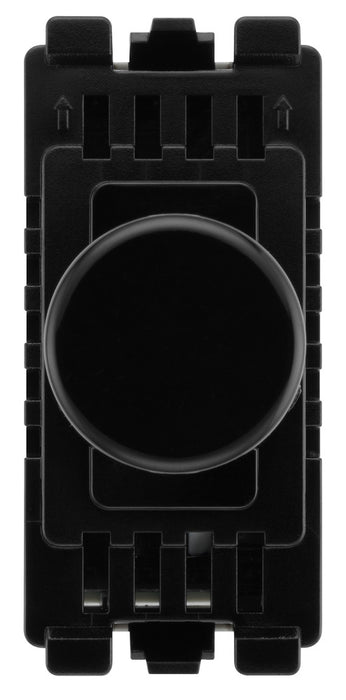

BG RPCDBDLT Evolve Grid Black 200W 2 Way Intelligent Trailing-Edge LED Push Rotary Dimmer Module

Evolve Grid Black 200W 2 Way Intelligent Trailing-Edge LED Push Rotary Dimmer Module

Please Note:
We will supply whichever model (RPCDBDTR or RPCDBDLT) is available at the time of your order. Both models maintain the BG standards and features.

About Product:

• 5-200W load rating for LED and CFL (5-200W for incandescent, 20-200W for halogen)
• Intelligent trailing-edge dimmer module
• Features soft start dimming to lengthen lamp lifespan
• Black module - white module available
• 2 way push on/off configuration with rotary control
• Overload protection

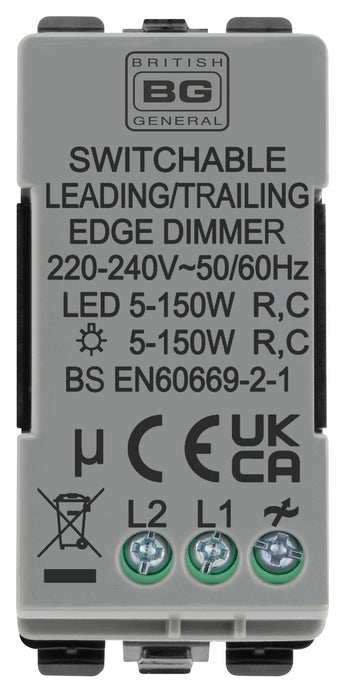

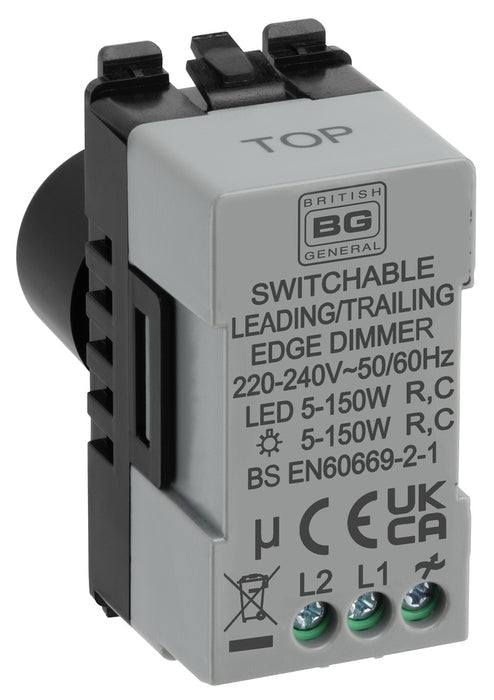

• Clearly marked terminals with backed out captive screws for easy installation
• Requires 25mm minimum depth mounting box
• Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²

The Grid module range from British General allows you to build your own module configuration with a variety of combinations and finishes. This trailing edge single dimmer module allows you to control your light levels and set the mood.

The intelligent electronic circuit monitors the connected load and provides a soft-start with protection against thermal, current and voltage overload, and is suitable for dimming LED, dimmable CFL's and traditional lighting. The black finish matches the black frames on the BG Evolve frontplates.
