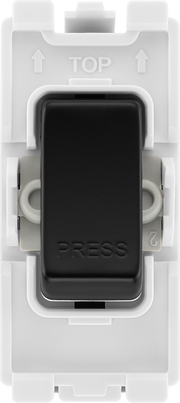

BG RFB14 Nexus Grid Matt Black 20AX 1 Way Retractive Switch Module
Description
BG RFB14 Nexus Grid Matt Black 20AX 1 Way Retractive Switch Module
- Simple secure 'locate & clip' fitting to frame
- Retractive switch with 'press' written on the switch
- Captive backed out terminal screws for fast installation
- Module to be installed with Grid frame and plate
- Single pole
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes. This matt black finish retractive switch module will return back to its original state once it has been pressed and can be wired to be normally opened or normally closed, ideal for door exit and bell circuits.
Product Details
Dimensions
| Unpacked Height (mm) | 54 |
| Unpacked Width (mm) | 25 |
| Unpacked Depth (mm) | 26 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | N/A |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 25 |
| Packed Depth (mm) | 26 |
| Packed Height (mm) | 54 |
| Packed Gross Weight (kg) | 0.023 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765238861 |
