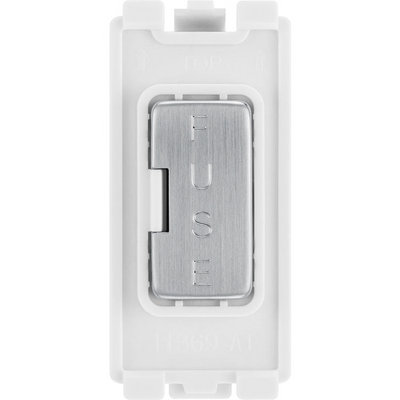

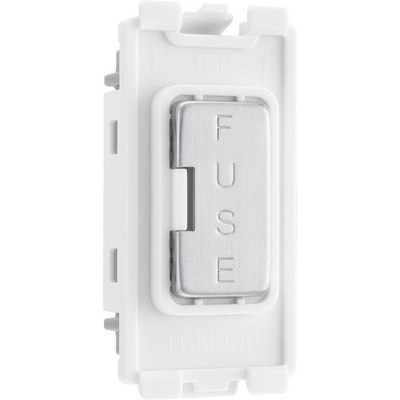

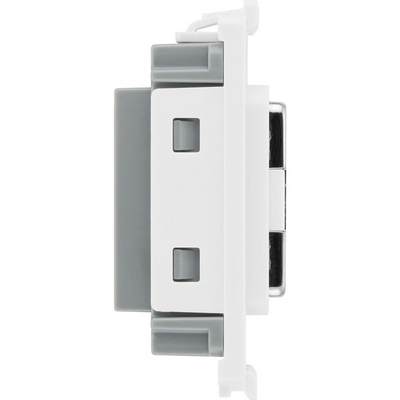

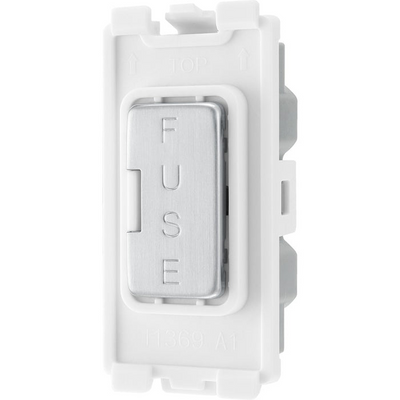

BG RBSFUSE Nexus Grid Brushed Steel 13A Fuse Holder Module
Nexus Grid Brushed Steel 13A Fuse Holder Module
About Product:
- Rating: 13A, 250V
- Brushed Steel finish
- Minimum mounting box depth: 25mm
The BG Electrical Nexus Grid RBSFUSE is a brushed stainless-steel fuse holder, supplied with 13A fuse.
Suitable for a wide range of circuit protection and supplied with a 13A fuse ready for most handheld and small household appliances, the RBSFUSE is an excellent pairing option for a modular switch or flex outlet.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. The brushed stainless-steel finish has a sleek, modern look and is lightly lacquered to reduce the impression of fingerprints.

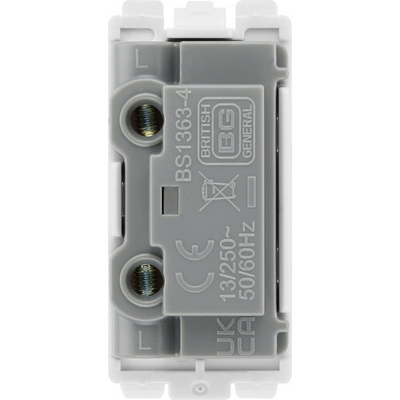

To aid installation, the RBSFUSE comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
| General Colour | Brushed Steel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Not Applicable |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Not Applicable |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
