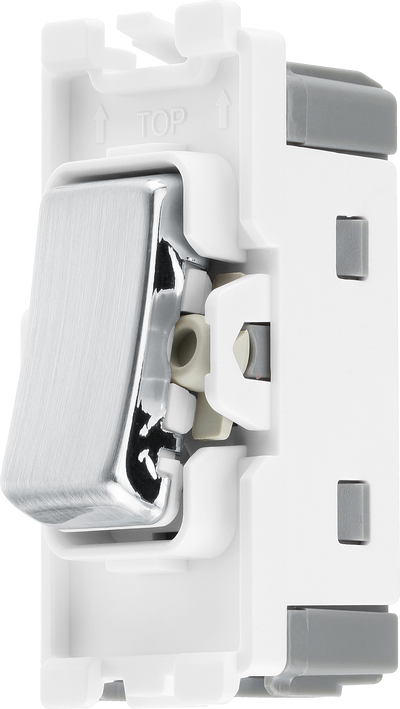

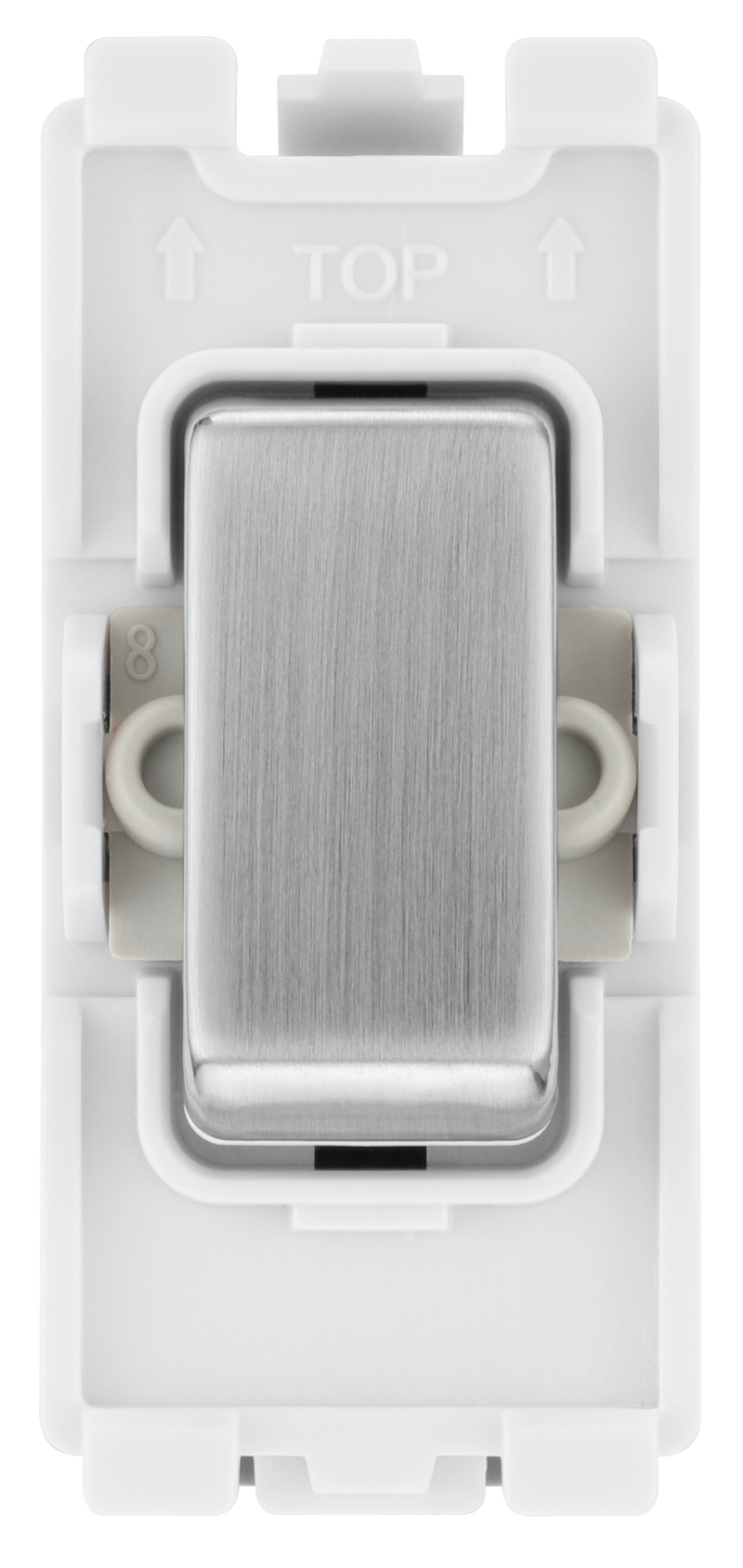

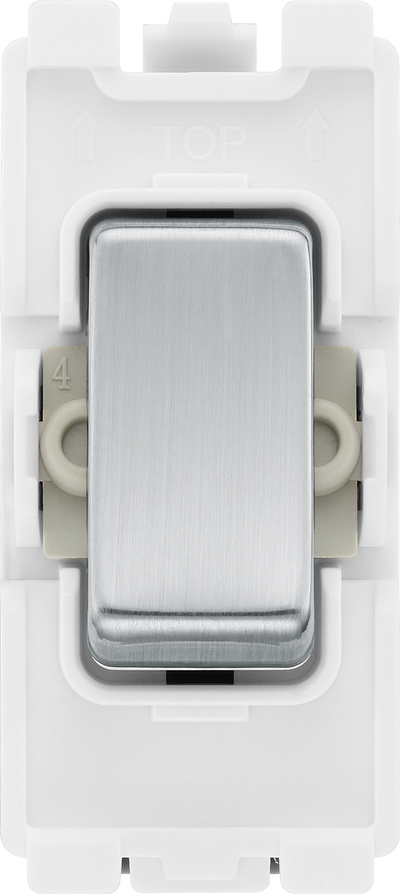

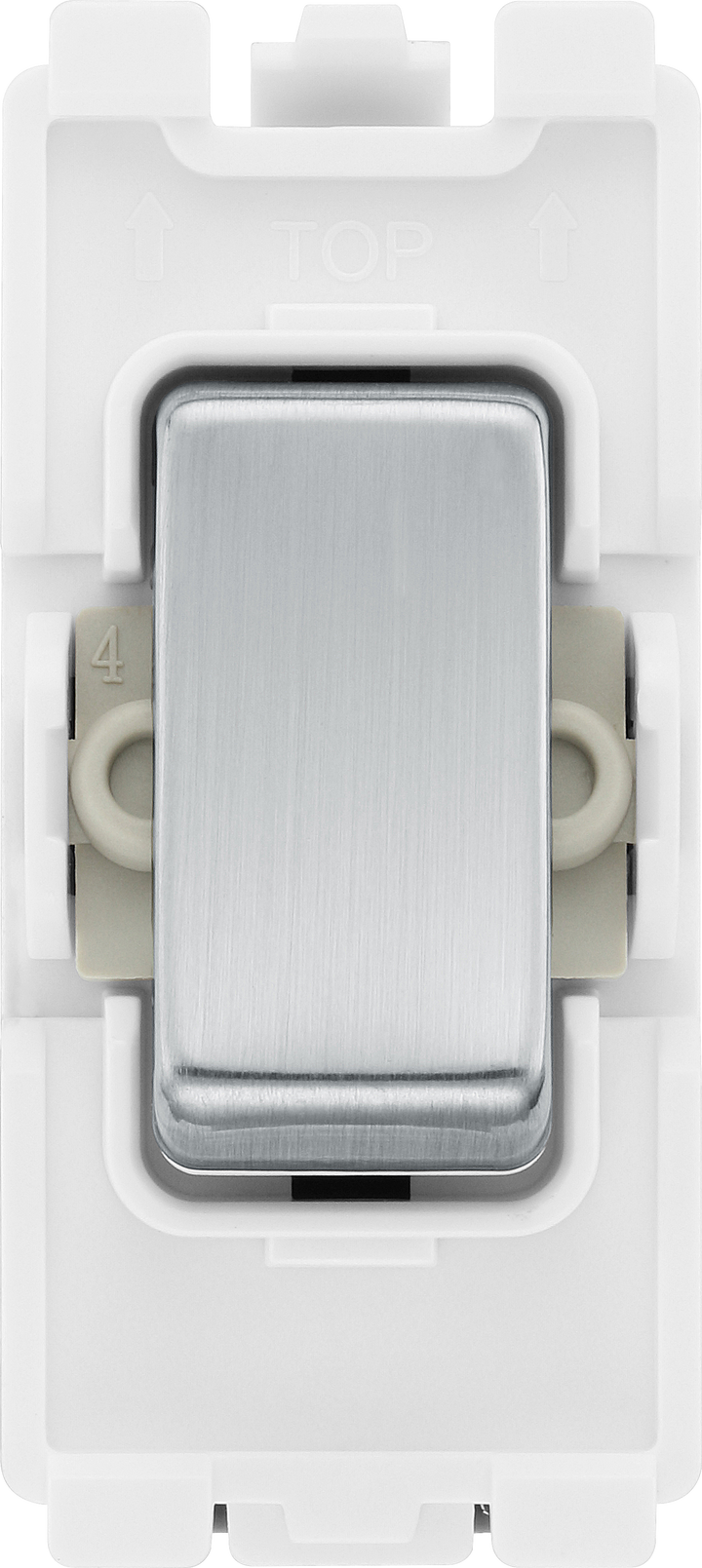

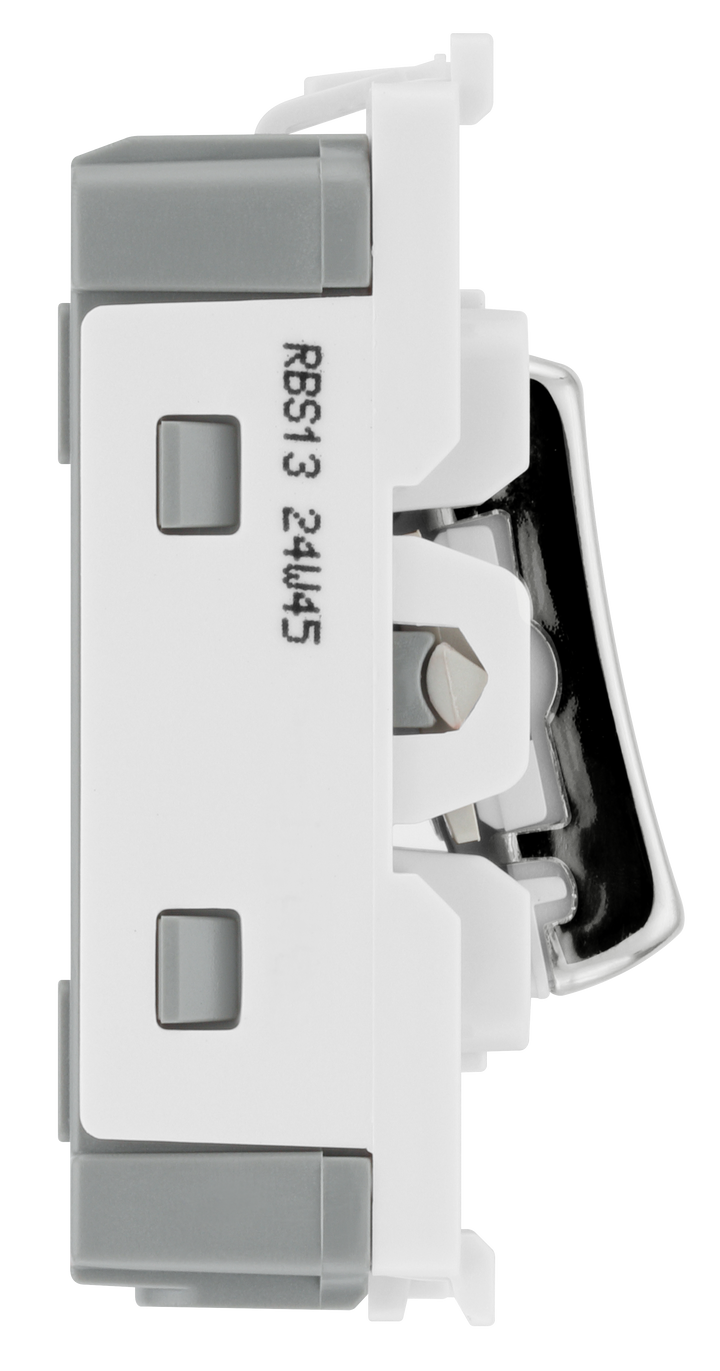

BG RBS13 Nexus Grid Brushed Steel 20AX Intermediate Switch Module
BG RBS13 Nexus Grid Brushed Steel 20AX Intermediate Switch Module
About Product:
- Rating: 20 Amp, 20AX Inductive
- Intermediate
- Brushed Steel finish
- Minimum mounting box depth: 25mm

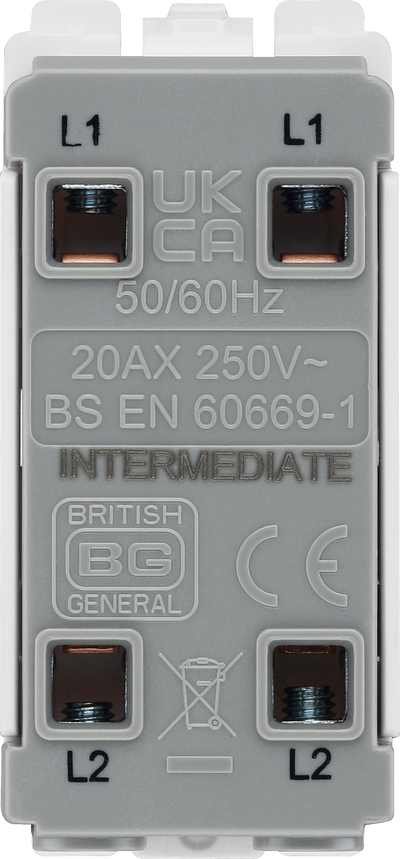

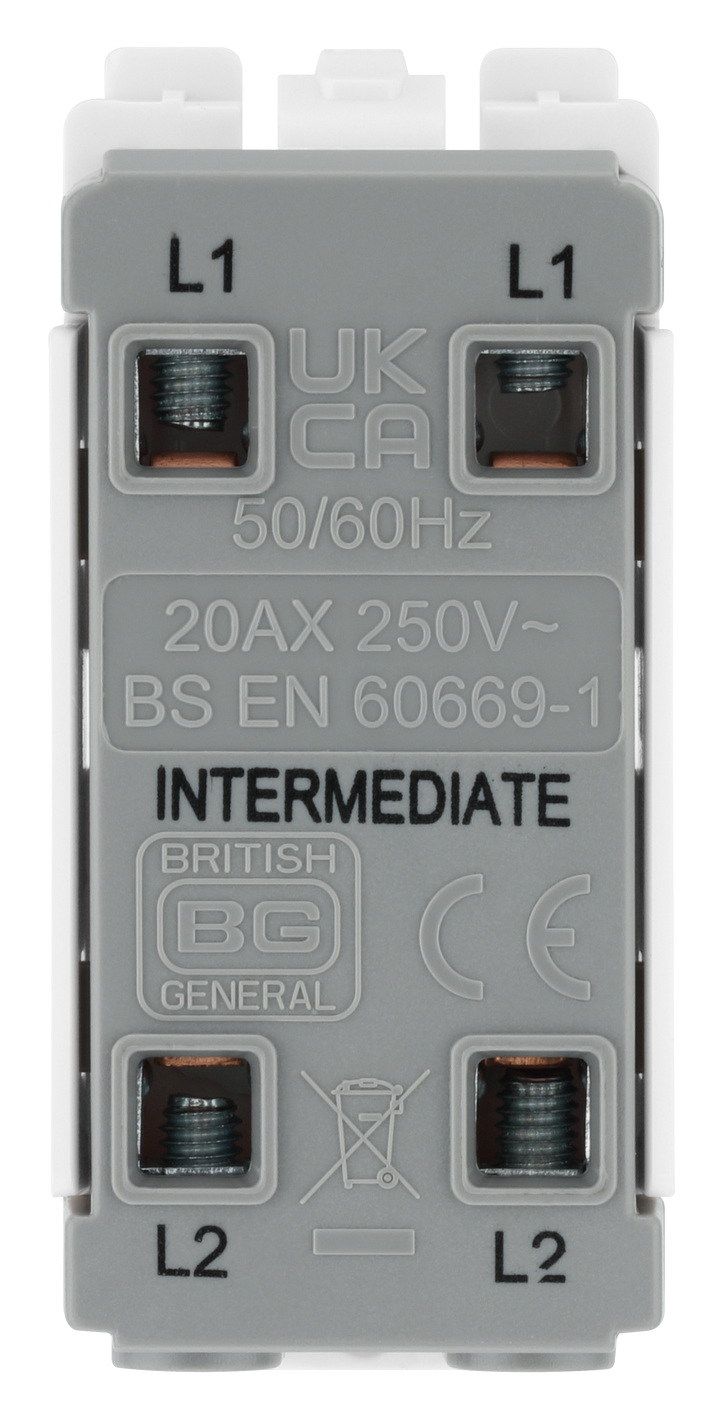

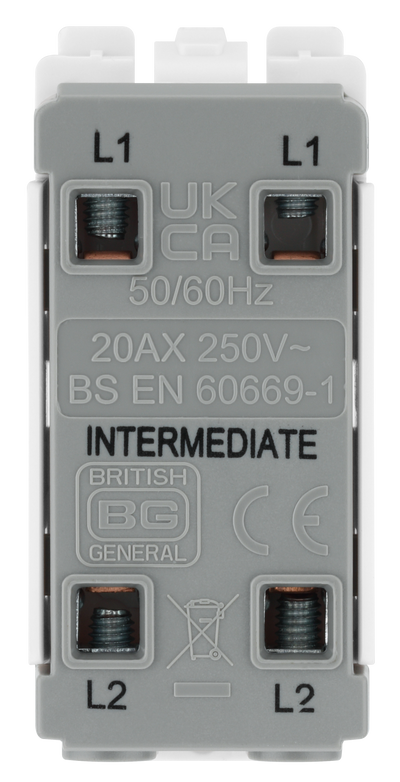

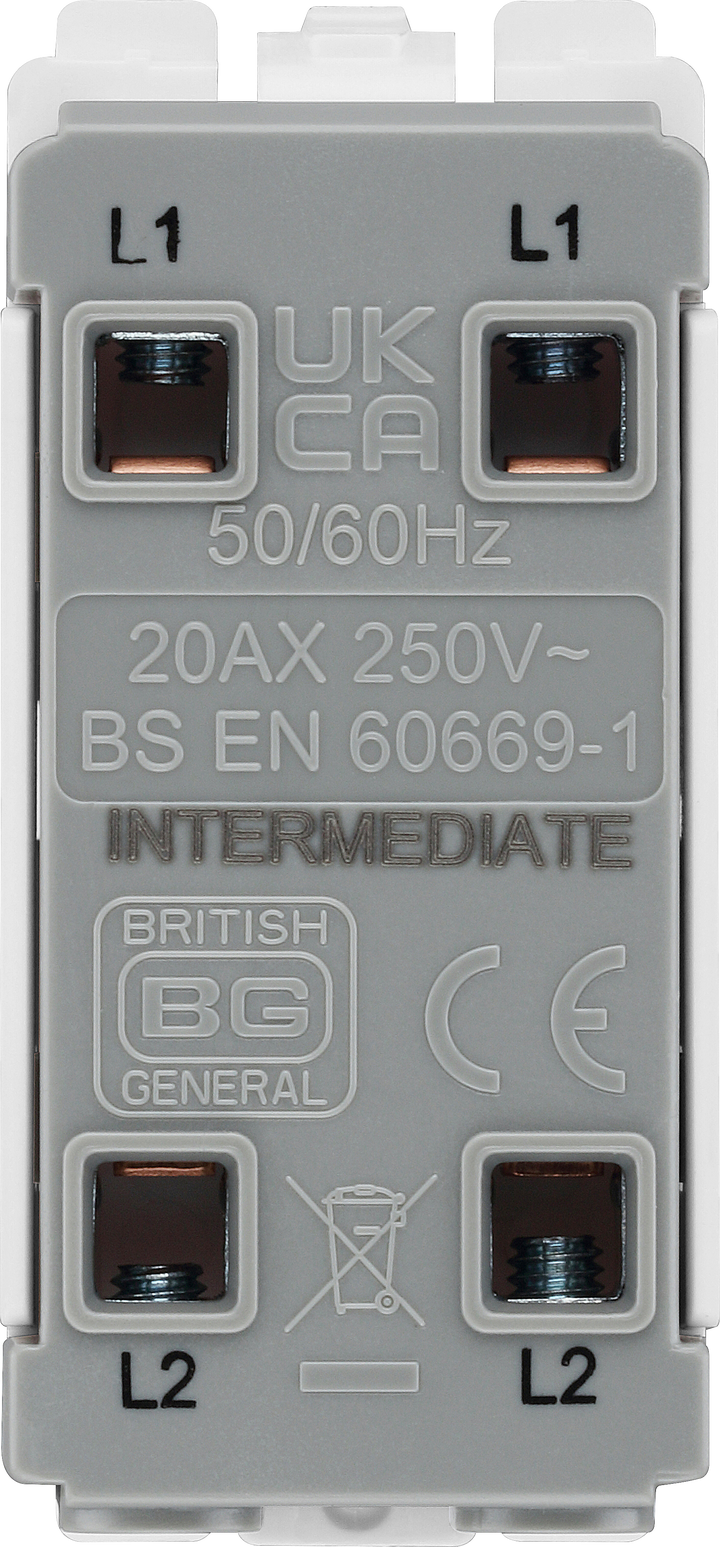

- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

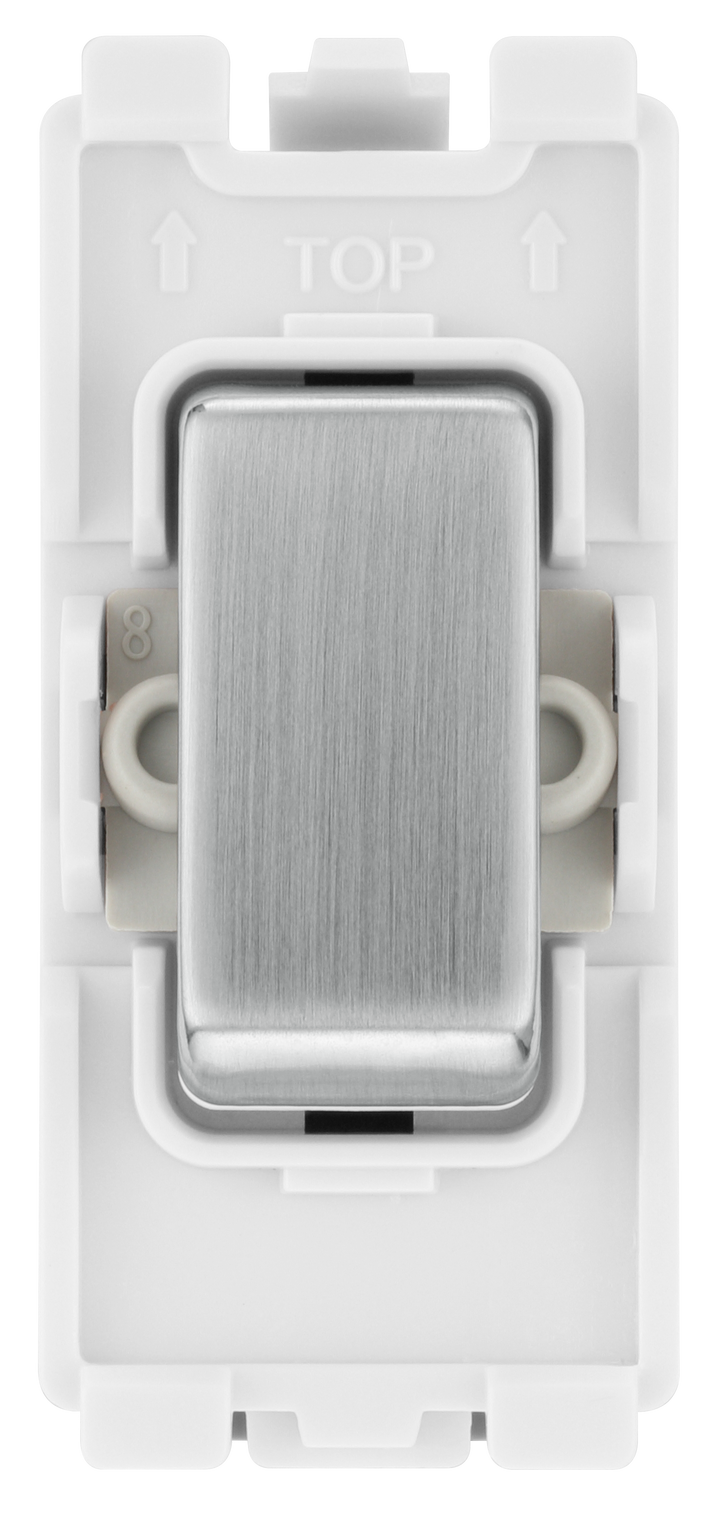

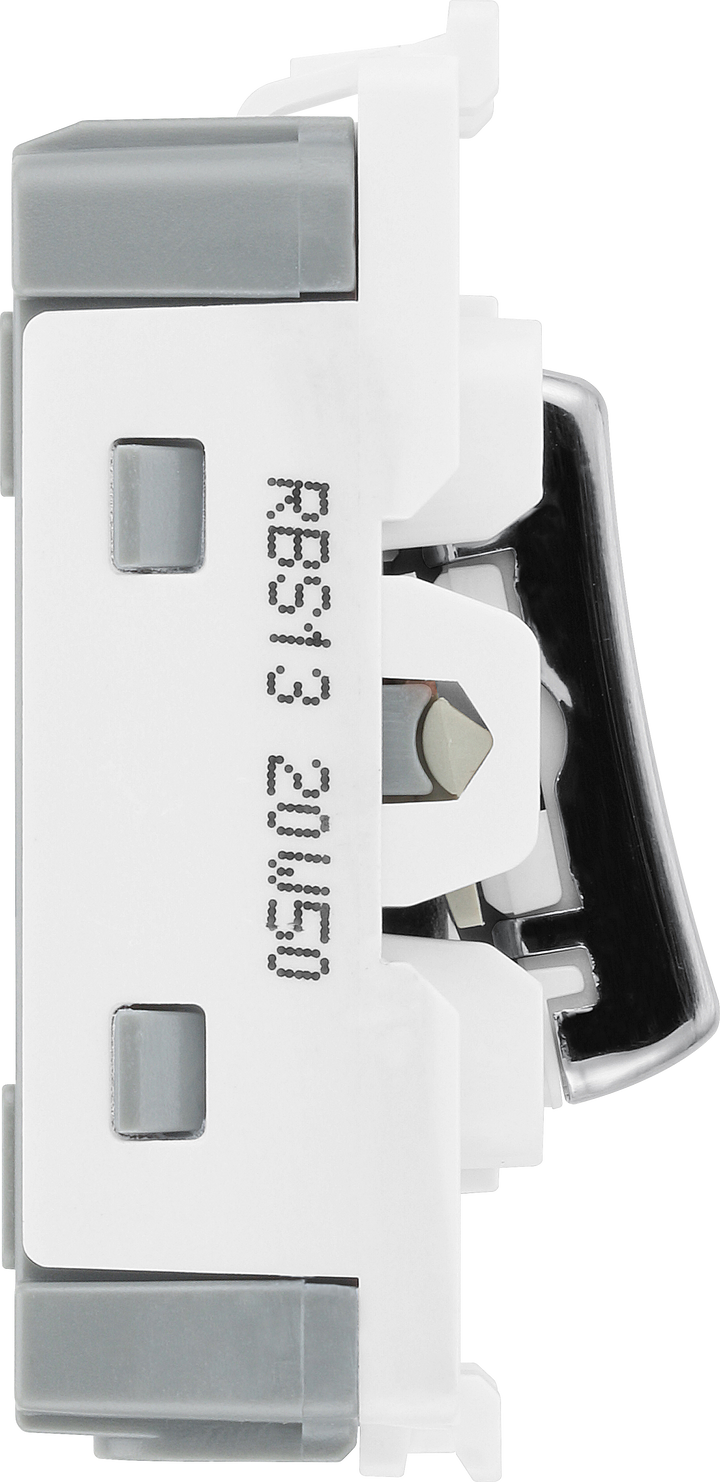

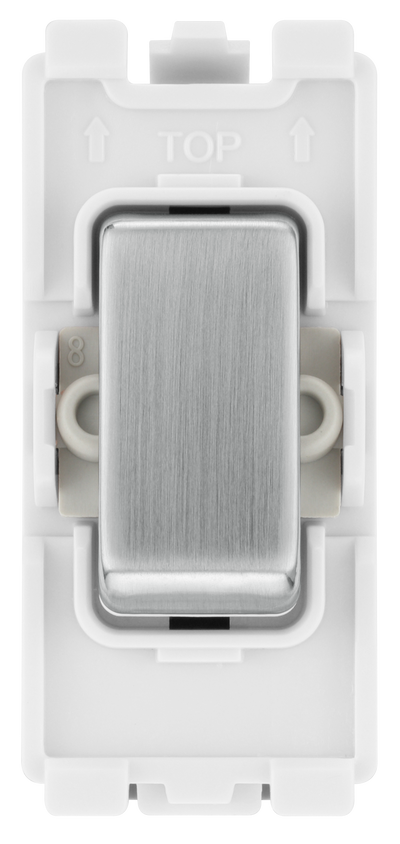

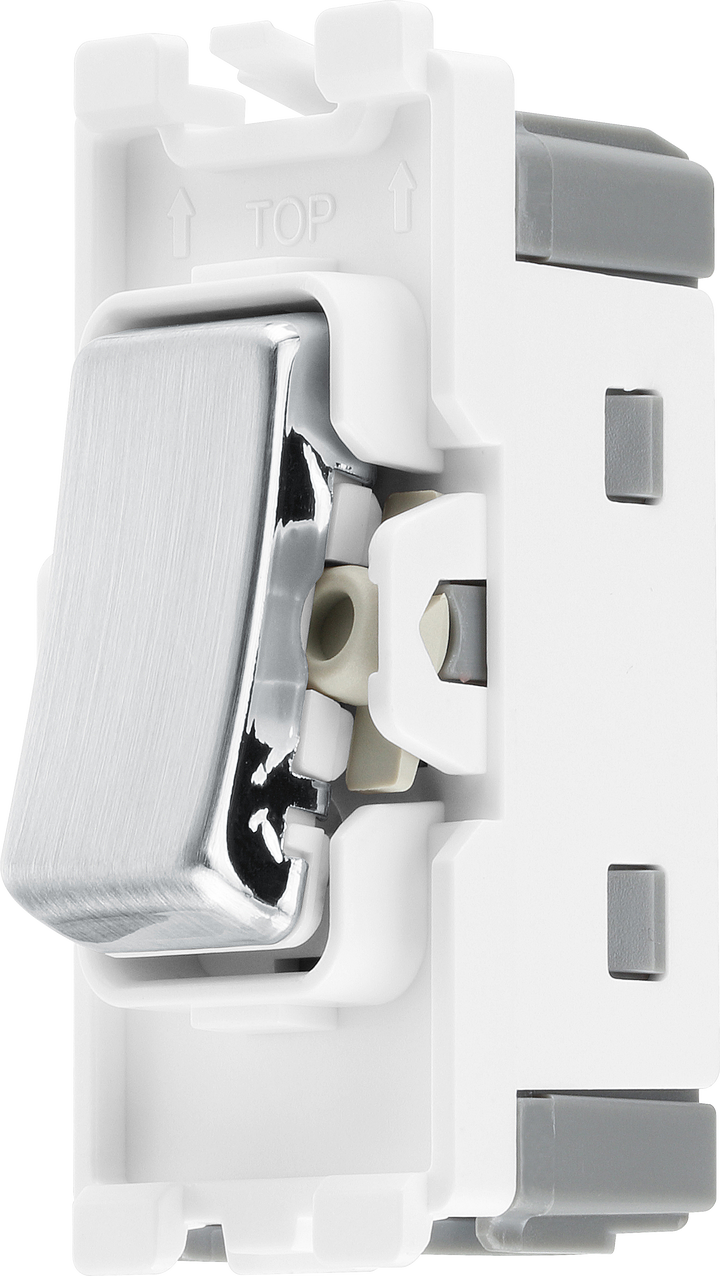

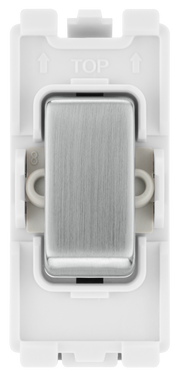

The BG Electrical Nexus Grid RBS13 is a brushed stainless-steel single-pole intermediate switch module, rated at 20AX.
A versatile switch module, the RBS13 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. An intermediate switch, it’s particularly suited to light fittings that need controlling from three or more locations, such as some stairwells.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. The brushed stainless-steel finish has a sleek, modern look and is lightly lacquered to reduce the impression of fingerprints.
To aid installation, the RBS13 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
