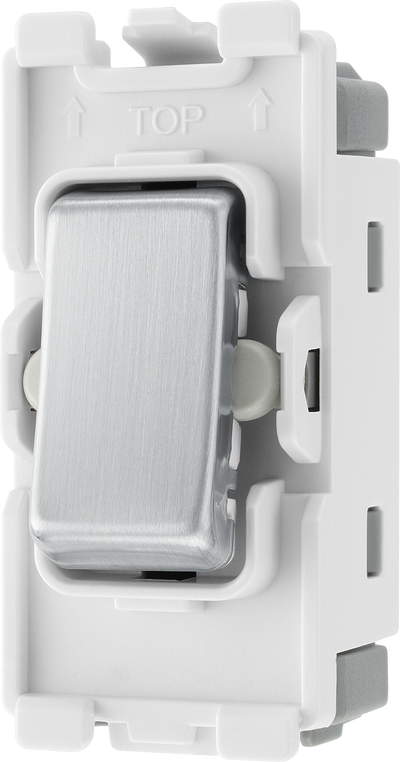

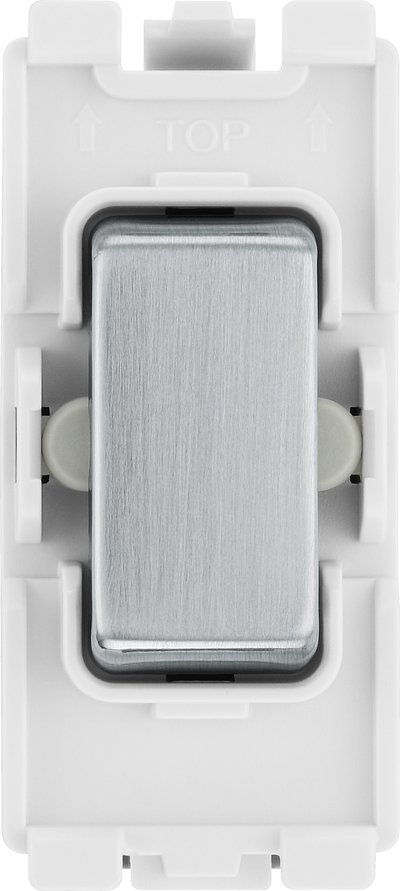

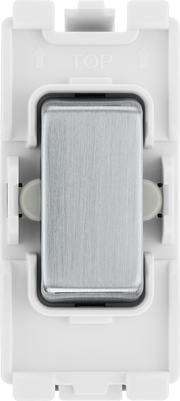

RBS12C Front - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
RBS12C Front - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

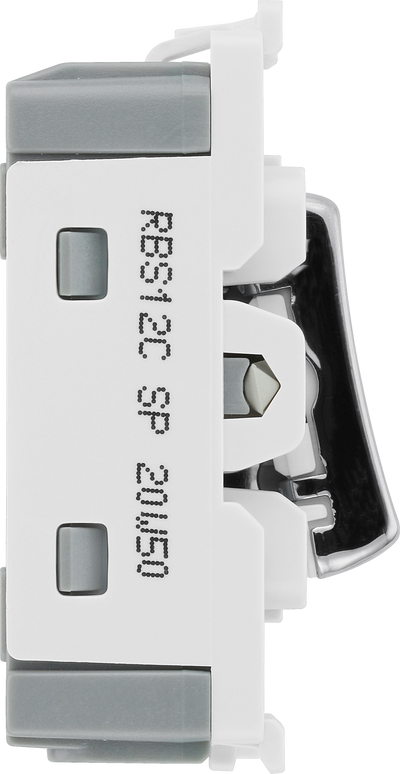

RBS12C Side - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

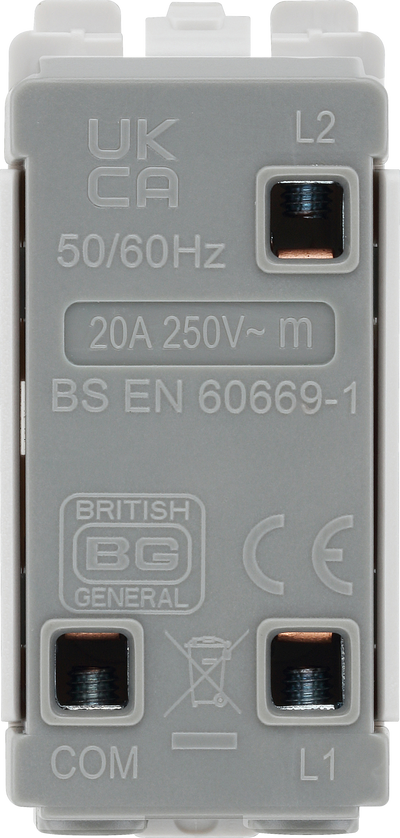

RBS12C Back- The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

BG RBS12C Nexus Grid Brushed Steel 20AX 2 Way 1 Pole Centre-Off Switch Module

£4.43 £3.69 SAVE 17%
Add to Wishlist
Description

Nexus Grid Brushed Steel 20AX 2 Way 1 Pole Centre-Off Switch Module

About Product:

  • Rating: 20 Amp, 20AX Inductive
  • 2 Way, single pole
  • Brushed Steel finish
  • Minimum mounting box depth: 25mm
  • Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

The BG Electrical Nexus Grid RBS12C is a brushed stainless-steel single-pole 2-way centre-off switch module, rated at 20AX.

A versatile switch module, the RBS12C is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. With a centre-off switch it can be controlled from two directions making it suitable for awkward locations.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. The brushed stainless-steel finish has a sleek, modern look and is lightly lacquered to reduce the impression of fingerprints.

To aid installation, the RBS12C comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
