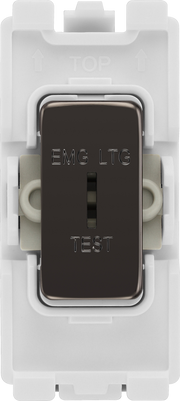

BG RBN12EL Nexus Grid Black Nickel 2 Way Secret Key Switch Module 20AX Single Pole Printed EMG LTG TEST

Secret Key Switch Module 2 Way Printed 'EMG LTG TEST' - Black Nickel

About Product:

• Rating: 20 Amp, 20AX Inductive
• 2 Way, single pole
• Black Nickel finish
• Printed with "EMG LTG TEST"
• Minimum mounting box depth: 25mm

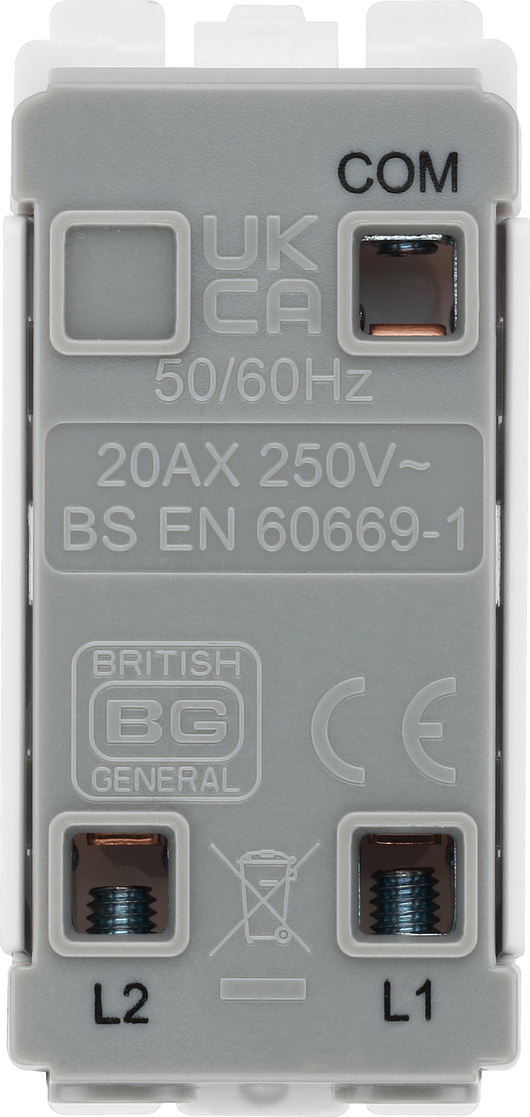

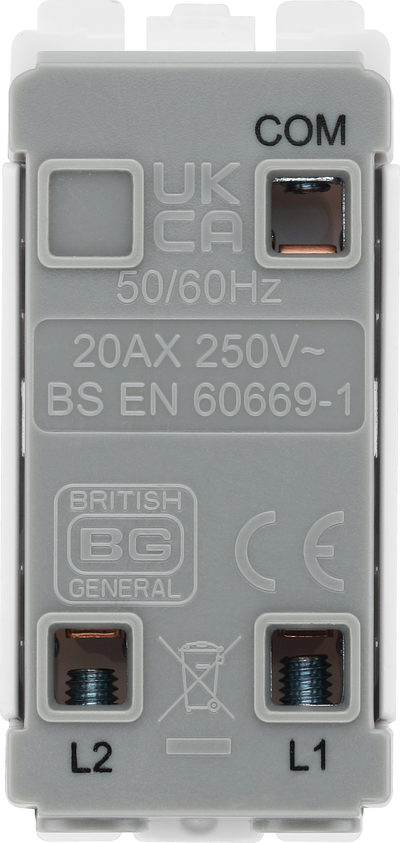

• Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• Manufactured to BS EN 60669-2-1

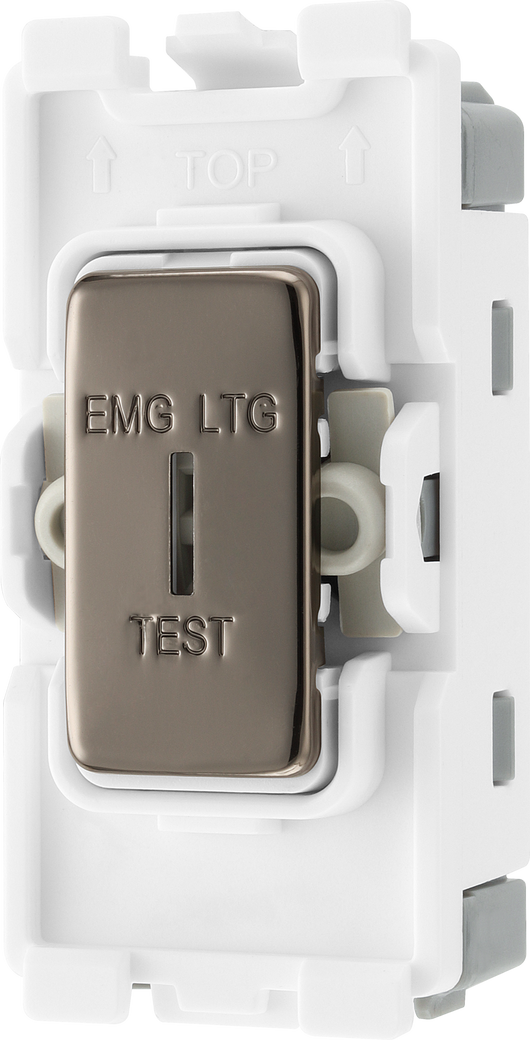

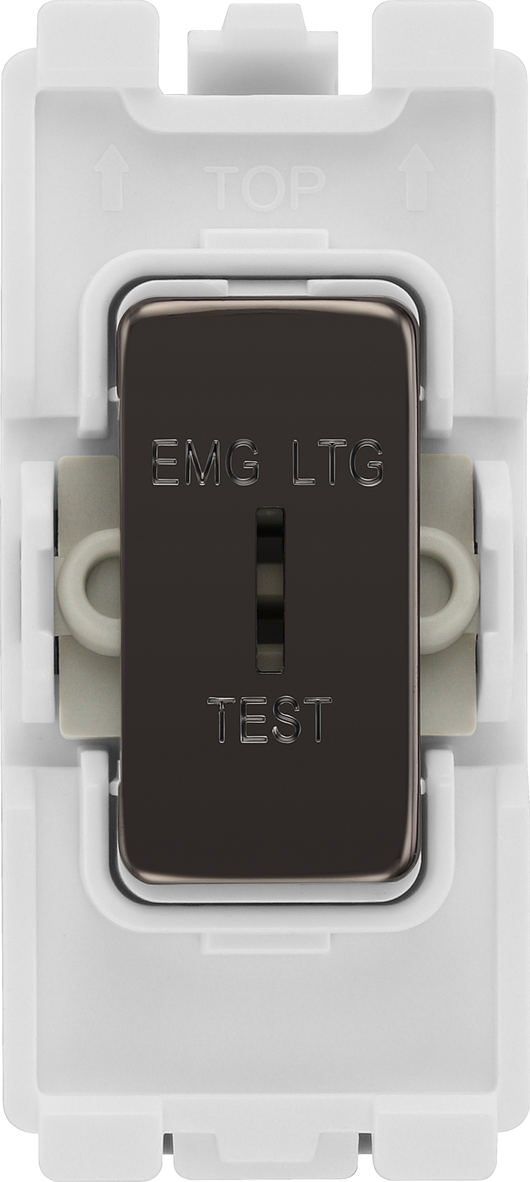

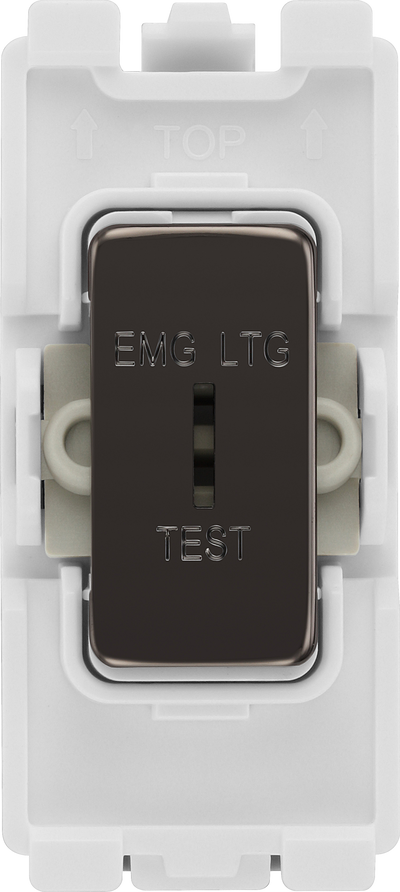

The BG Electrical Nexus Grid RBN12EL is a black nickel single-pole 2-way secret key switch module, marked with EMG LTG TEST and rated at 20AX.

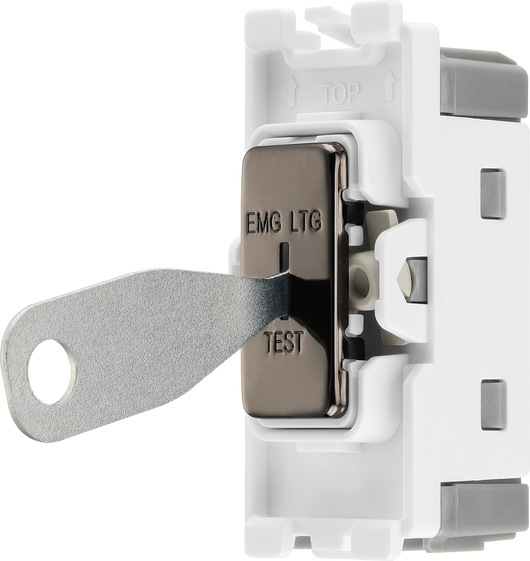

A versatile switch module, the RBN12EL is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. Using a secret-key system, the RBN12EL is particularly suited to use with emergency lighting – insert the key and move up and down for safe, secure use.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.br>
To aid installation, the RBN12EL comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.

As per the entire Nexus Grid range, the RBN12EL comes with a 25-year manufacturer’s warranty for peace of mind. It is manufactured to BS EN 60669-2-1 to comply with national regulations.
