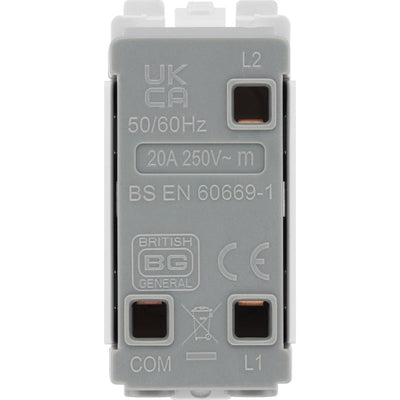

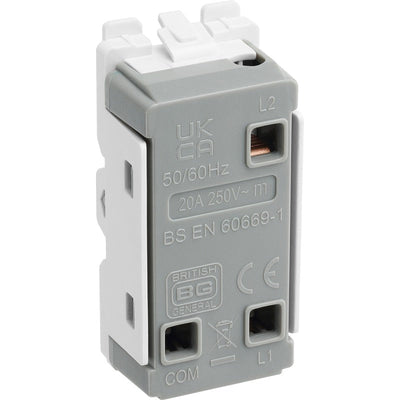

BG R14C Nexus Grid White 20A 20AX 2 Way 1 Pole Retractive PRESS Centre-Off Switch Module

Nexus Grid White 20A 20AX 2 Way 1 Pole Retractive PRESS Centre-Off Switch Module

About Product:

• Rating: 20 Amp, 20AX Inductive
• 2 Way, Retractive
• White finish
• Minimum mounting box depth: 25mm
• Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

The BG Electrical Nexus Grid R14C is a white single-pole 2-way centre-off retractive switch module, rated at 20AX.

A versatile switch module, the R14C is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. As a retractive switch, it will return to its original position after pressing and is a suitable option for door entry systems as well as lighting.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. Made of white urea, this switch has inherent anti-microbial properties that make it ideal for anywhere with a heavy traffic.

To aid installation, the R14C comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module
