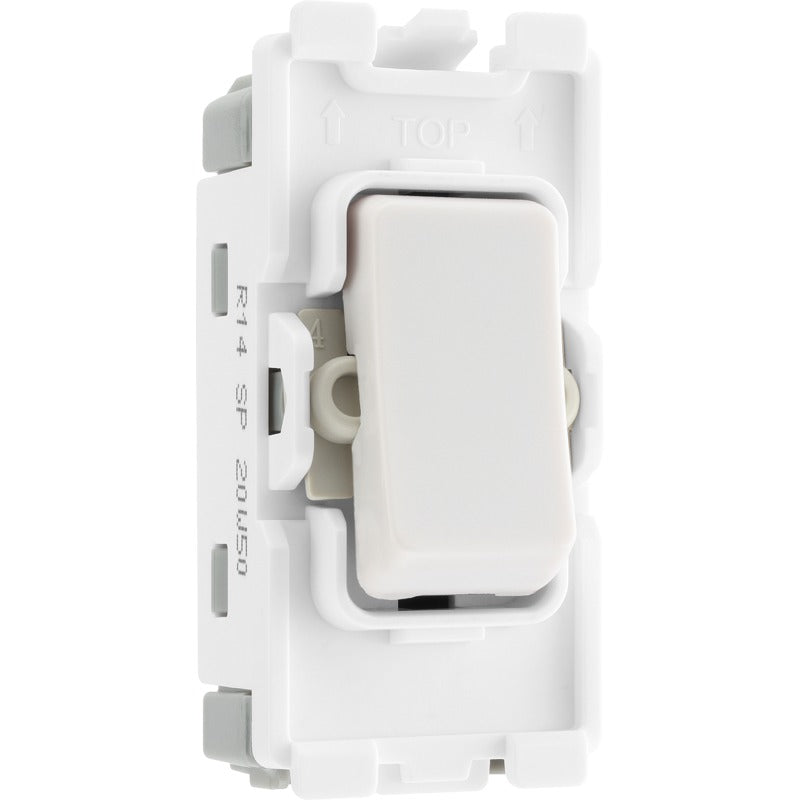

R14 Front - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
R14 Front - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
R14 Side - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

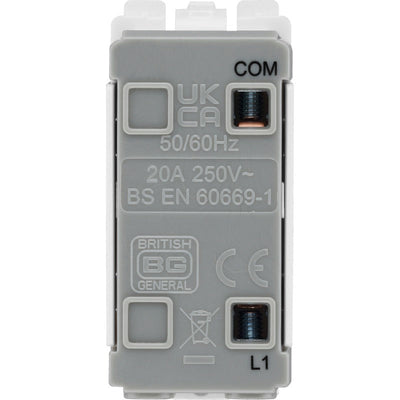

R14 Back - The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

BG R14 Nexus Grid White 20A 20AX 1 Way 1 Pole Retractive PRESS Switch Module

£6.67 £3.12 SAVE 53%
Add to Wishlist
Description

Nexus Grid White 20A 20AX 1 Way 1 Pole Retractive PRESS Switch Module

About Product:

  • Rating: 20 Amp, 20AX Inductive
  • 2 Way, Retractive
  • White finish
  • Printed with "PRESS"
  • Minimum mounting box depth: 25mm
  • Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

The BG Electrical Nexus Grid R14 is a white single-pole 2-way retractive switch module, rated at 20AX.

A versatile switch module, the R14 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. As a retractive switch, it will return to its original position after pressing and is a suitable option for door entry systems as well as lighting.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. Made of white urea, this switch has inherent anti-microbial properties that make it ideal for anywhere with a heavy traffic.

To aid installation, the R14 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
