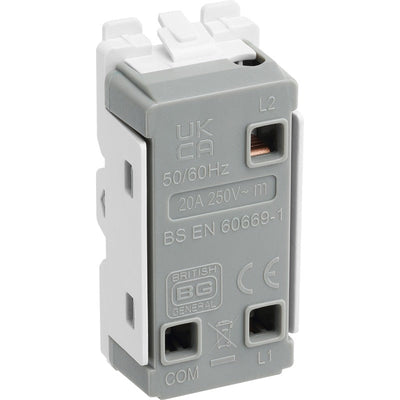

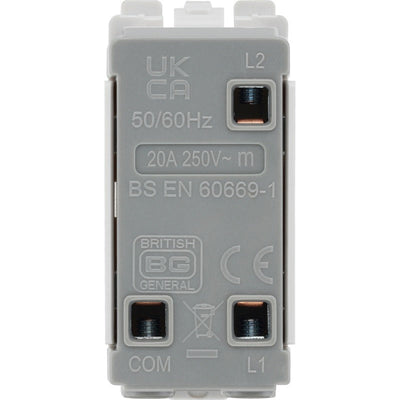

BG R12C Nexus Grid White 20A 20AX 2 Way 1 Pole Centre-Off Switch Module

Nexus Grid White 20A 20AX 2 Way 1 Pole Centre-Off Switch Module

About Product:

• Rating: 20 Amp, 20AX Inductive
• 2 Way, single pole
• White finish
• Minimum mounting box depth: 25mm
• Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

The BG Electrical Nexus Grid R12C is a white single-pole 2-way centre-off switch module, rated at 20AX.

A versatile switch module, the R12C is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. With a centre-off switch it can be controlled from two directions making it suitable for awkward locations.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. Made of white urea, this switch has inherent anti-microbial properties that make it ideal for anywhere with a heavy traffic.

To aid installation, the R12C comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module
