BG Part M 4 Gang Switch 3x Intelligent Dual Mode Dimmer 1x 2 Way Custom Grid

BG Part M 4 Gang Switch 3x Intelligent Dual Mode Dimmer 1x 2 Way Custom Grid

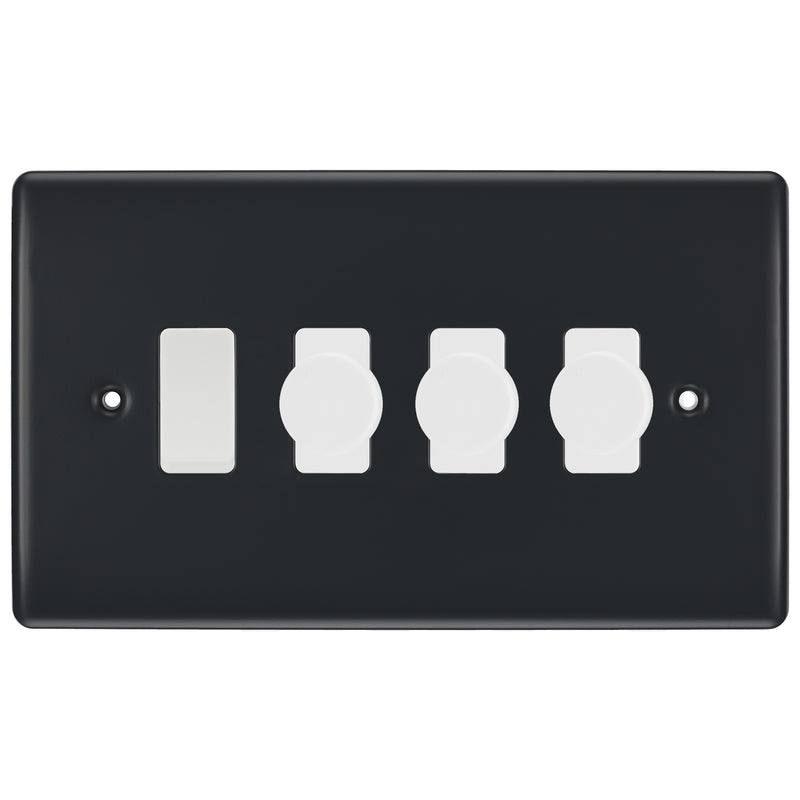

This Part M grid panel combines three intelligent dual mode dimmers with a 20A 2 way switch on a single graphite front plate with white rockers.

Part M of the Building Regulations requires that switches can be seen and located easily by people with impaired vision, and contrast is how that is achieved. The graphite plate stands out against a light-coloured wall and the white rockers stand out against the plate. There is no visible plastic around the rockers and the screws are colour matched, so nothing interrupts the contrast. The front plate matches the power products across the Part M range.

The dimmers give smooth control of light levels with silent operation. They are switchable between trailing and leading edge, so they work with dimmable LED, halogen and incandescent lamps rather than being limited to one type. Soft start brings the lights to the set level in around one second, which extends lamp life, and support for lower wattage lamps eliminates flicker. Overload protection means that if too many lights or transformers are connected, the dimmers turn the lights down or off until the load is corrected rather than failing. Control is 2 way push on/off with a rotary dial. Please check that your lamps are marked dimmable.

The switch module is a 20A 2 way single pole switch, suited to operating lights from two positions such as the top and bottom of a staircase or either end of a hallway. It can also be wired as a one way switch on its own.

Modules locate and clip into the grid frame, with captive backed-out terminal screws for fast installation. Requires a standard UK back box with a minimum depth of 25mm.

Please note: This switch will come in a grid format.

You will be sent the following parts all supplied by BG:

• RFR34 — 1x 3 & 4 Gang Grid Yoke Frame
• RPM4 — 1x 4 Module Part M Front Plate, graphite
• RDLT — 3x Intelligent Dual Mode Dimmer Module, white
• R12 — 1x 20A 2 Way Single Pole Switch Module, white
