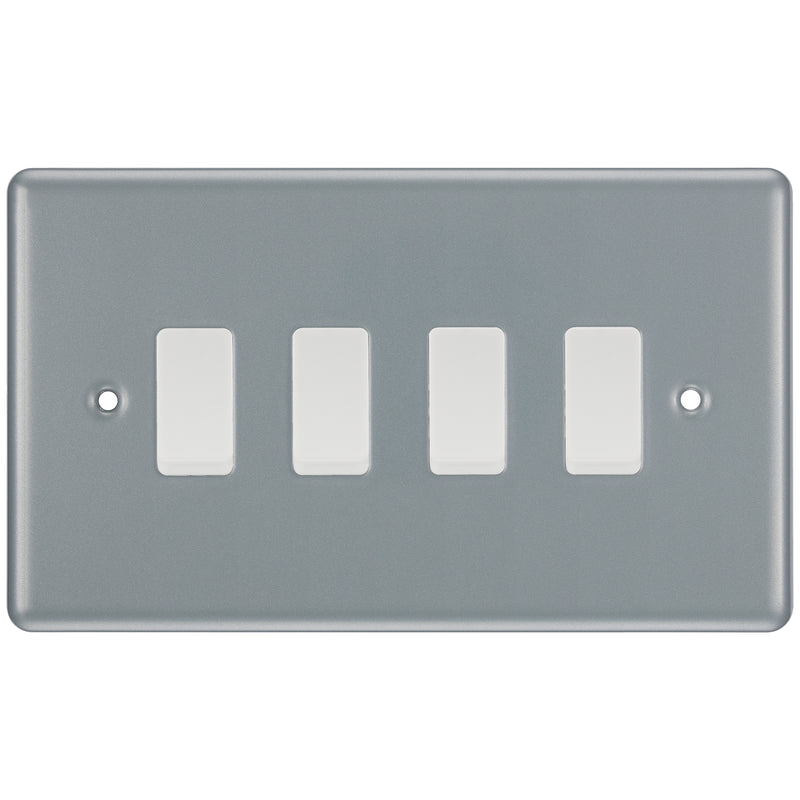

BG Part M 4 Gang Switch 1x Intermediate 3x 2 Way Custom Grid Light Switch
Metal Clad grid switches are built for commercial, industrial, and heavy-duty environments where standard domestic fittings cannot withstand daily wear.
The intermediate switch is used as the middle control point when a single light is operated from 3 locations, such as landings or multi-entrance hallways. The three 2 way single pole switches operate lights from 2 locations or as standard 1 way switches.
All switches are rated at 20A single pole with captive backed out terminal screws for efficient wiring. The modular setup allows for fast clip-in assembly on site.
Suitable for flush wall mounting or surface mounting with standard metal clad back boxes.
Your grid switch arrives as a kit: a front plate, a metal grid frame and the switch modules you chose. Modules clip into the frame, the frame screws to the back box, and the plate fits over the top.
Safety first: Only fit this yourself if you are competent to do electrical work. Work must meet BS 7671, and some jobs (for example new circuits, or work in bathrooms) are notifiable under Part P in England and Wales. If in doubt, use a registered electrician.
- Switch the circuit off at the consumer unit and confirm it is dead with a voltage tester before touching any wiring.
- Unscrew the old switch, take a photo of the wiring and label which cable goes to which terminal.
- Check the back box is deep enough: at least 25 mm for switches, 35 mm for dimmers and larger plates (see the spec sheets below).
- Clip each module into the grid frame from the front, in the order shown on this listing, with the 'TOP' marking facing up.
- Wire each module: one-way uses COM and L1, two-way uses COM, L1 and L2, and an intermediate takes both pairs of strapper wires. For dimmers and 20A modules, follow BG's leaflet below.
- Connect the earth (green/yellow) cable to the earth terminal on the grid frame or metal plate.
- Screw the grid frame to the back box, then fit the front plate. Screwless plates clip over the frame.
- Switch the power back on and test every switch and dimmer.
