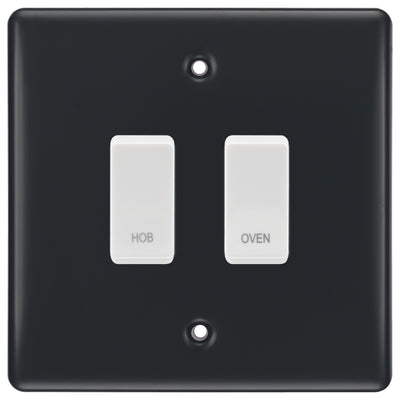

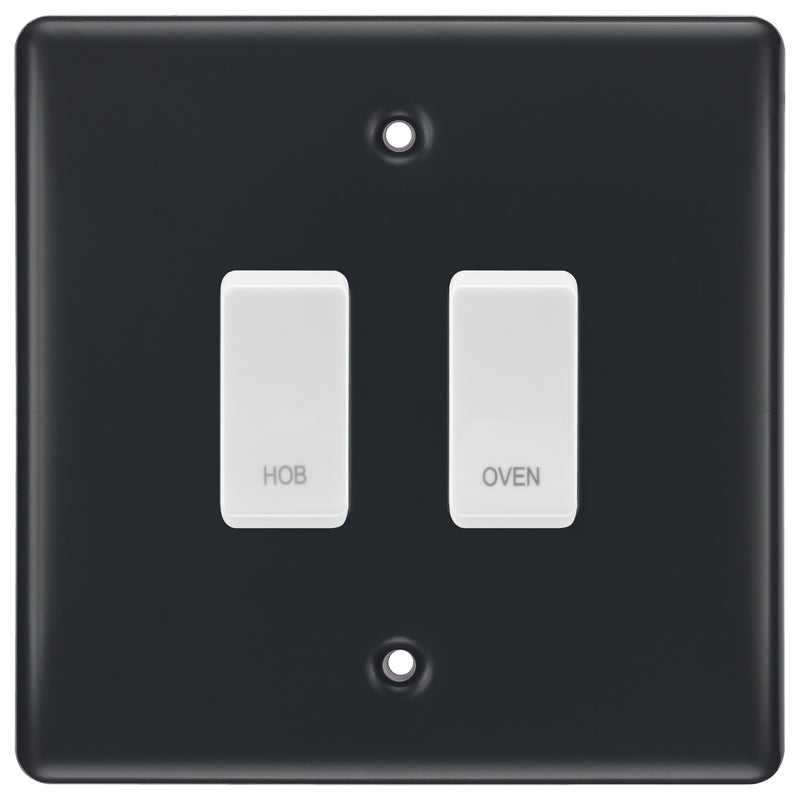

BG Part M 2 Gang Custom Labelled Kitchen Appliance Grid Switch
Get notified when back in stock
We'll notify you as soon as this item is available again
Notification set
Something went wrong
Please Note: The lettering is embossed directly into the switch rocker and is not printed in a contrasting colour. This is how BG supply the rocker.
Bespoke Grid Switch Panel
The switch panel consists of the following components:
- Mounting frame — RFR12
- Face plate — RPM2
- The switches that you choose — If you prefer a different switch from the options below, please inform us, and we’ll provide R30 with your chosen switch.
Alternative Module Options:
- R30 — 20 Amp Double Pole Switch Unprinted Switch (Used for other appliances)
- R12 — 2 Way Single Pole Switch (For Lights Only)
- R13 — Intermediate Switch
- RBLNK — Blank Switch (Please note that this is not a working switch)
- RFLEX — Flex Outlet
- RFUSE — Fuse Holder
Ideal for domestic, commercial and industrial applications, Grid matches the Part M range to provide an extended range.
Part M front plates are designed to aid the visually impaired. The graphite plate contrasts against a light-coloured wall and the white switches contrast against the plate, with no visible plastic around the rockers and colour matched screws for a sleek appearance. Part M approved, and the front plate matches the power products of the Part M range.
Grid switches are often used in kitchens, utility rooms and dining rooms so that you have control over the various appliances all in one bespoke grid switch. The Part M finish also suits care homes, supported living, student accommodation, schools and communal kitchens.
Choice of switches (20 Amp Double Pole Switch Labelled):
What’s in the box?
1x face plate, 1x mounting frame, 2x switches of your choice
Please note that if you do not let us know which switches you require your order will not be processed until you do so. Regardless of whether or not express postage has been paid for.
Your grid switch arrives as a kit: a front plate, a metal grid frame and the switch modules you chose. Modules clip into the frame, the frame screws to the back box, and the plate fits over the top.
Safety first: Only fit this yourself if you are competent to do electrical work. Work must meet BS 7671, and some jobs (for example new circuits, or work in bathrooms) are notifiable under Part P in England and Wales. If in doubt, use a registered electrician.
- Switch the circuit off at the consumer unit and confirm it is dead with a voltage tester before touching any wiring.
- Unscrew the old switch, take a photo of the wiring and label which cable goes to which terminal.
- Check the back box is deep enough: at least 25 mm for switches, 35 mm for dimmers and larger plates (see the spec sheets below).
- Clip each module into the grid frame from the front, in the order shown on this listing, with the 'TOP' marking facing up.
- Wire each module: one-way uses COM and L1, two-way uses COM, L1 and L2, and an intermediate takes both pairs of strapper wires. For dimmers and 20A modules, follow BG's leaflet below.
- Connect the earth (green/yellow) cable to the earth terminal on the grid frame or metal plate.
- Screw the grid frame to the back box, then fit the front plate. Screwless plates clip over the frame.
- Switch the power back on and test every switch and dimmer.
