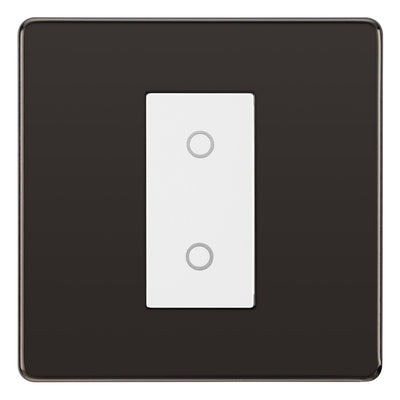

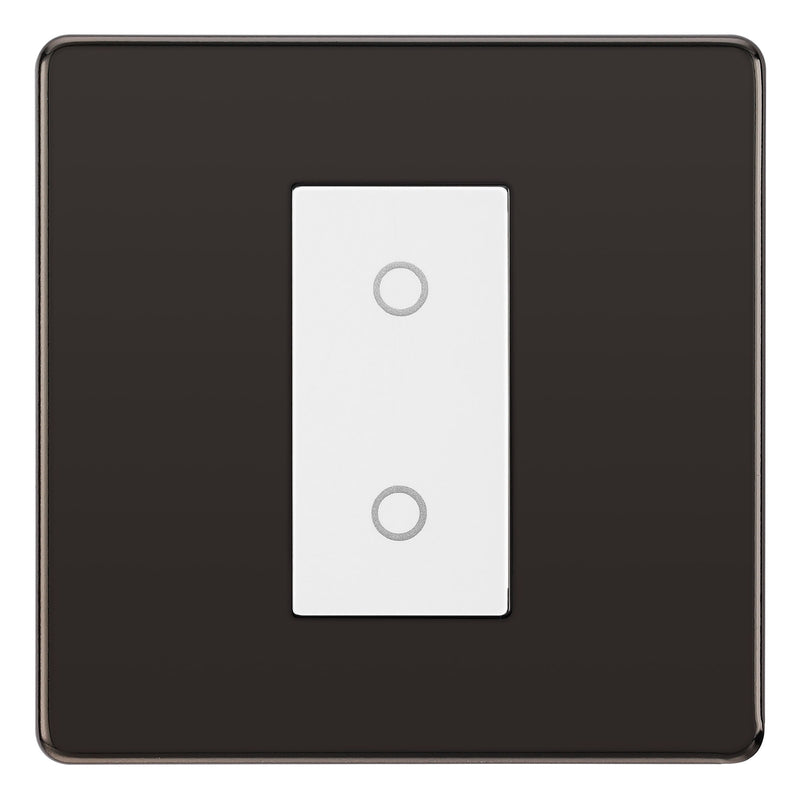

BG Nexus Screwless Black Nickel Single Master Touch Dimmer Switch White Insert

BG Nexus Screwless Black Nickel Single Master Touch Dimmer Switch White Insert

Touch Dimmer Switch – Intelligent Trailing Edge

• Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
• Smooth dimming control
• Silent operation - no noise when dimming
• Support for lower wattage lamps eliminates flicker
• Touch dimmer control
• Captive backed out terminal screws prevent screw loss
• Manufactured to BS EN 60669-2-1
• 3 x 1mm² 2 x 1.5mm² & 1 x 2.5mm²
• Minimum mounting box depth – 25mm

Load Rating (Max/Min per module)

• Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200Wa
• Dimmable Compact Fluorescent (CFL) 5-100W
