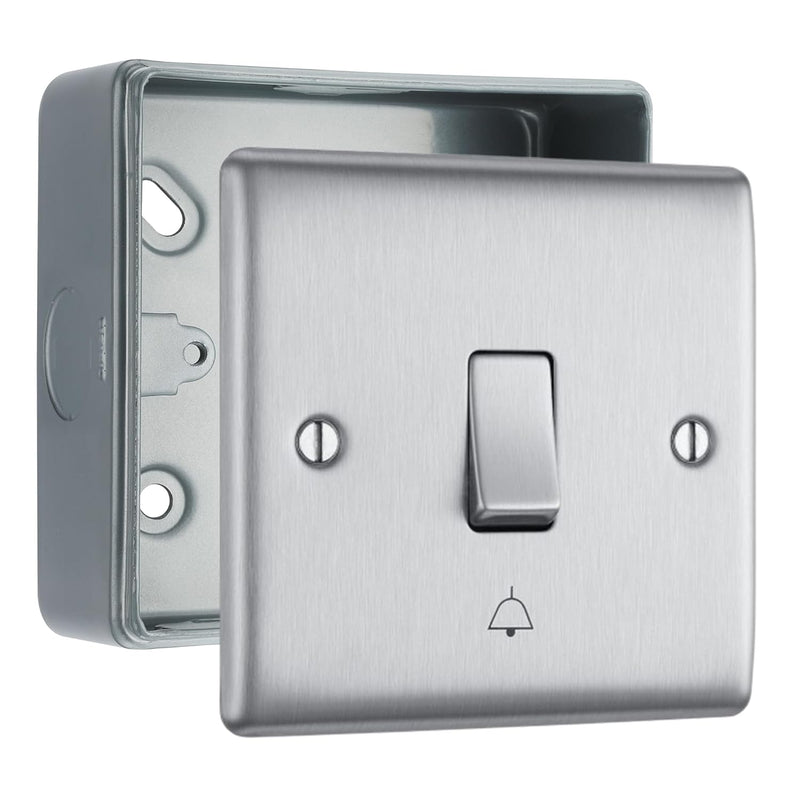

BG Nexus Metal Brushed Steel 10AX Bell Push Switch & Surface Pattress Back Box

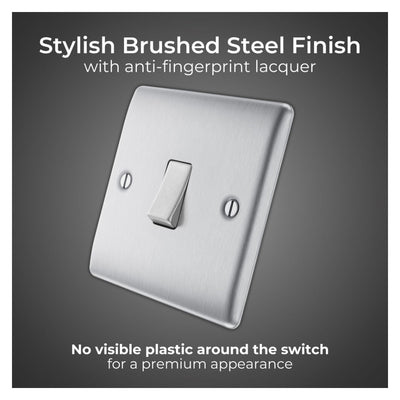

BG Nexus Brushed Steel Single Bell Push Switch 10A
This brushed steel finish bell push switch from British General is ideal for use where access is restricted such as office buildings or hospitals where visitors need to let those inside know they have arrived. This switch has an anti-fingerprint lacquer and a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.

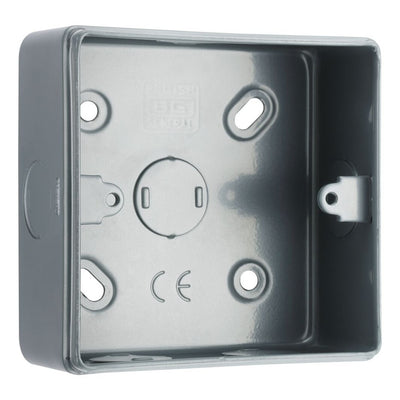

1 Gang and 2 Gang Grid Surface Mounting Back Box
This single surface mounting box from British General is ideal for installing power points without the need to remove material from the wall. This box has multiple knockouts for versatility and an earth terminal fitted as standard. Made from a rugged scratch resistant steel for everyday use in commercial environments, and ideal for use with accessories from the BG Metal Clad and Grid range.
| General Colour | Brushed Steel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | One Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | Retractive |
| Warranty (years) | 25 |
Downloads
Have Questions?
Check out our Wiring Devices FAQs for answers to common questions about this product.
