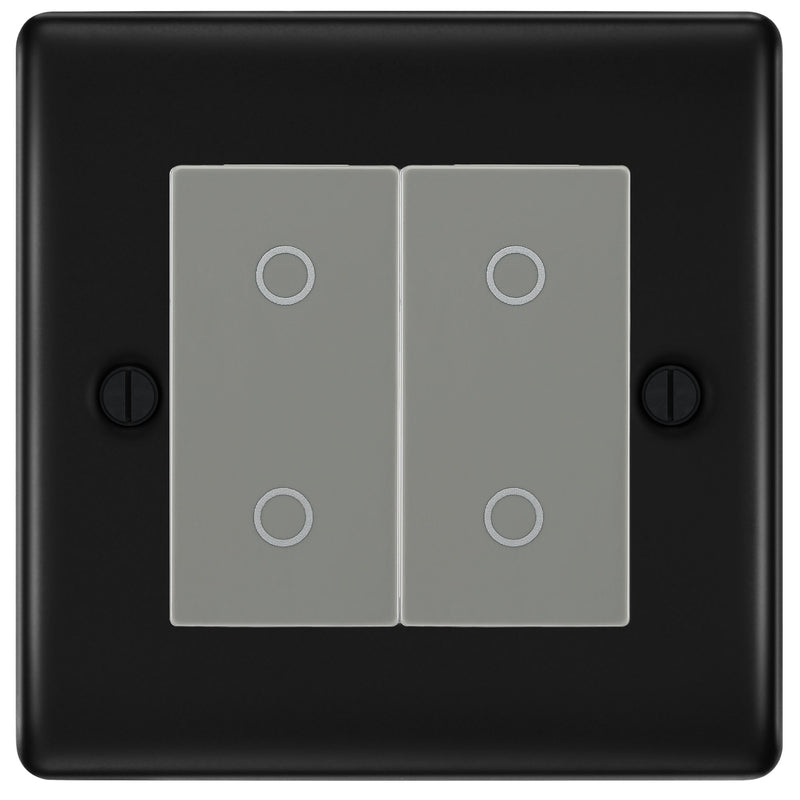

BG Nexus Matt Black Double Secondary Touch Dimmer Switch Grey Inserts
Description
BG Nexus Matt Black Double Secondary Touch Dimmer Switch Grey Inserts
Touch Dimmer Switch – Intelligent Trailing Edge
- Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
- Soft start brings the lights to a set level in around 1 second and extends the life of lamps
- Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
- Smooth dimming control
- Silent operation - no noise when dimming
- Support for lower wattage lamps eliminates flicker
- Touch dimmer control
- Captive backed out terminal screws prevent screw loss
- Manufactured to BS EN 60669-2-1
- 3 x 1mm² 2 x 1.5mm² & 1 x 2.5mm²
- Minimum mounting box depth – 25mm
Load Rating (Max/Min per module)
- Dimmable LED 5-100W
- Tungsten/Incandescent 5-200W
- Halogen 20-200W
- Dimmable Compact Fluorescent (CFL) 5-100W
