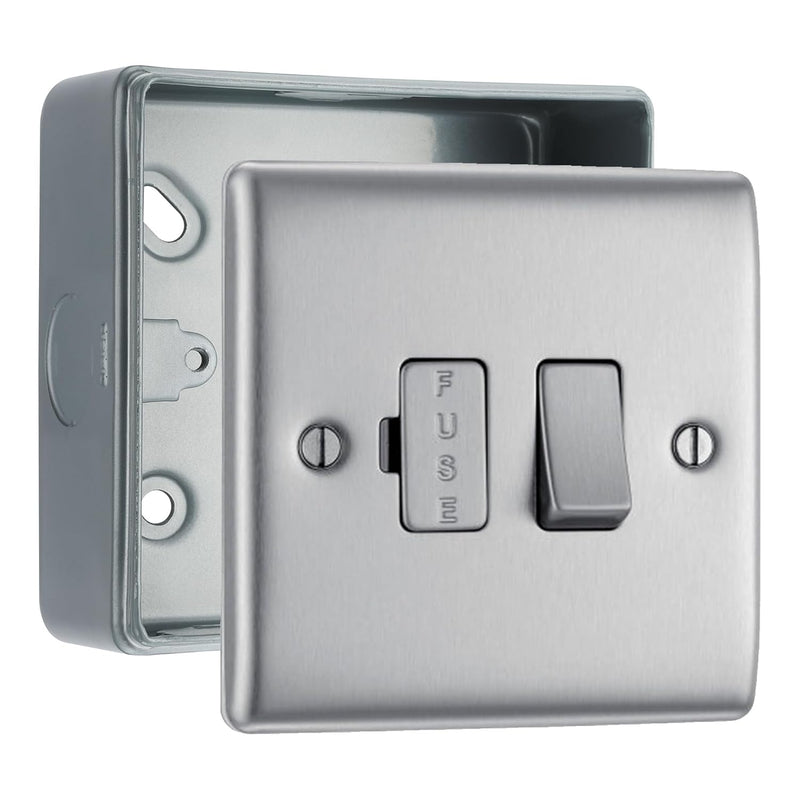

BG Nexus Brushed Steel 13A Switched Fused Connection Unit & Surface Pattress Back Box

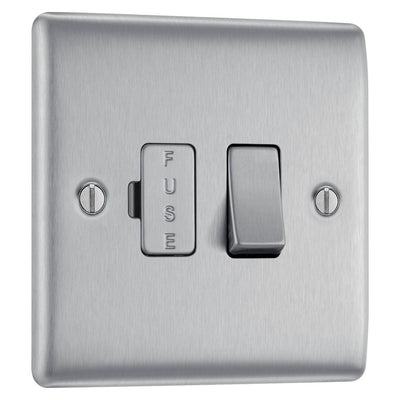

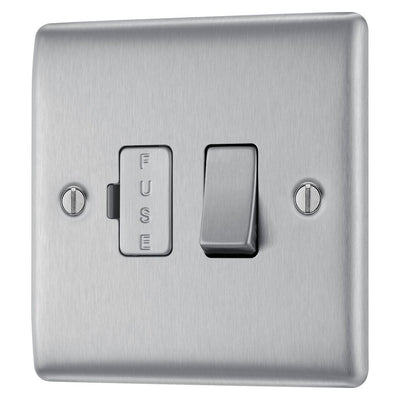

BG Nexus Metal Brushed Steel 13A Switched Fused Connection Unit
This switched and fused 13A connection unit from British General provides an outlet from the mains containing the fuse and is ideal for spur circuits and hardwired appliances. This brushed steel finish unit has a sleek and slim profile and an anti-fingerprint lacquer, with softly rounded edges to add a touch of luxury to your decor.

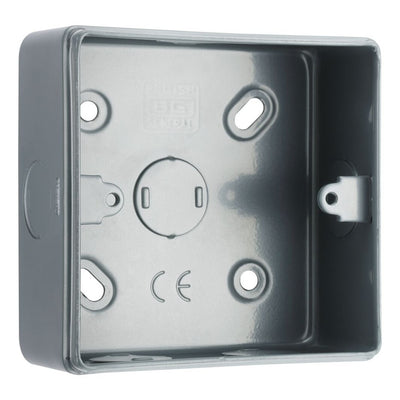

1 Gang and 2 Gang Grid Surface Mounting Back Box
This single surface mounting box from British General is ideal for installing power points without the need to remove material from the wall. This box has multiple knockouts for versatility and an earth terminal fitted as standard. Made from a rugged scratch resistant steel for everyday use in commercial environments, and ideal for use with accessories from the BG Metal Clad and Grid range
| General Colour | Brushed Steel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 1 x 6, 2 x 4 , 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Brushed Steel |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
