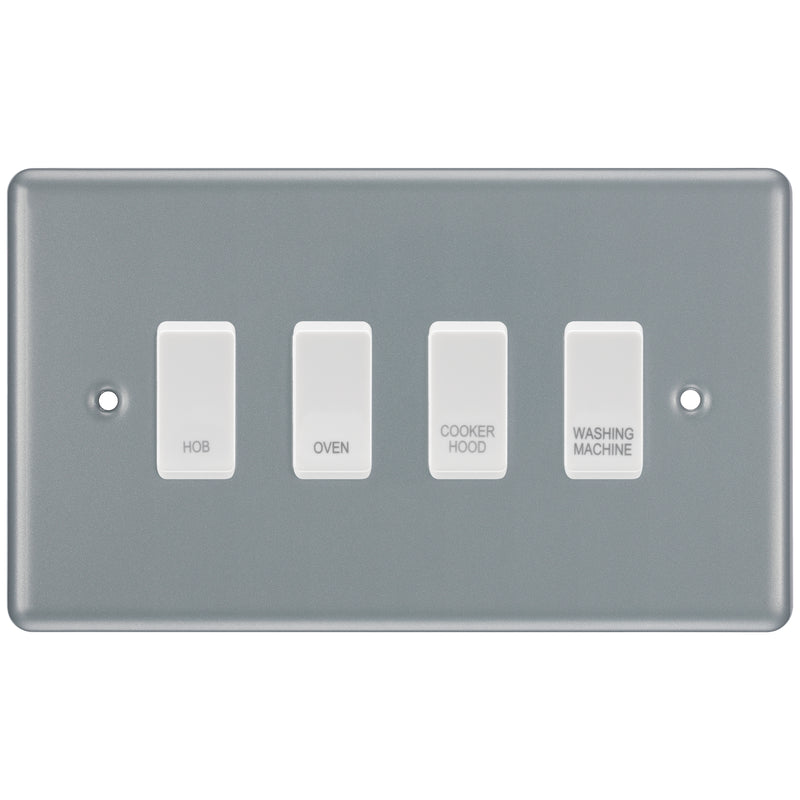

BG Metal Clad 4 Gang Custom Labelled Appliance Grid Switch Panel
BG Metal Clad 4 Gang Custom Labelled Appliance Grid Switch Panel
A bespoke grid switch panel built to your choice of labels, on a metal clad front plate for commercial and industrial installations.
Manufactured in heavy gauge steel and finished with epoxy powder coating, the plate is rugged and scratch resistant — made for the environments where a domestic finish does not last. Suitable for flush wall mounting, or surface mount with metal clad boxes.
Bespoke Grid Switch
The switch panel consists of the following:
Mounting frame - RFR34
Face plate - RMC4
The switches that you choose - If you prefer a different switch from the options below, please inform us, and we'll provide 4x R30 with your chosen switch.
- R30 - 20 Amp Double Pole Switch Unprinted Switch (Used for other appliances)
- R12 - 2 Way Single Pole Switch (For Lights Only)
- R13 - Intermediate Switch
- RBLNK - Blank Switch (Please note that this is not a working switch)
- RFLEX - Flex Outlet
- RFUSE - Fuse Holder
Ideal for commercial and industrial applications, Grid gives a wider range of configurations than fixed plates — commonly used in commercial kitchens, plant rooms, workshops and back-of-house areas to control several appliances from one panel.
Choice of switches:
20 Amp Double Pole Switch Labelled:
- RRACW - AIR CON
- RRBELLW - BELL SYMBOL
- RRBLW - BOILER
- RRCHW - COOKER HOOD
- RRDWW - DISH WASHER
- RRFNW - FAN
- RRFZW - FREEZER
- RRFDW - FRIDGE
- RRFFW - FRIDGE FREEZER
- RRHTW - HEATER
- RRHBW - HOB
- RRMWW - MICROWAVE
- RROVW - OVEN
- RRTDW - TUMBLE DRYER
- RRWDW - WARMING DRAWER
- RRWMW - WASHING MACHINE
- RRWDISW - WASTE DISPOSAL
- RRWHW - WATER HEATER
- RRWCW - WINE COOLER
- RRUPW - UNPRINTED
For lighting: RRLTW - LIGHTS, fitted to an R12 2 Way Single Pole Switch.
A note about "COOKERS":- There is no switch option for "Cooker" because a freestanding cooker would not normally be connected through a grid switch. The selection would therefore either be "hob" or "oven".
Supplied with fixing screws. A back box is not included — fits a standard 4 gang UK box for flush mounting, or a BG metal clad box for surface mounting.
Please note that if you do not let us know which switches you require your order will not be processed until you do so.
