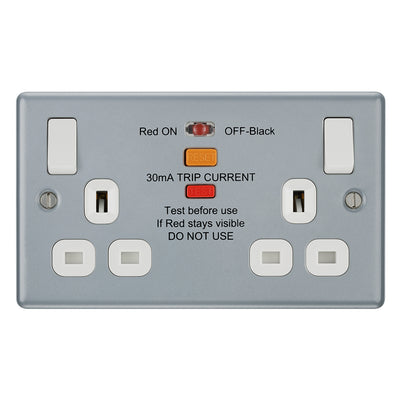

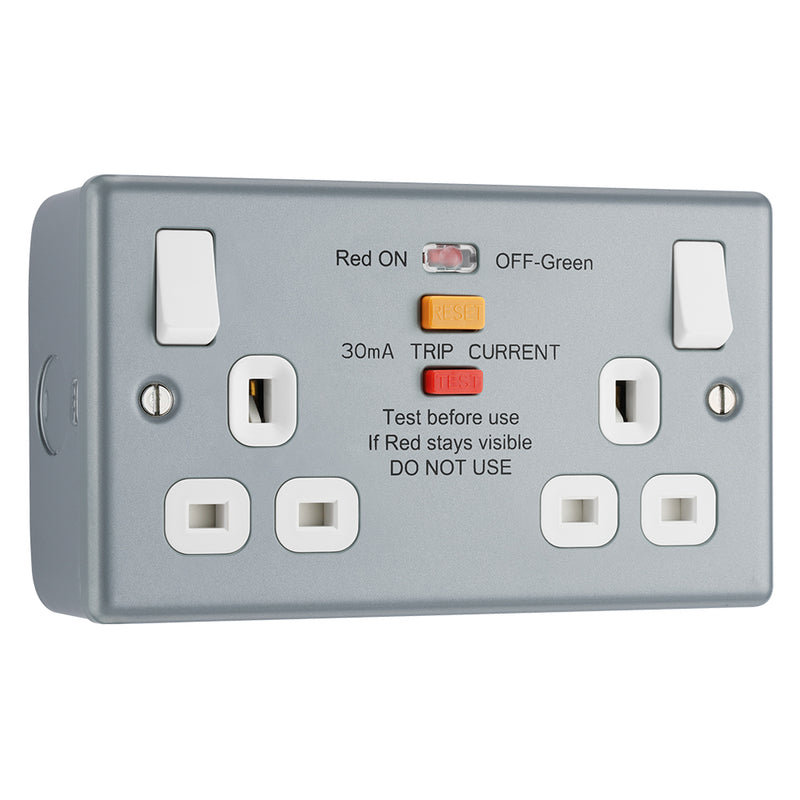

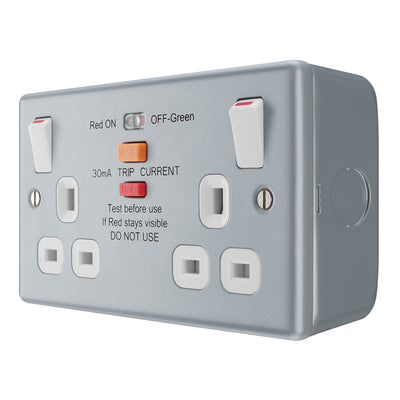

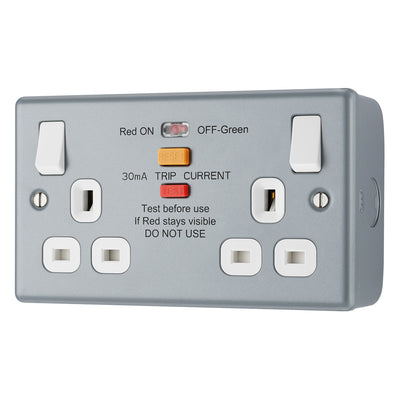

BG MC522ARCD Metal Clad 13A 2G SP Type A RCD Protection Switched Socket

Original price £27.15 - Original price £27.15
Original price
£27.15
£27.15 - £27.15
Current price £27.15

BG MC522RCD METALCLAD TWIN RCD SWITCH SOCKET 13A 2 GANG (LATCHING / PASSIVE)

About Product:

  • Type A RCD & 13A Rated
  • Integrated Type A RCD to prevent the leakage of electrical current
  • Twin earth fitted as standard for high integrity circuits

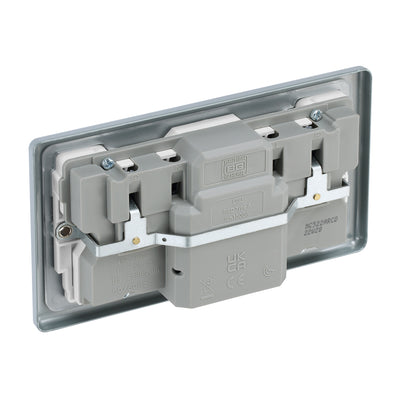

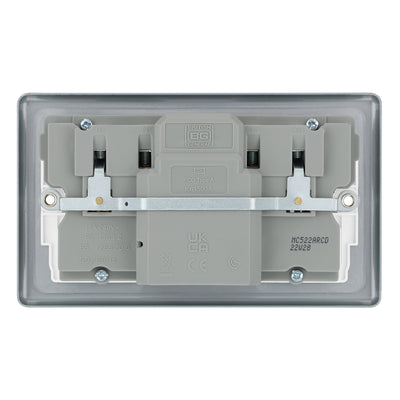

  • Angled in-line colour coded terminals with backed out screws for fast installation

This RCD protected double socket from British General continuously monitors the supply to electrical appliances plugged in to it and cuts the power if an earth current fault is detected protecting against the risk of a fatal electric shock.

This latched (passive) version, if set, will retain closed contacts if the mains supply is interrupted – essential for appliances like fridge freezers, with no need to reset after a loss of power.

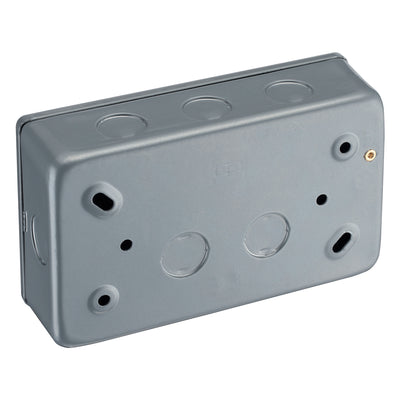

The Metal Clad unit is made from a rugged scratch resistant metal and has multiple knock outs for versatility. Ideal for commercial and industrial environments.

Product Details

Dimensions

Unpacked Height (mm) 86
Unpacked Width (mm) 146
Unpacked Depth (mm) 50.3
Minimum Box Depth (mm) N/A
Front Plate Height (mm) 8

Pack

Packed Width (mm) 165
Packed Depth (mm) 52
Packed Height (mm) 225
Packed Gross Weight (kg) 0.477
Package Pack Type Printed Bag
Package Hanging No
Package EAN 5050765236058

Downloads

Specification Sheet
Metal Clad Type A RCD Socket
Download
