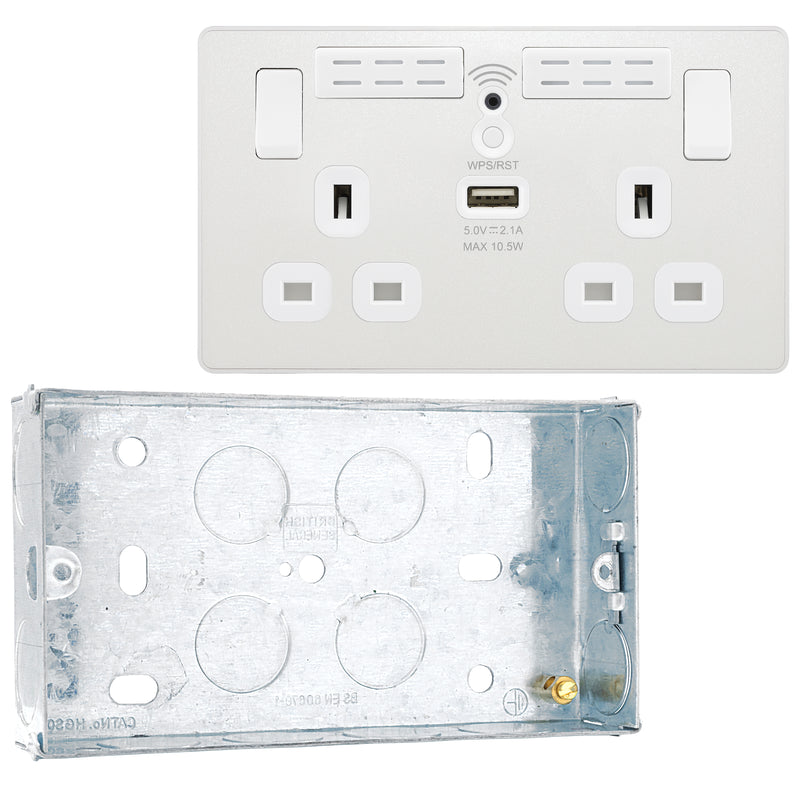

BG Evolve Pearlescent White 13A Double USB Socket with WiFi Extender PCDCL22UWRW with 25mm Steel Back Box
BG Evolve Pearlescent White 13A Double USB Socket with WiFi Extender PCDCL22UWRW with 25mm Steel Back Box
This Evolve pearlescent white 13A double power socket with integrated Wi-Fi Extender from British General will eliminate dead spots and expand your Wi-Fi coverage. Designed to work with all wireless broadband routers and easy to install with one touch WPS, this includes a USB charging port and eradicates the need for plug in adaptors, keeping sockets free for use. The Evolve range also features a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
This steel back box is ideal for the installation of electrical accessories and is designed to be fitted into a wall cavity for a flush to wall fitting. The 25mm depth is ideal for use with 13A sockets and 20A double pole switches. Manufactured from steel for durability, this back box features 4 fixing lugs and M20 knockouts on sides and base for flexible cable entry. Complete with an earth bond terminal for a safe and compliant installation.
| General Colour | Pearlescent White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 2 x 6.0, 3 x 2.5, 3 x 4 |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| USB Ports | 1 x Type A |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| USB Output (Type & Rating) | Type A: 5V,2.1A |
| Network Standards | 802.11 b/g/n |
| Link Rate Class | N300 |
| Radio Band (GHz) | 2.4 GHz |
| Max. Link Rate (Mbps) | 300 Mbps |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
