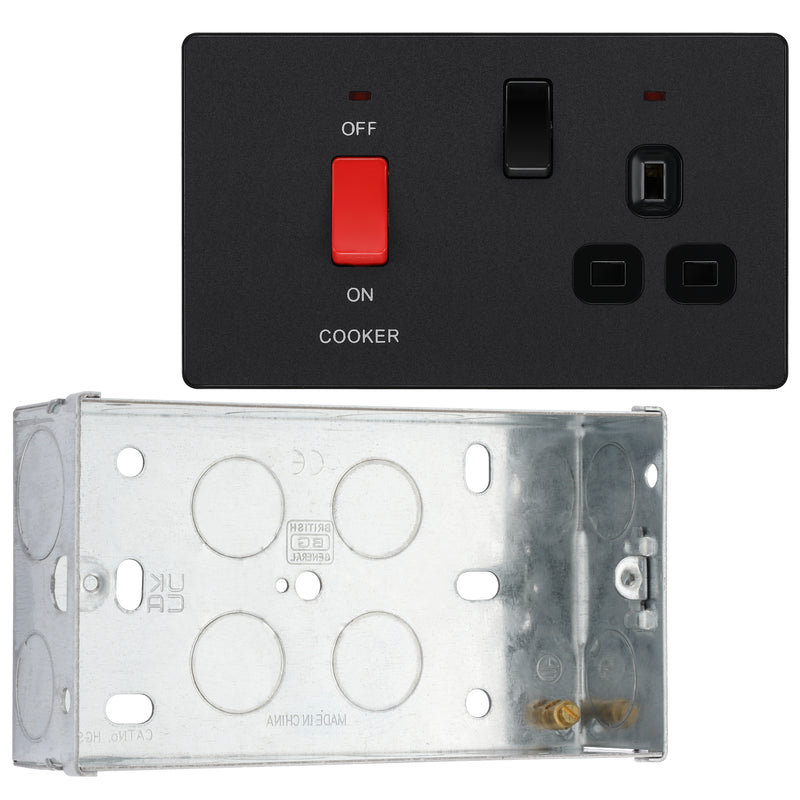

BG Evolve Matt Black 45A Switch 13A Switched Socket Cooker Control Unit PCDMB70B with 35mm Steel Back Box
BG Evolve Matt Black 45A Switch 13A Switched Socket Cooker Control Unit PCDMB70B with 35mm Steel Back Box

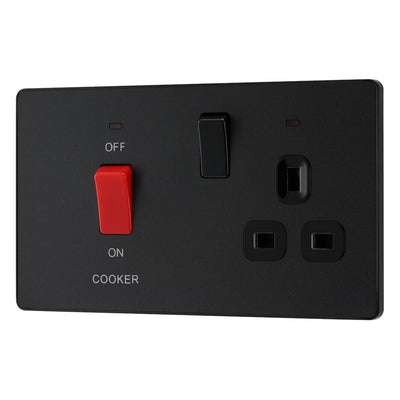

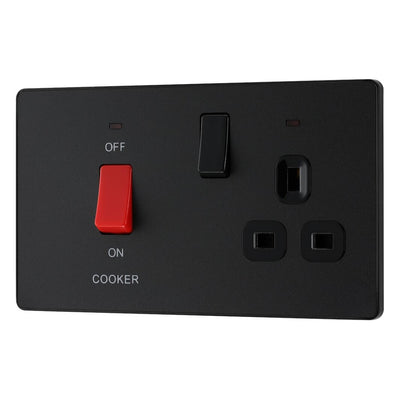

This Evolve Matt Black 45A cooker control unit from British General includes a 13A socket for an additional appliance outlet, and has flush LED indicators above the socket and switch. This CCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.

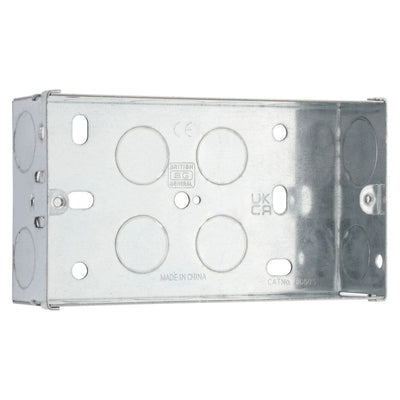

The 35mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
| General Colour | Matt Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 47 |

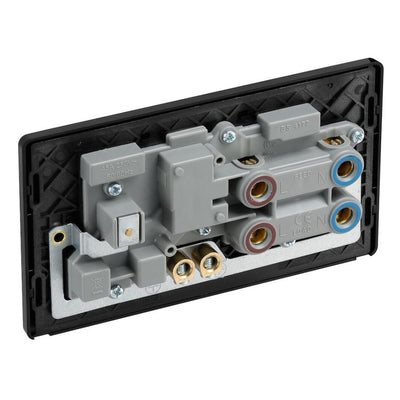

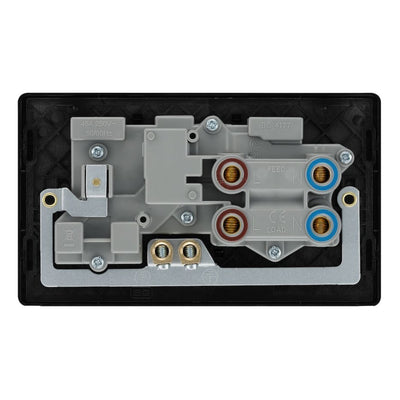

| Terminal Capacity (# x mm²) | 1 x 16, 3 x 6.0, 4 x 4 |
| Front Plate Insert Colour | Black |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
