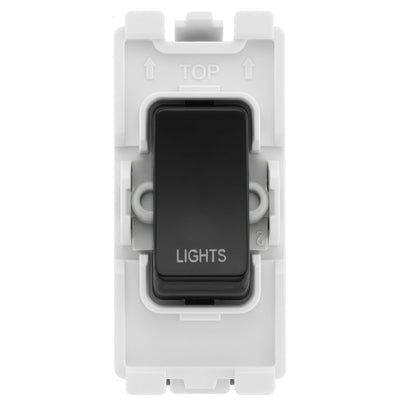

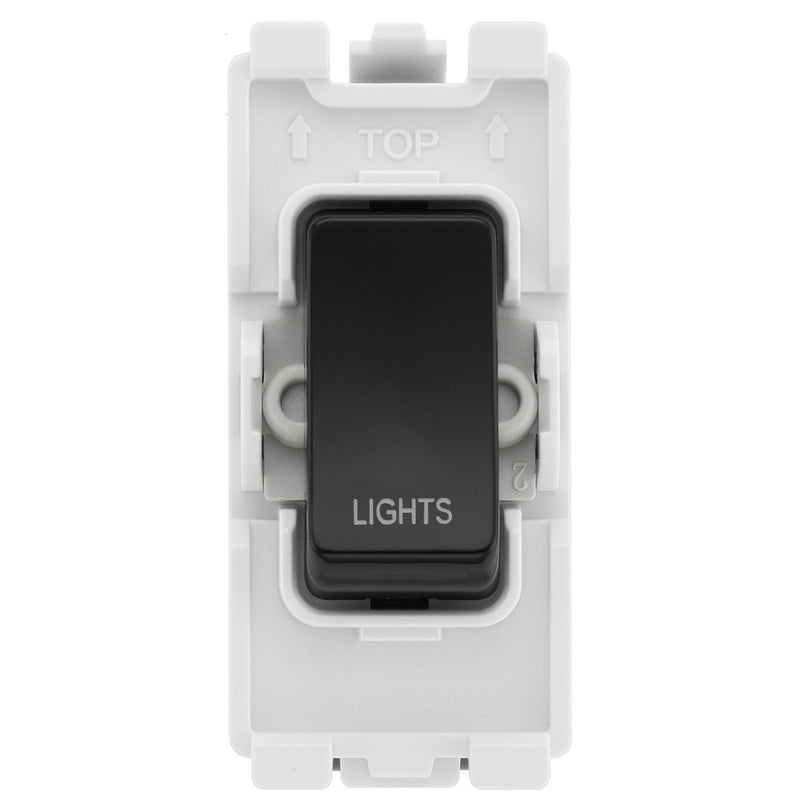

BG Evolve Black RRLTPCDB 20 Amp Double Pole Appliance Grid Switch Labelled Lights

BG Evolve Black RRLTPCDB 20 Amp Double Pole Appliance Grid Switch Labelled Lights

Ideal for domestic, commercial and industrial applications, and allows you to build your own module configurations with a variety of combinations and finishes. The range benefits aesthetically from having no visible plastic around the switches. Evolve Grid is also designed to be easy to install with a cantilever module to frame installation and interchangeable rockers to provide flexibility.

To make up a complete grid switch you will require the following items:

• Back box (surface mounded or flush mounted)
• Grid yoke/ Grid Frames
• Front plate/ cover plate
• Switches (labelled switches to match your appliances or plain switches)

20 Amp 20AX Modules

• Simple secure 'locate and clip' fitting to frame
• Alternative printed rocker covers are available
• Clearly marked terminals with backed-out captive screws for easy installation
• Terminal capacity 4 x 1.0mm² & 1 x 4.0mm², 2 x 2.5mm² , 4 x 1.5mm²
• Manufactured to BS EN 6609-2-1
• Minimum mounting box depth 25mm
• 20 Amp, 20AX inductive rated

20 Amp Double pole switch which is generally used for under cabinet and other display lights.

Please note that BG Evolve Grid items are only compatible with other BG Evolve grid components.
