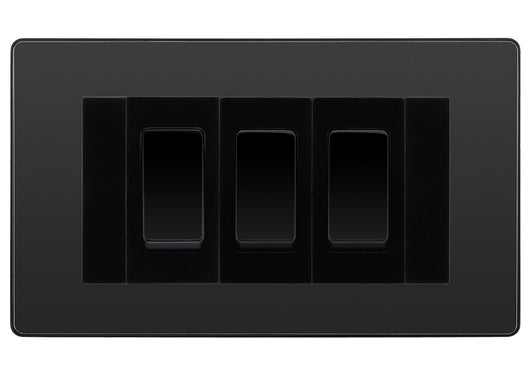

BG Evolve Black Chrome 3 Gang Intermediate Light Switch Custom Grid - Black Insert
BG Evolve Black Chrome 3 Gang Intermediate Light Switch Custom Grid - Black Insert
Upgrade your lighting setup with this premium BG Evolve Black Chrome Intermediate Light switch assembly — the perfect blend of performance and style.
This unit is custom assembled from BG components:
- PCDBCEMR4B - 4-Module Front Plate
- RFR34PCD - Grid Yoke Frame
- EMSW13B – 20A 16AX Intermediate Switch Module
- EMBLKB - Blank Module
Designed to provide versatile lighting control, this switch Included intermediate configuration, ideal for controlling lighting from multiple locations. The Black Chrome finish with Black inserts gives a premium, modern appearance suitable for both residential and commercial interiors.
Ideal for:
Home upgrades, renovations, office lighting, and professional electrical installations.
Your grid switch arrives as a kit: a front plate, a metal grid frame and the switch modules you chose. Modules clip into the frame, the frame screws to the back box, and the plate fits over the top.
Safety first: Only fit this yourself if you are competent to do electrical work. Work must meet BS 7671, and some jobs (for example new circuits, or work in bathrooms) are notifiable under Part P in England and Wales. If in doubt, use a registered electrician.
- Switch the circuit off at the consumer unit and confirm it is dead with a voltage tester before touching any wiring.
- Unscrew the old switch, take a photo of the wiring and label which cable goes to which terminal.
- Check the back box is deep enough: at least 25 mm for switches, 35 mm for dimmers and larger plates (see the spec sheets below).
- Clip each module into the grid frame from the front, in the order shown on this listing, with the 'TOP' marking facing up.
- Wire each module: one-way uses COM and L1, two-way uses COM, L1 and L2, and an intermediate takes both pairs of strapper wires. For dimmers and 20A modules, follow BG's leaflet below.
- Connect the earth (green/yellow) cable to the earth terminal on the grid frame or metal plate.
- Screw the grid frame to the back box, then fit the front plate. Screwless plates clip over the frame.
- Switch the power back on and test every switch and dimmer.
