BG EMSW12W Euro Module 20AX 2-Way Switch - White
BG EMSW12W Euro Module 20AX 2-Way Switch - White
- 16AX switch
- 2 way
- One module width
- Minimum mounting box 25mm
- White finish
- Manufactured to BS EN 60669-1

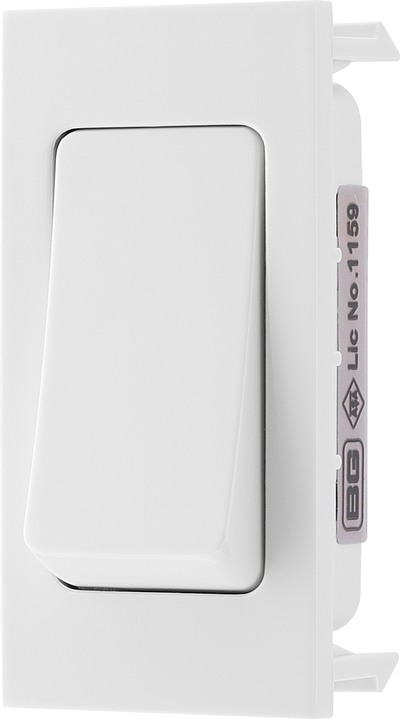

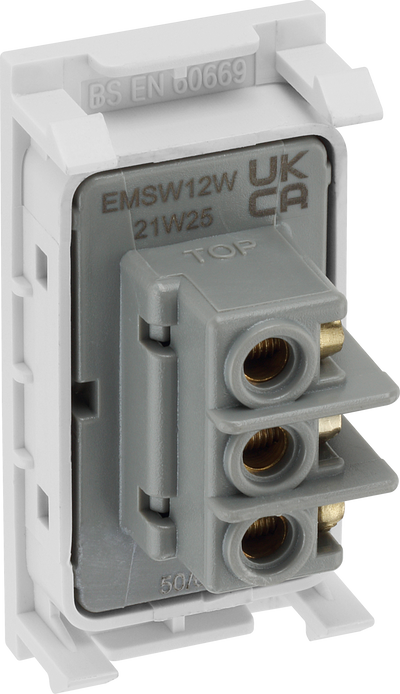

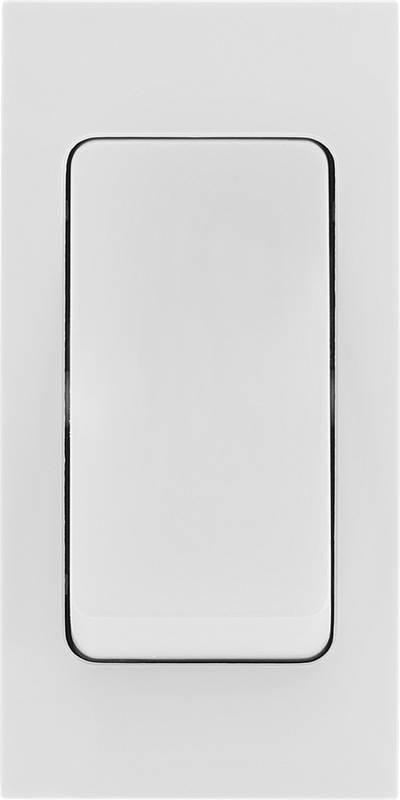

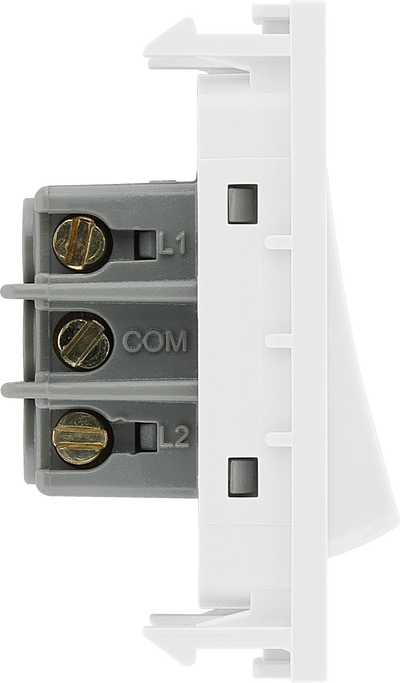

The BG Electrical Euro Module EMSW12W is a white 2 way switch, rated at 20AX and 1 module wide.
The EMSW12W is a hugely versatile switch suitable for custom switching applications all around the domestic or commercial environment. Rated at 20AX and 2 way, it is ideal for lighting as well as boilers and heater switching.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 25mm), wire up the EMSW12W as you would a traditional outlet, and then slot the module into the frame until you hear a click.
The EMSW12W is manufactured to BS EN 60669-1 to comply with national building standards. For peace of mind, it comes with a 25-year manufacturer’s warranty as per the entire BG Euro Module range.
| General Colour | White |
|---|---|
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
