BG EMHDMIW White 2 Module Euro Module 1.4 HDMI Outlet

BG Nexus White EMHDMIW HDMI Outlet Euro Module

About Product:

• Suitable for high speed 3D ready 1.4 HDMI cables
• Module clips in to Euro Module front plate

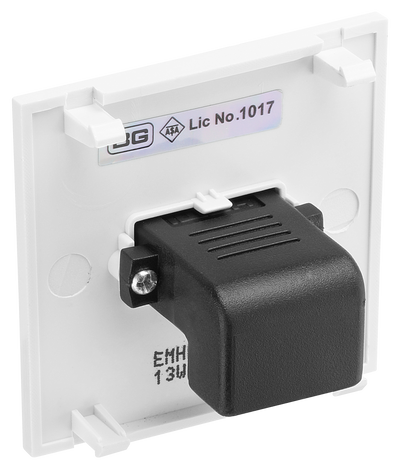

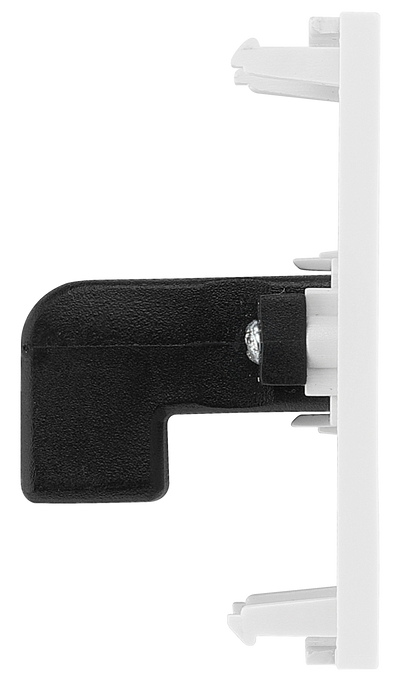

• 90 degree connection to help with limited space in wall void
• Module fits front plate aperture of 50x50mm
• Female HDMI outlet and rear
• Minimum mounting box depth 25mm

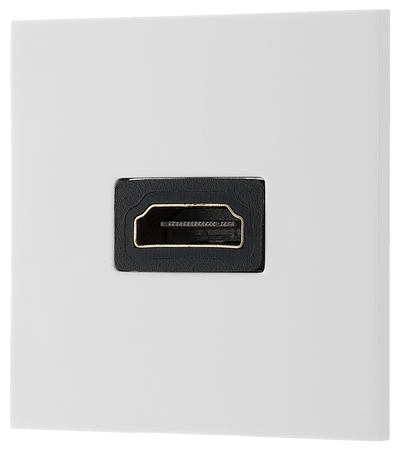

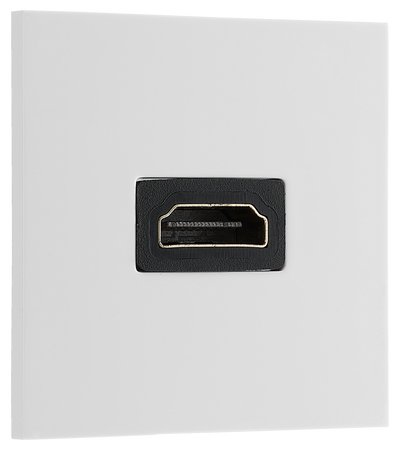

The BG Electrical Euro Module EMHDMIW is a white HDMI outlet, 2 modules wide.

Suitable for high-speed, 3D ready HDMI 1.4 cables, the EMHDMIW is easily installable as part of a modern, custom media installation alongside other Euro module components.

Made with a 90-degree connection, the EMHDMIW is developed to be used even in situations with limited wall void space. To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 25mm), wire up the EMHDMIW as you would a traditional HDMI outlet, and then slot the module into the frame until you hear a click.
