BG EMFUSEG Euro Module 13A Fused Module - Grey
BG EMFUSEG Euro Module 13A Fused Module - Grey
- 13A fused outlet
- Grey finish
- One module width
- Minimum mounting box 25mm
- Clearly marked terminals
- Backed out screws for easy installation
- Manufactured to BS 1363 Part 4

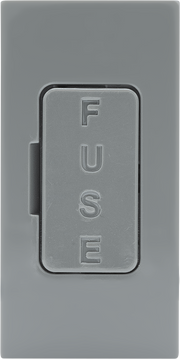

The BG Electrical Euro Module EMFUSEG is a grey fused module supplied with 13A fuse, 1 module wide.
Ideal for pairing with sockets or other appliances and only taking up a single Euro module slot, the EMFUSEG is an excellent solution to custom wiring protection. It comes supplied with a 13A fuse making it ready to go out of the box – however, other fuses can be inserted as need allows.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 25mm), wire up the EMFUSEG as you would a traditional fuse module, and then slot the module into the frame until you hear a click. It comes with marked terminals and backed out captive screws to facilitate an even easier installation.
The EMFUSEG is manufactured to BS 1363-4 to comply with national building standards. For peace of mind, it comes with a 25-year manufacturer’s warranty as per the entire BG Euro Module range.
| General Colour | Grey |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Grey |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Not Applicable |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
