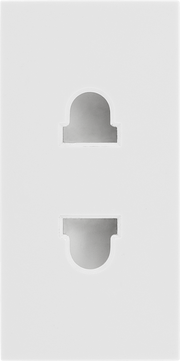

BG EMEUSW Euro Module 16A 2 Pin Unswitched Socket - White
BG EMEUSW Euro Module 16A 2 Pin Unswitched Socket - White
- 16A rating
- 2 gang 2 pin unswitched socket
- Size: 25 x 50mm
- Colour: White
The BG Electrical Euro Module EMEUSW is a white unswitched 2 pin socket, 1 module wide and rated at 16A.
The EMEUSW unswitched socket is a standard 2 pin socket suitable for a wide range of domestic and import products. At only 1 module wide it fits neatly into any custom Euro module setup without taking up much room, and at 16V it can be used for most handheld suitable appliances.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 25mm), wire up the EMEUSW as you would a traditional socket, and then slot the module into the frame until you hear a click.
The EMEUSW is manufactured to BS 1363-2 to comply with national building standards. For peace of mind, it comes with a 10-year manufacturer’s warranty.
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 2 |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
Downloads
Have Questions?
Check out our Wiring Devices FAQs for answers to common questions about this product.
