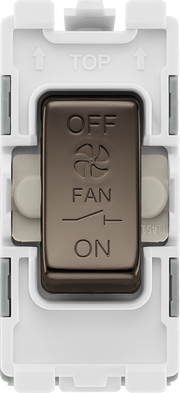

BG Electrical RBN15 Nexus Grid Black Nickel 3 Pole Fan Isolator Module 10A

£7.83 £7.17 SAVE 8%
Add to Wishlist
Description

3 Pole Fan Isolator Switch Module - Black Nickel

About Product:

  • Rating: 10 Amp, 250V
  • 3 Pole fan switch module
  • Black Nickel finish
  • Minimum mounting box depth: 25mm
  • Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
  • Manufactured to BS EN 60669-2-1

The BG Electrical Nexus Grid RBN15 is a black nickel 3-pole fan isolator switch module, rated at 10A.

The RBN15 switch module is suitable for most ventilation and ceiling fan control needs. Rated at 10A and with 3 pole switching, it isolates fittings for maintenance work to be carried out safely – BG recommend using alongside a fused module for further protection.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.

To aid installation, the RBN15 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.

As per the entire Nexus Grid range, the RBN15 comes with a 25-year manufacturer’s warranty for peace of mind. It is manufactured to BS EN 60669-2-1 to comply with national regulations.
