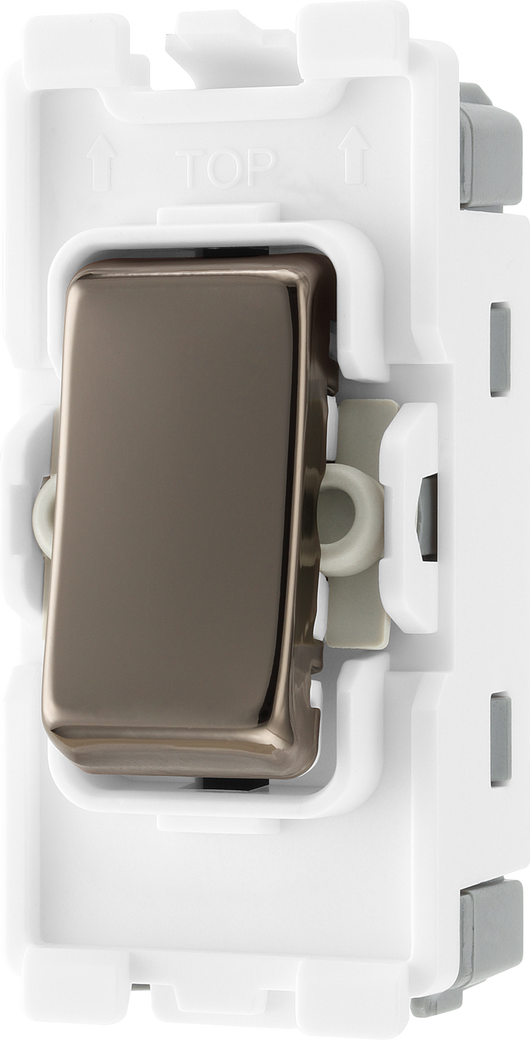

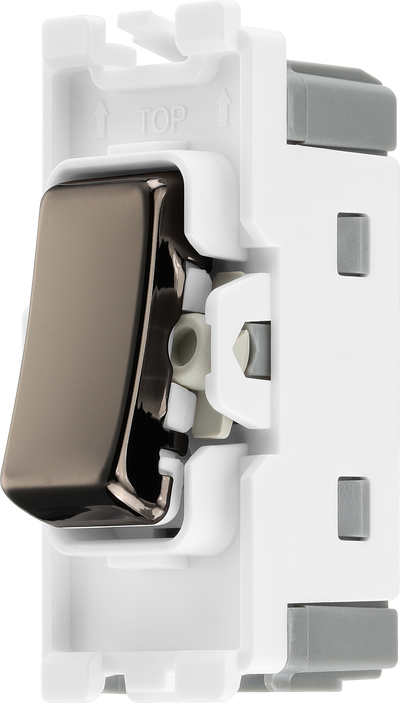

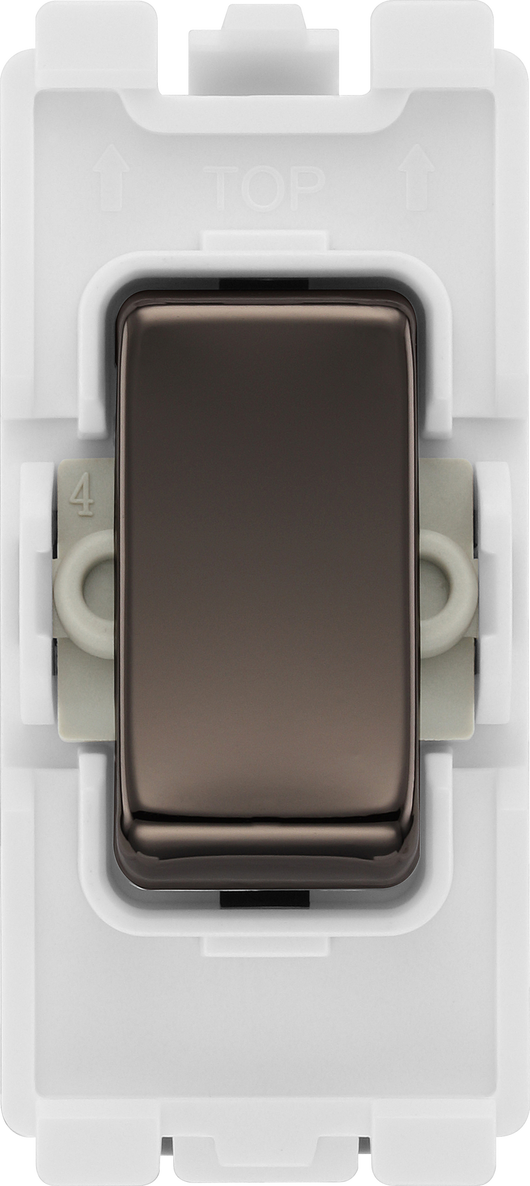

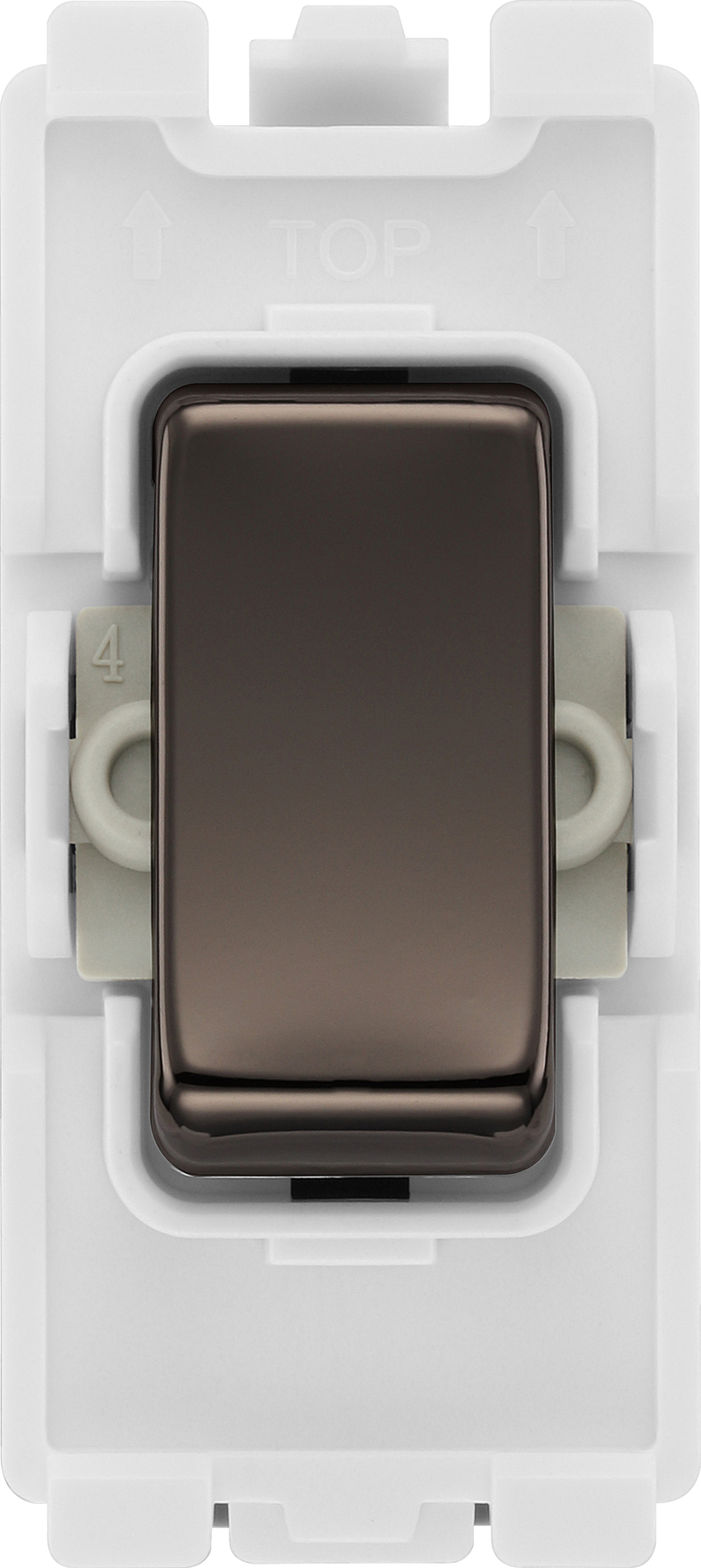

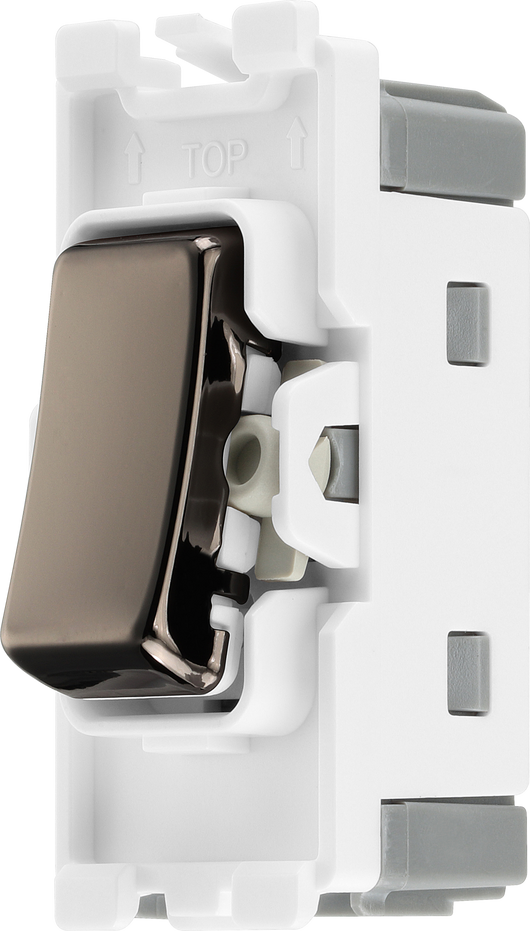

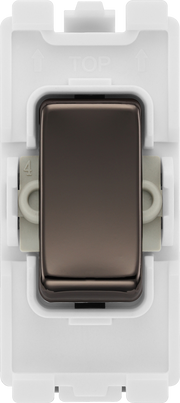

BG Electrical RBN13 Nexus Grid Black Nickel Intermediate Switch Module 20AX
Switch Module Intermediate - Black Nickel
About Product:
- Rating: 20 Amp, 20AX Inductive
- Intermediate
- Black Nickel finish
- Minimum mounting box depth: 25mm

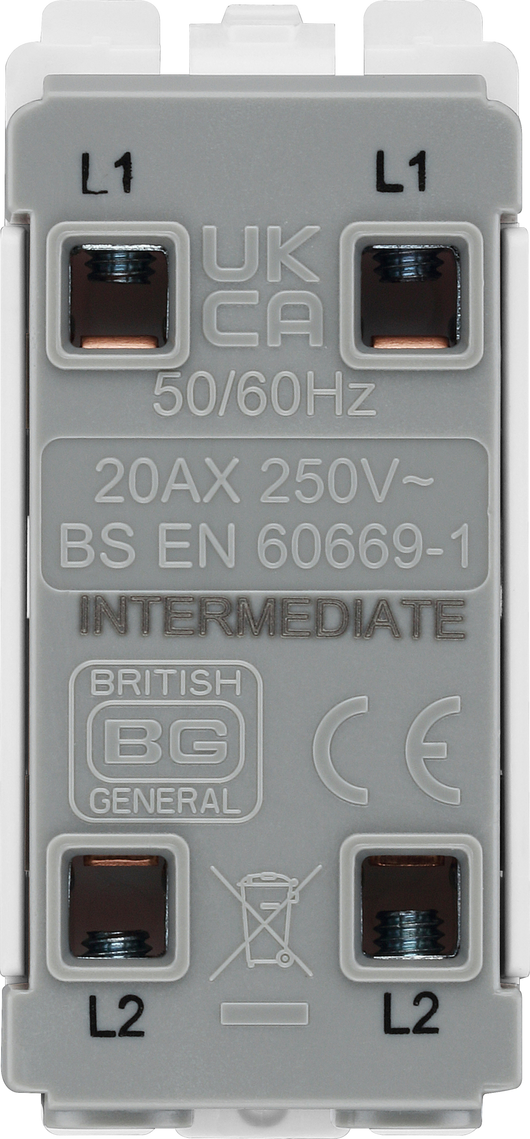

- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
- Manufactured to BS EN 60669-2-1
The BG Electrical Nexus Grid RBN13 is a black nickel single-pole intermediate switch module, rated at 20AX.
A versatile switch module, the RBN13 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. An intermediate switch, it’s particularly suited to light fittings that need controlling from three or more locations, such as some stairwells.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.
To aid installation, the RBN13 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
As per the entire Nexus Grid range, the RBN13 comes with a 25-year manufacturer’s warranty for peace of mind. It is manufactured to BS EN 60669-2-1 to comply with national regulations.
