BG RBN12 Nexus Grid Black Nickel 20A 20AX 2 Way 1 Pole Switch Module

Save £1.48 Save £1.48
Original price £5.17
Original price £5.17 - Original price £5.17
Original price £5.17
Current price £3.69
£3.69 - £3.69
Current price £3.69

BG RBN12 Nexus Grid Black Nickel 20A 20AX 2 Way 1 Pole Switch Module

About Product:

  • Rating: 20 Amp, 20AX Inductive
  • 2 Way, single pole
  • Black Nickel finish
  • Minimum mounting box depth: 25mm

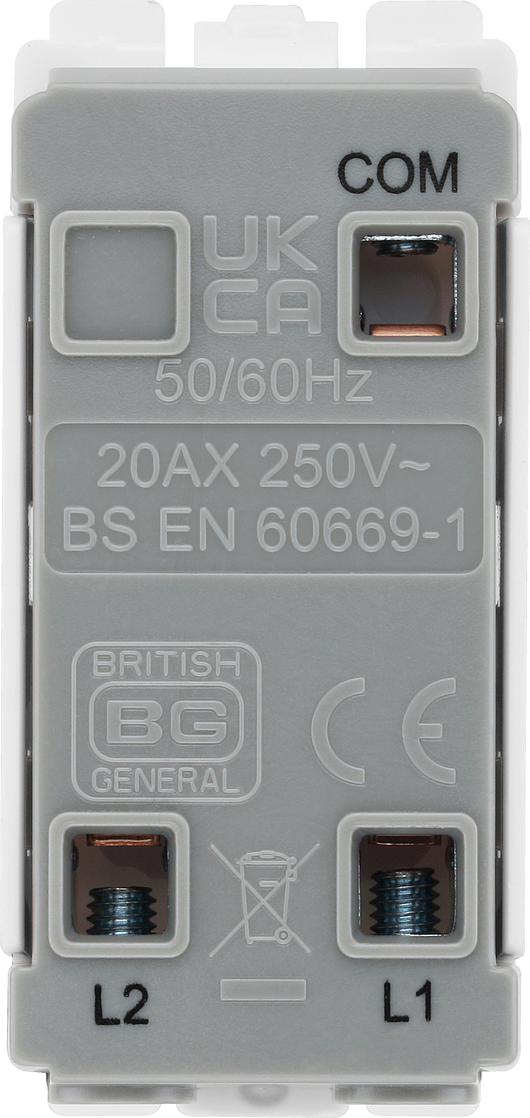

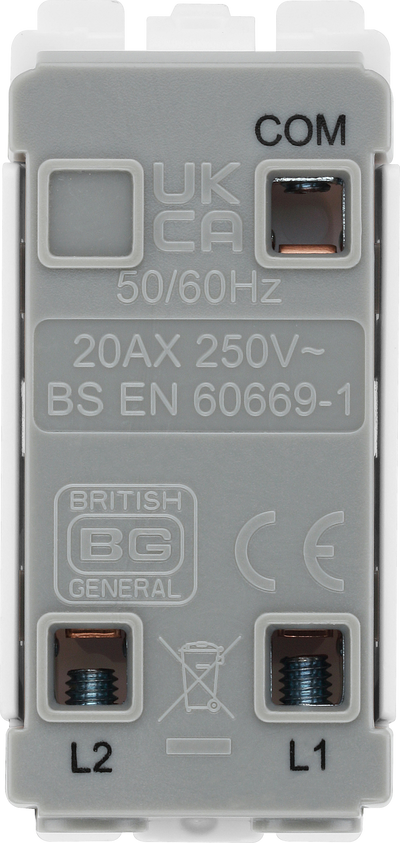

  • Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²

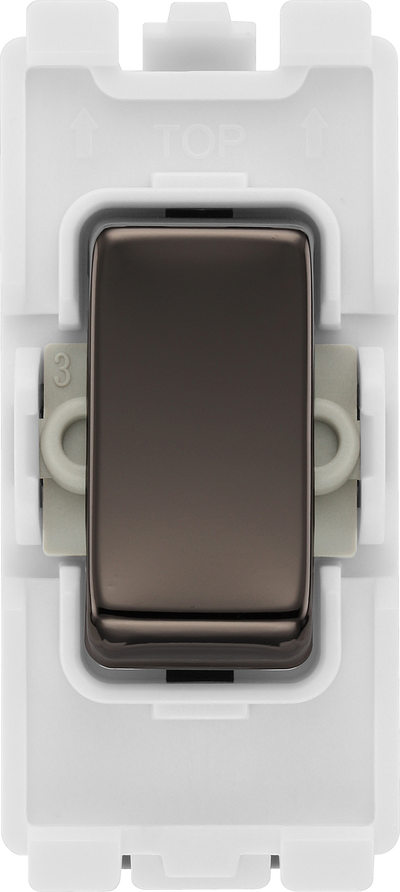

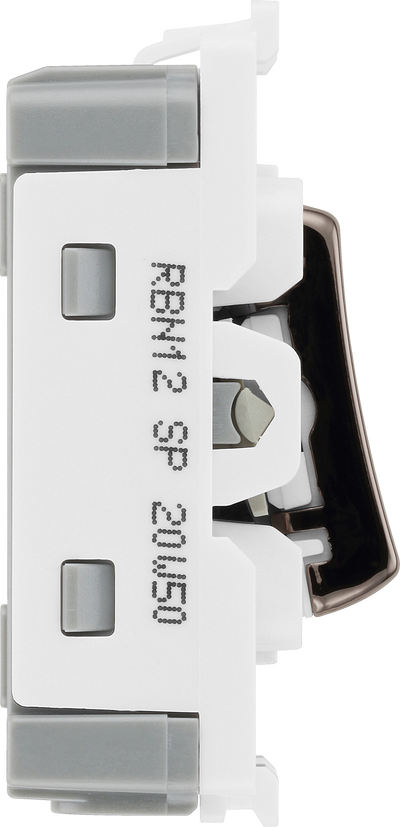

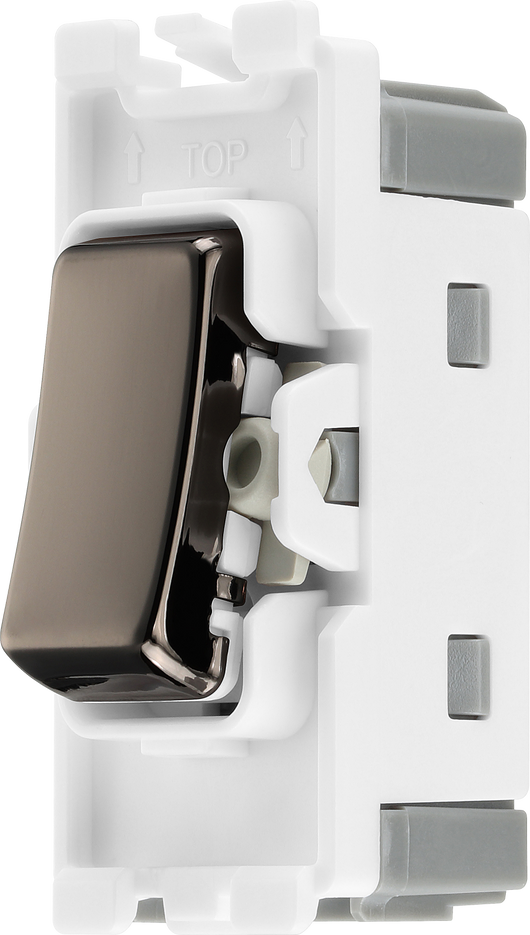

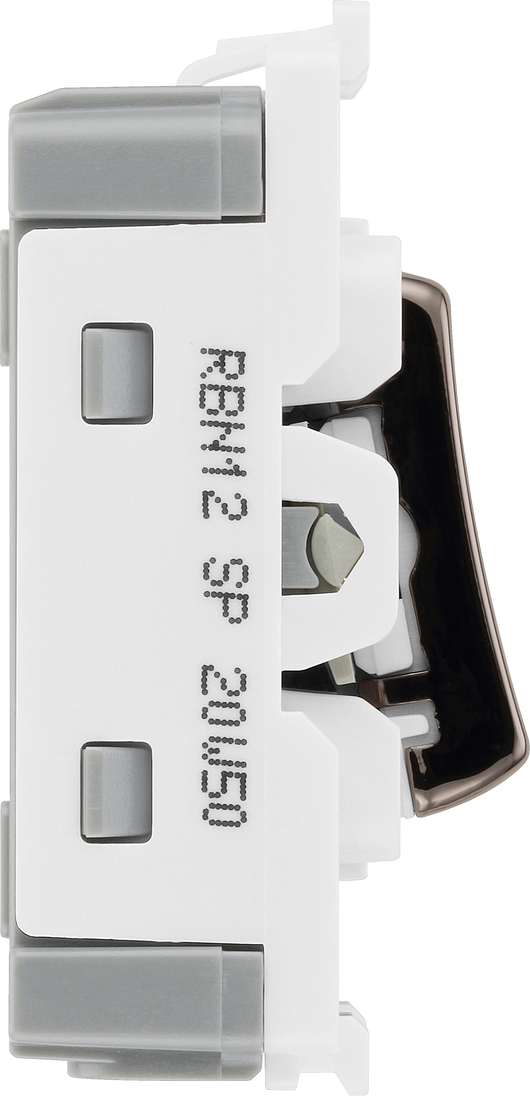

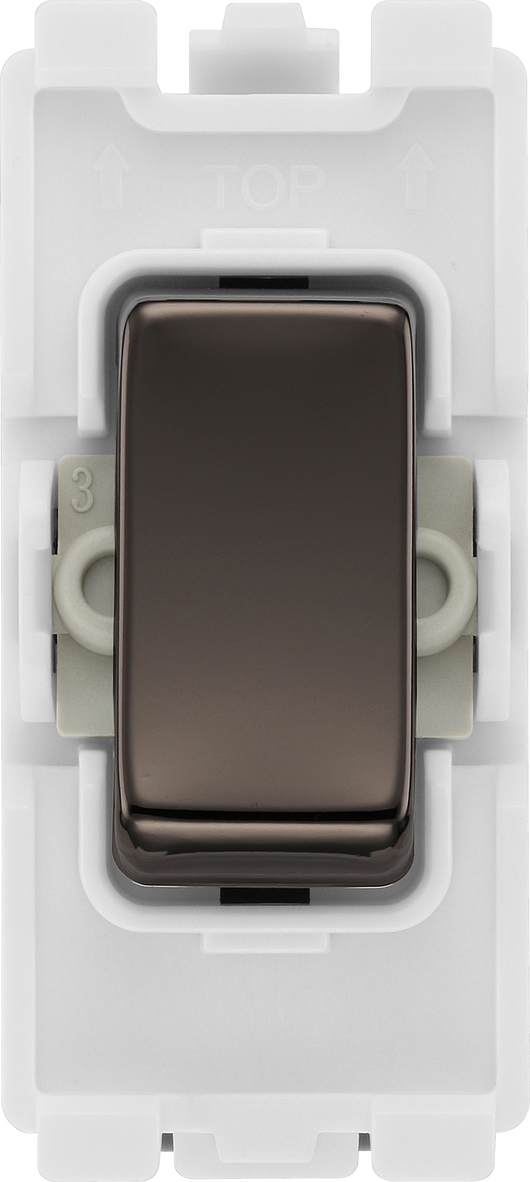

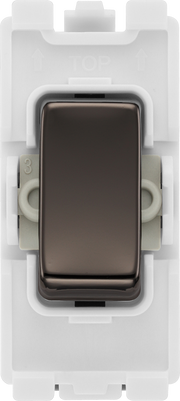

The BG Electrical Nexus Grid RBN12 is a black nickel single-pole 2-way switch module, rated at 20AX.

A versatile switch module, the RBN12 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.

To aid installation, the RBN12 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
